16 Series, Model - 2816 4WD

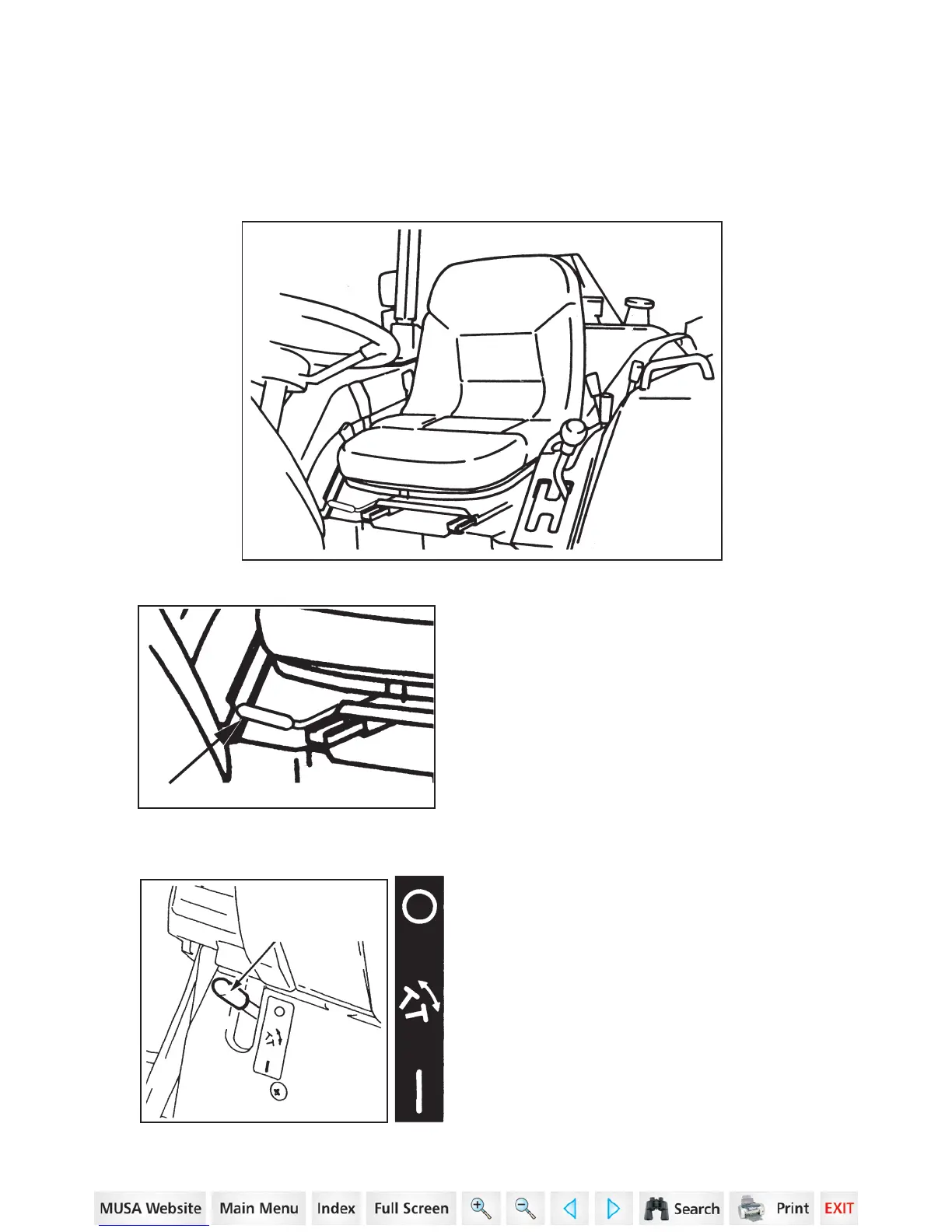

SEAT ADJUSTING LEVER
OPERATORS SEAT
The seat can be adjusted in 5 fore/aft positions by the lever located
under the RH side of the seat.
The seat is adjustable fore and aft by moving a lever.
1. Move the lever upward.
2. Move the seat rearward or forward
to the required position then re-
lease the lever.
3. Push the seat rearward to make
s
ure that the lock is engaged
.
STEERING COLUMN TILT
The steering wheel angle can be
adjusted in three positions by the lever
located und
er the steering column.
To adjust the position of the steering
wheel, use f
ollowing procedure.
1. Move
the lever fully downward to
disengage the latch from the
column.
2. Move the steering wheel rearward
or forward to the required position,
then return the lever upward to lock
the steering column.
3. Make sure that the lock is en-
gaged.
STEERING
COLUMN TILT
LEVER
41
INSTRUMENTS /CONTROLS ______________________________________________
