16 Series, Model - 2816 4WD
REMOTE HYDRAULIC CONTROL VALVE
(IF EQUIPPED)

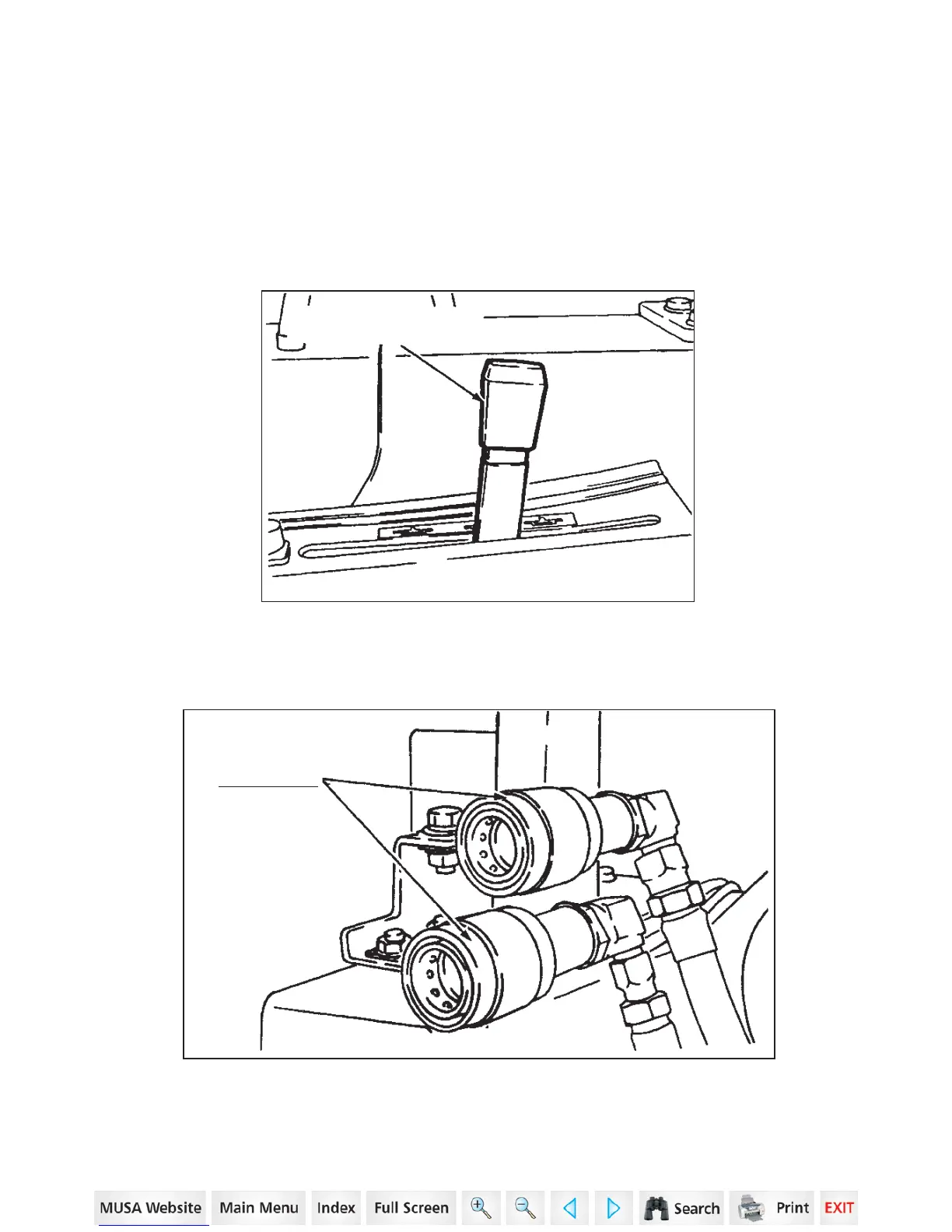

A double acting remote hydraulic control valve with a “float position”, is
available from your Dealer or Factory Installed.
If equipped, the control lever is located on the right side.
REMOTE HYDRAULIC
CONTROL LEVER
Connect the implement hoses to the remote hydraulic couplers so that
the implement lowers when the control lever is pushed forward and
raises when the lever is pulled rearward. Switch the hoses if the imple-
ment works in the opposite way.
HYDRAULIC
COUPLERS
72
FIELD OPERATION ____________________________________________________
