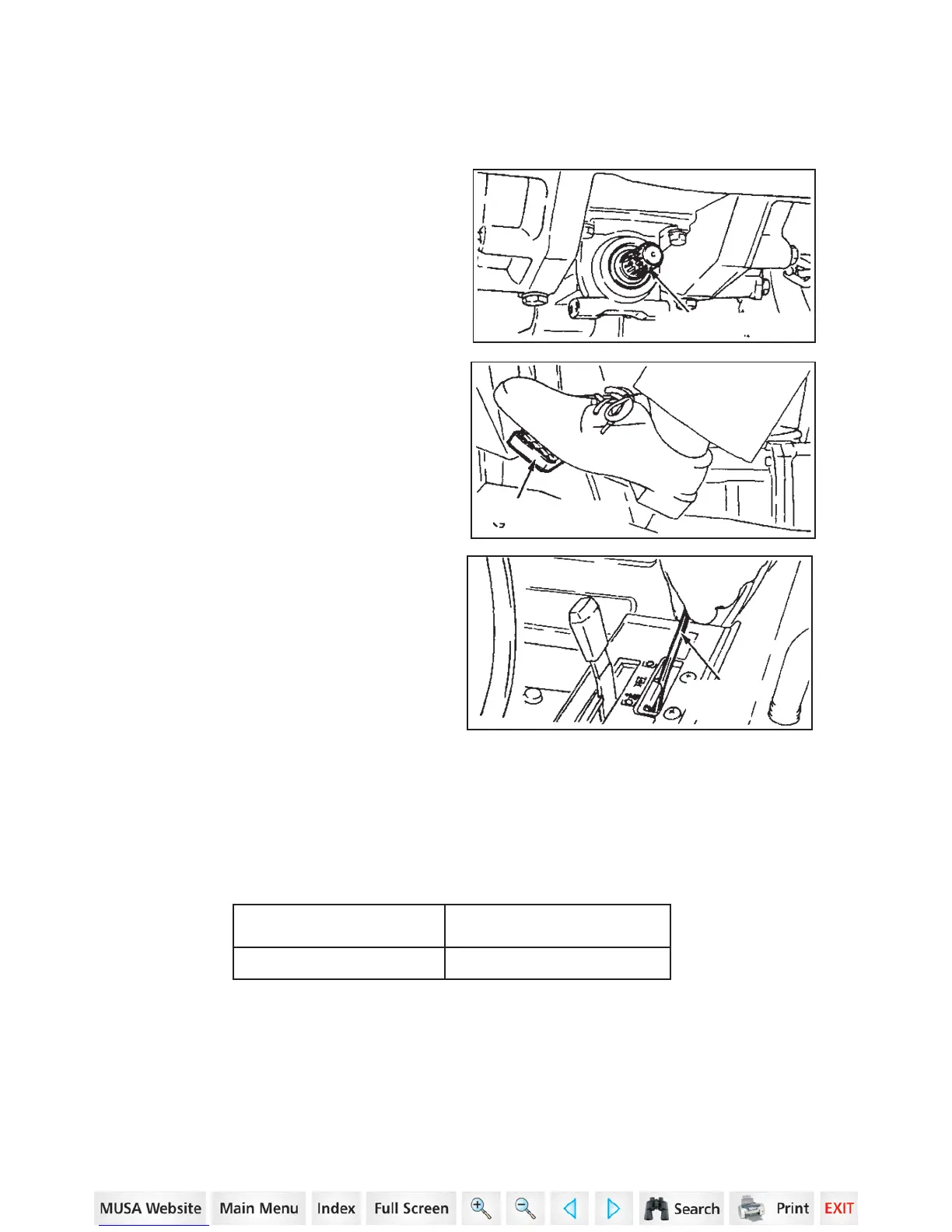

16 Series, Model - 2816 4WD
Mid PTO (OPTION)
The Mid PTO has a 25.4 mm (1
inch) diameter 15 spline output
shaft.
ENGAGE THE MID PTO AS
FOLLOWS:
1. Push the clutch pedal fully.
2. Move the Mid PTO control
lever forward.
3. Release the clutch pedal slow-
ly.
DISENGAGE THE MID PTO AS
FOLLOWS:
1. Push the clutch pedal fully.
2. Move the Mid PTO control
lever to the OFF (Engine Start)
slot.
NOTE: Keep the Mid PTO
control lever in the OFF (Engine
Start) slot when starting the en-
gine and when the PTO is not being used
3. Release the clutch pedal.
The following table shows the required engine speed to get the required
Mid PTO output shaft speed.
MID PTO SHAFT
CLUTCH PEDAL
MID PTO
LEVER
Mid PTO Output
Shaft Speed
2000 RPM
Required
Engine Speed
2632 RPM
55
OPERATING INSTRUCTIONS
