16 Series, Model - 2816 4WD
Fan Belt Replacement
To replace the fan belt, use following procedure:
Raise the hood. Remove the LH
side cover.
Loosen the alternator adjusting
bolt.
Install new fan belt and adjust the
belt tension. See Fan Belt Adjust-
ment in this manual for instruc-
tions.
Loosen the alternator pivot nut
and push the alternator toward
the
engine to remove the belt.

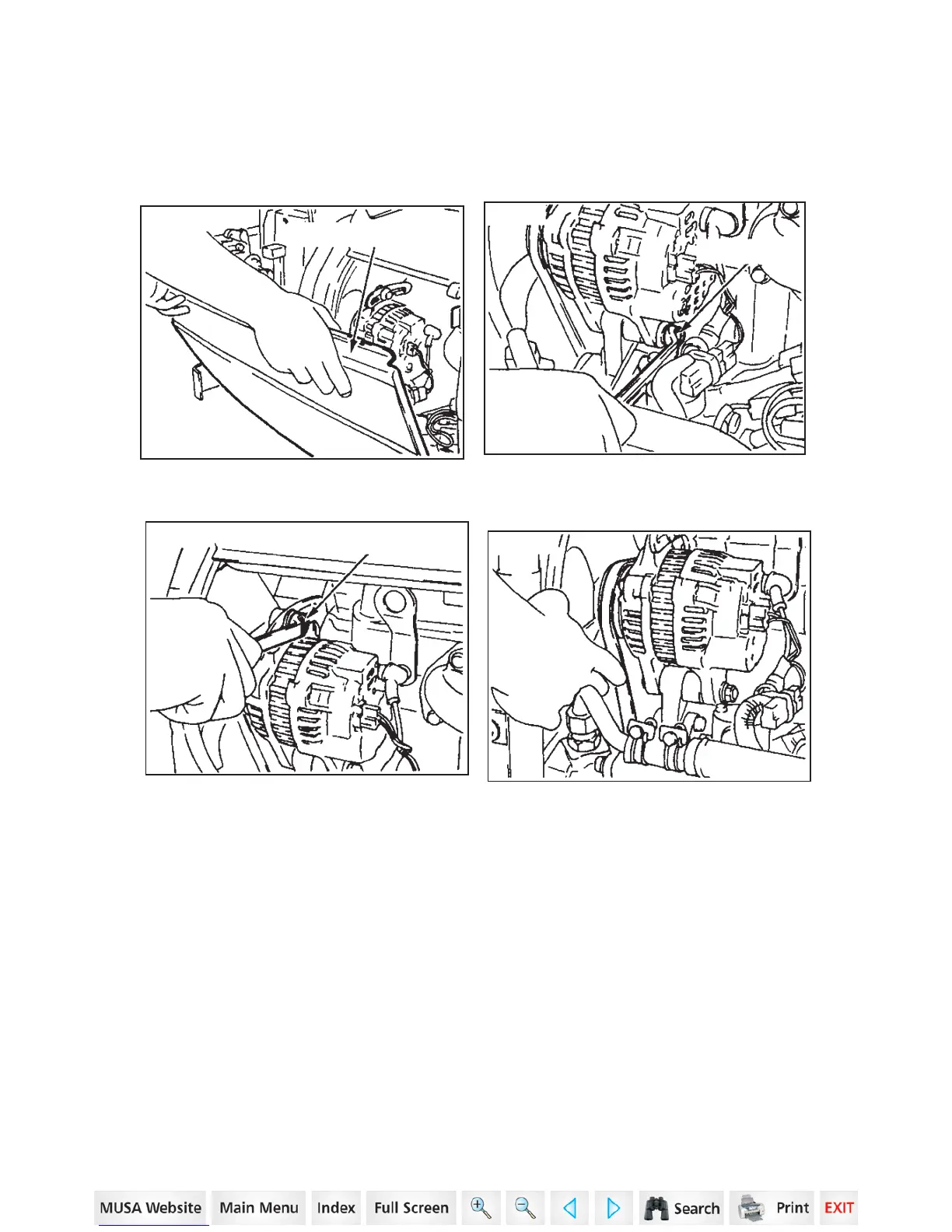

STEP 1
L.H. SIDE COVER
STEP 3
PIVOT NUT
STEP 2
ADJUSTING BOLT
STEP 4
116
MAINTENANCE/ADJUSTMENTS
