Mahindra '16' Series - ROPS Folding Procedure Steps 5-10

16 Series, Model - 2816 4WD

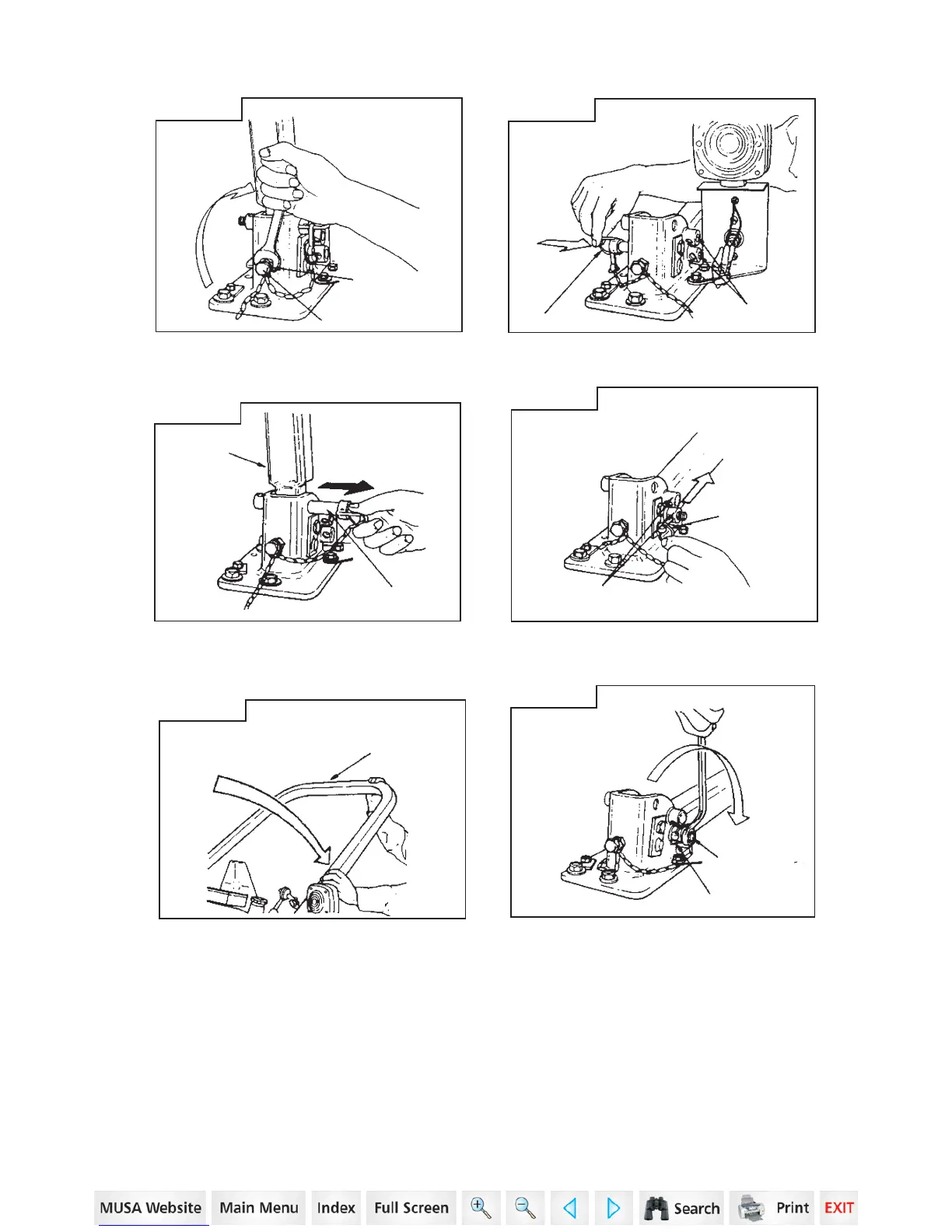

Tighten the jam nut on the lock
bolts to a torque of 33 to 40 lb.ft
(44 to 54 N.m).
Install the position pins.
While holding the ROPS bar,
CAREFULLY remove the position
pins.
Install the lock pins.
CAREFULLY move the ROPS
bar t
o the desired position.
Install lock nuts and tighten to a
torque of 33 to 40 lb ft (44 to 54
Nm).
NOTE: The lock nuts can be
omitted for operator conven-
ience, if the ROPS is folded fre-
quently.
When the low clearance tractor operation is completed, return the ROPS
to the secu
red upright position.
STEP 9
STEP 7
STEP 10
LOW CLEARANCE
POSITIONS
POSITION PIN
JAM NUT
LOCK BOLT
STEP 5
LOCK PIN
LOW CLEARANCE
POSITIONS
STEP 6
ROPS BAR
POSITION PIN
ROPS BAR
TO THE LOW POSITION
LOCK NUT
LOCK PIN
STEP 8
14
SAFETY/DECALS_______________________________________________________
