Mahindra '16' Series User Manual

16 Series, Model - 2816 4WD

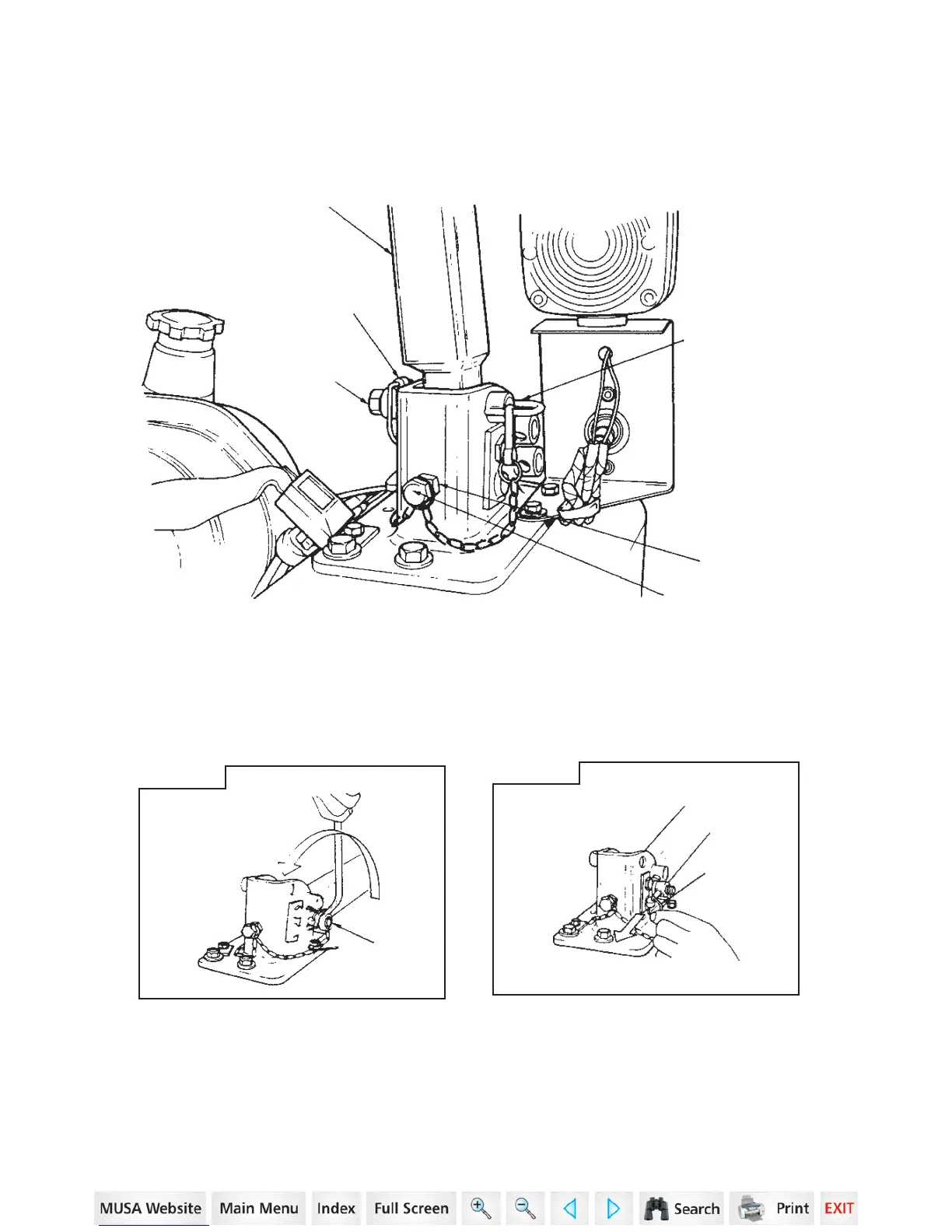

ROPS BAR
(NORMAL OPERATING POSITION)
LOCK PIN
POSITION PIN
JAM NUT
LOCK BOLT
LOCK NUT
For normal operation, the ROPS must be in the secured upright position
Place
t he tractor on level ground, put the range shift lever in the L
positio
n, apply the park brake and stop the engine.
STEP 1
Remove the lock nuts.
Remove the lock pins.
LOCK PIN
LOCK NUT
STEP 2
Securing the ROPS in the Upright Position
15
