Mahindra '16' Series User Manual

16 Series, Model - 2816 4WD

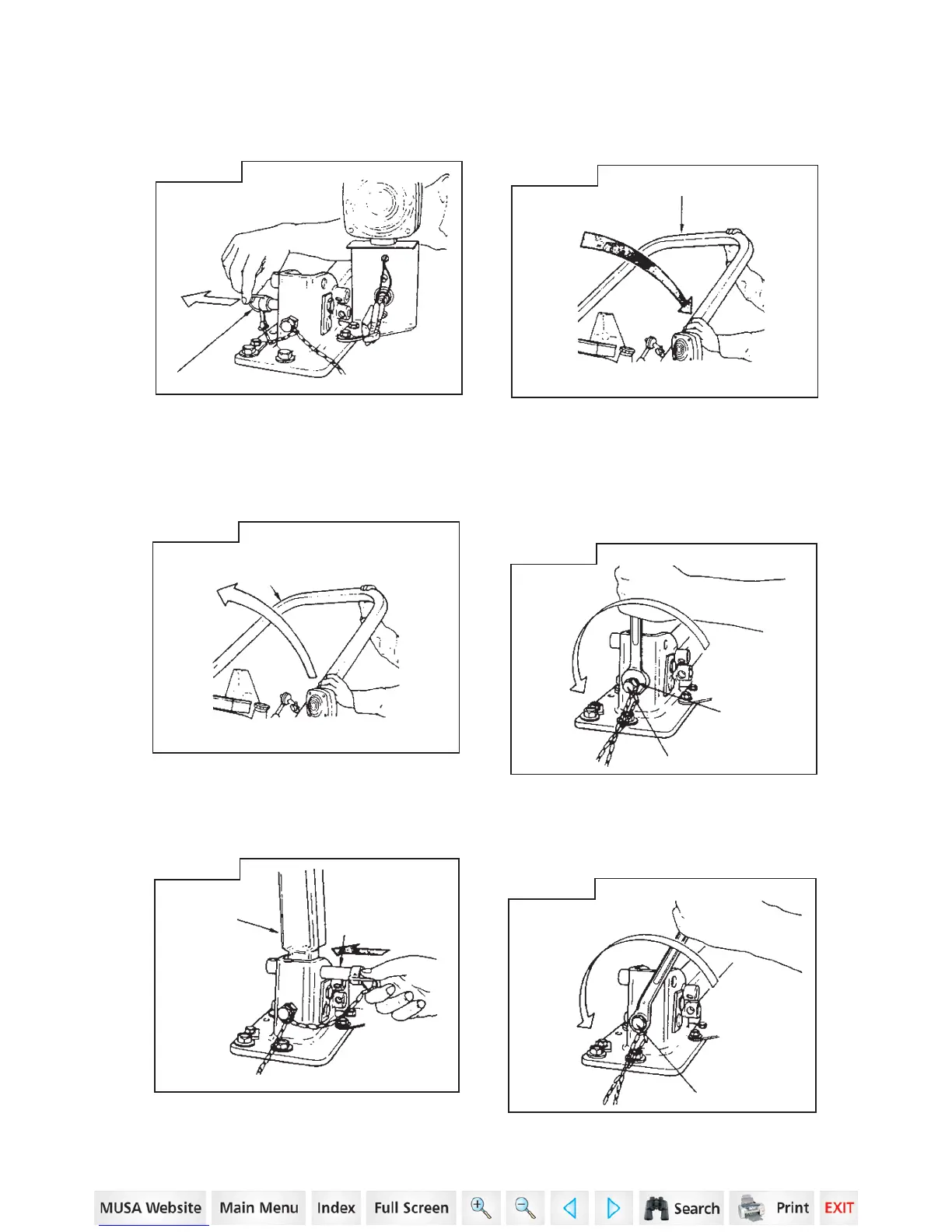

ROPS BAR
CAREFULLY raise the ROPS bar
to the upright position.
While holding the ROPS bar,
CAREFULLY remove the position
pins.
Install the position pins. If both
pins can be installed, continue to
STEP 10.
STEP 3
POSITION PIN
STEP 6
If the position pins cannot be
installed, CAREFULLY lower the
ROPS bar to the horizontal
position.
STEP 4
STEP 7
TO THE UPRIGHT POSITION
Loosen the lock bolts.
Loosen the jam nut on the lock
bolts.
LOCK BOLT
STEP 5
STEP 8
JAM NUT
LOCK BOLT
POSITION PIN
ROPS BAR
ROPS BAR
16
