Mahindra '16' Series User Manual

16 Series, Model - 2816 4WD
ROPS BAR
LOCK PIN
LOCK NUT
TO THE UPRIGHT POSITION
STEP 9
STEP 10
ROPS BAR
ROPS BAR
POSITION PIN

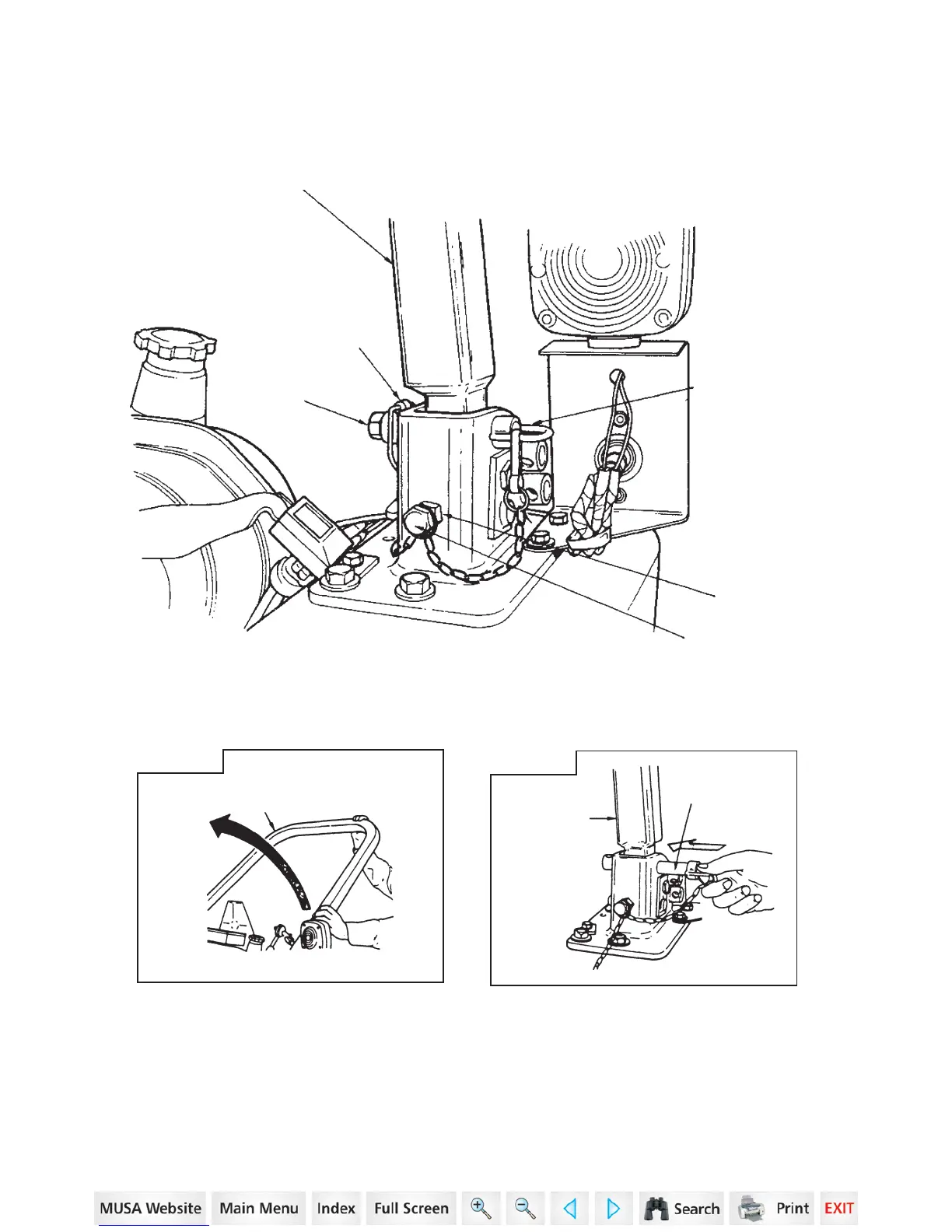

CAREFULLY move the ROPS
bar to the upright position.
Install the position pins. Align the
holes of the position pins and
ROPS brackets so that the lock
pins can be installed easily.
POSITION PIN
JAM NUT
LOCK BOLT
(NORMAL OPERATING POSITION)
17
