16 Series, Model - 2816 4WD
The pointer is in this area when the engine is cool
before and immediately after starting. Run the
engine at 1500 RPM without load until the pointer
indicates the green area.
The pointer is in this area when the coolant
temperature is proper during engine operation.
If the engine overheats, the pointer moves right
into this area.
In this case run the engine at 1500 RPM without
load until the pointer indicates the green area. If
the pointer still stays in the red area after three to
five minutes, stop the engine immediately and
check for the cause.
3. FUEL GAUGE – The meter shows how much fuel is in the tank. Fuel
level is shown by three positions.
............. Fuel is needed.
Fuel tank is half
filled with fuel.
............. Fuel tank is full.
NOTE: The pointer can be in any po-
sition when the starter key switch is
in the OFF position. To get a fuel level
indication, turn the starter key switch
to the ON position.
4. TURN SIGNAL INDICATORS – The LH indicator on the TACHO-
METER will operate when the turn
signal switch is turned to the left.
The RH indicator will operate when
the switch is turned to the right.
Both indicators will operate ON and
OFF when Hazard switch is pushed
down.

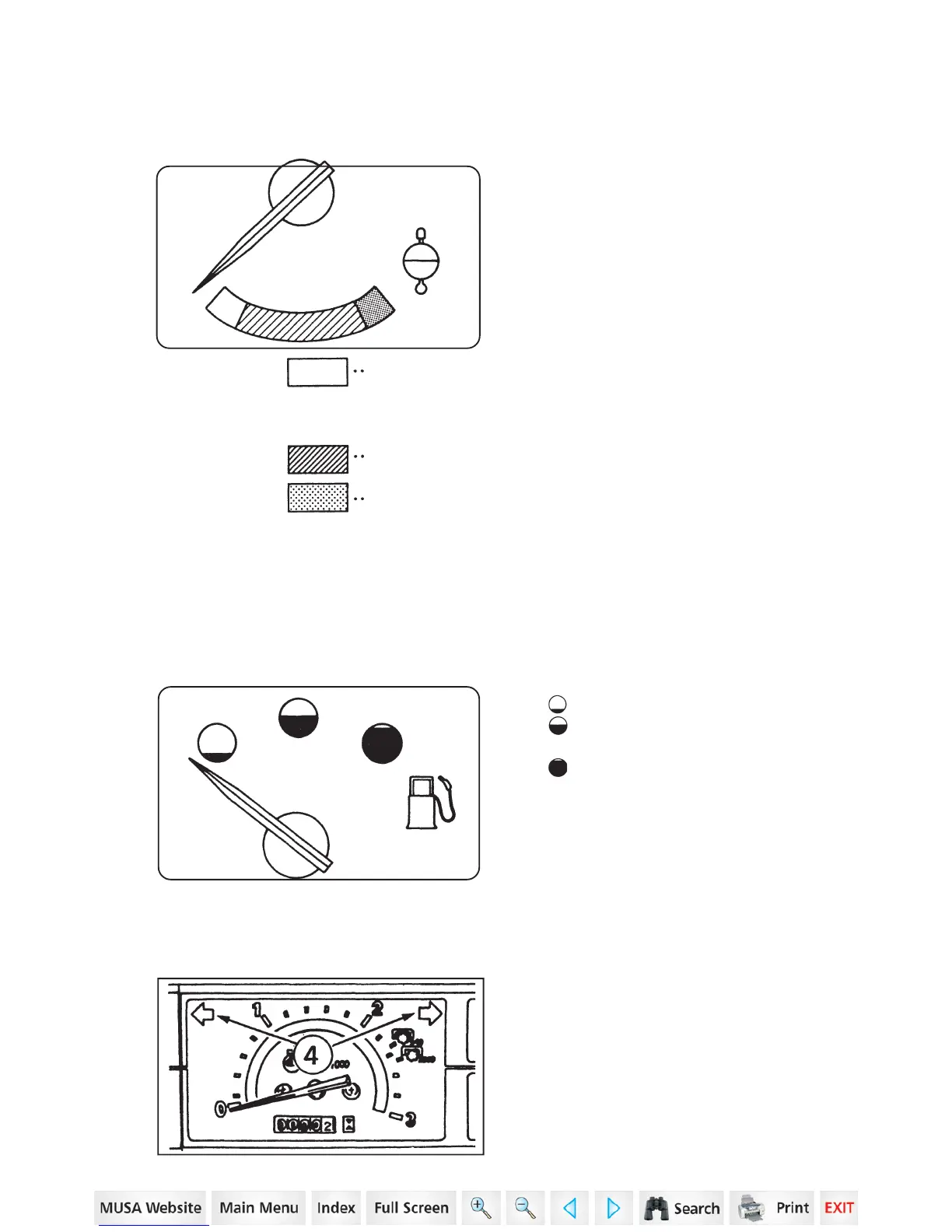

2. ENGINE COOLANT TEMPERATURE GAUGE – The gauge indicates
the coolant temperature when the
starter key switch is in the ON posi-
tion.
The gauge has a yellow area, green
area and red area:
Yellow area
Green area
Red area
26
INSTRUMENTS /CONTROLS ______________________________________________
