12.6.3 TPMS Sensor Installation
1. Line the sensor up with the rim hole and attach the TTV
insertion tool to the end of the valve ready for pull in
2. Ensure the TTV insertion tool is positioned to the correct notch
and that the sensor is pulled through in a direction parallel to
the valve whole axis and NOT at an angle to it

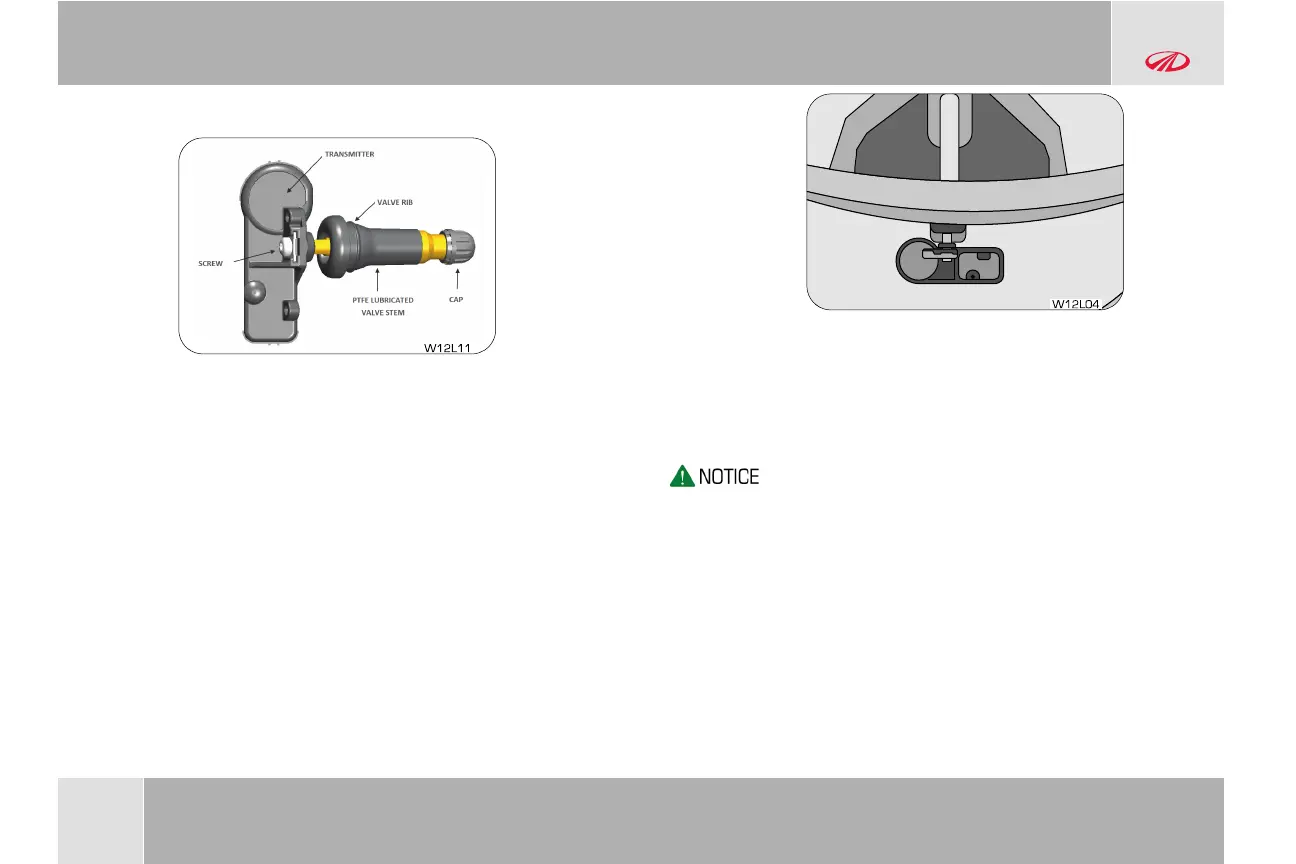

3. The picture below shows a correctly fitted sensor. Note the
rubber bulb of the valve resting against the rim and the front
face of the enclosure is NOT touching the rim. Apply tyre soap
solution to the rubber portion of the valve stem and the top of
the enclosure
4. Place the inner tyre bead over the rim
5. Place the outer tyre bead over the rim
6. Inflate all tyres to the prescribed pressure, check the valve
area for leakage and re-balance the wheels prior to installing
back on the vehicle
Starting to mount the tyre from the valve location is a wrong
fitment. The fixing tool/stem may hit the sensor and damage it.
Start from the opposite direction.
12.6.4 TPMS Sensor Removal
1. Remove the tyre from the rim
2. To remove the sensor, firstly remove the screw using a T10
TORX screwdriver
