29

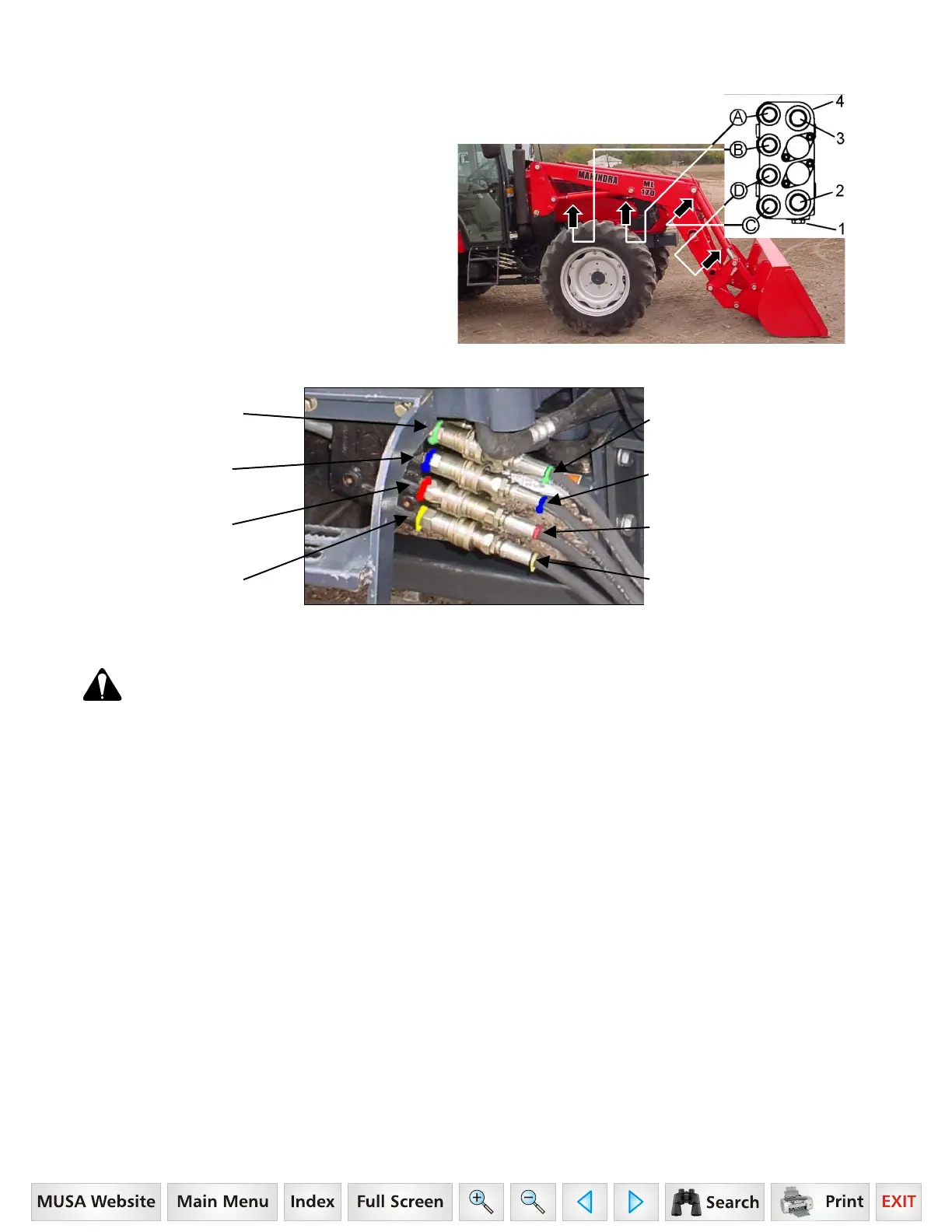

3.5. CONNECT HYDRAULICS
3.5.1. Verify all working port hose connections.
(C) Connect Port "C" to Tilt Cylinder Base End
(D) Connect Port "D" to Tilt Cylinder Rod End
(B) Connect Port "B" to Lift Cylinder Rod End
(A) Connect Port "A" to Lift Cylinder Base End
(1) "PBY" Power Beyond Port.
(2) "OUT" Return Port.
(3) "IN" Pressure Port.
(4) Loader Valve.
3.5.2. Using color nylon ties, install one on each quick coupler fitting. These color ties will allow easy identification
of loader circuits when mounting and dismounting loader.
Port "A" – Green Tie
Lift Cylinder Base End
Port "B" – Blue Tie
Lift Cylinder Rod End
Port "D" – Red Tie
Tilt Cylinder Rod End
Port "C" – Yellow Tie
Tilt Cylinder Base End
Port "A" – Green Tie
Lift Cylinder Base End
Port "B" – Blue Tie
Lift Cylinder Rod End
Port "D" – Red Tie
Tilt Cylinder Rod End
Port "C" – Yellow Tie
Tilt Cylinder Base End
IMPORTANT: Valve Port "C" must be connected to Tilt Cylinder Base End port and Valve Port "D" must
be connected to Tilt Cylinder Rod End port or else Regen Function of Valve will not work correctly.
CAUTION: When properly installed, the external valve handle will control loader hydraulic circuits
as described in Item 4.4, page 32.
