58
15. REMOVING BUCKET OR ATTACHMENT
FROM PIN ON QUICK ATTACH
CAUTION: Before leaving the tractor seat, stop the engine and lock brakes when installing or
removing bucket or attachment.
CAUTION: Do not stand, walk, or work under a raised loader or attachment unless it is securely
blocked or held in position. Accidental movement of valve handle/handles or leaks in the
hydraulic system could cause the loader to drop, or attachment to dump, causing severe injury.
15.1. OPERATING INSTRUCTIONS

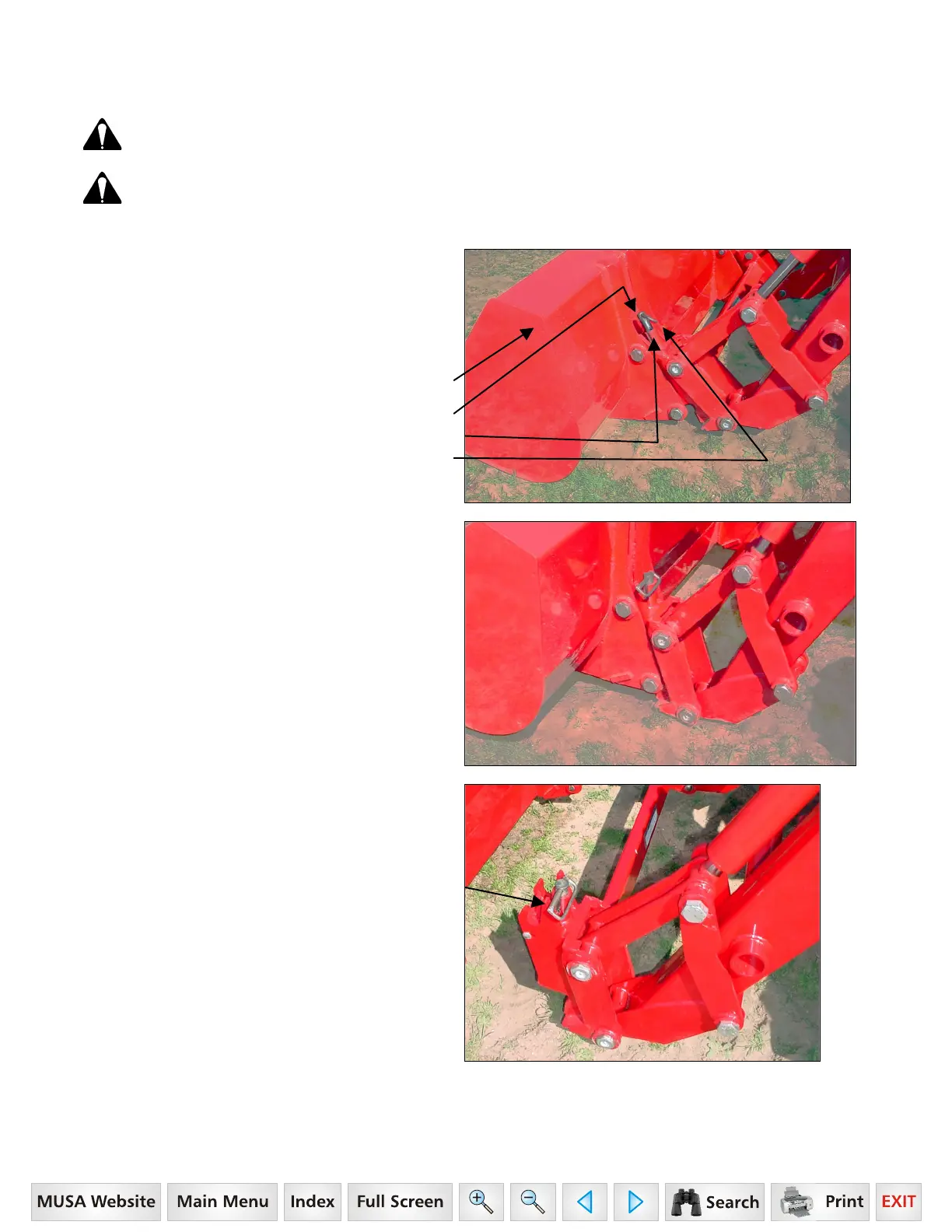

15.1.1. To disconnect bucket or attachment from
loader, position bucket or attachment slightly rolled
back and approximately 1" off of ground. Pull up on
pin handle until spring pin is above top bushing
surface. Rotate pin assembly slightly. Flip handle
forward. Repeat for other side.
Bucket or Attachment – rolled slightly back.
Pin Assembly – pull up and rotate.
Spring Pin – resting on top edge of bushing.
Handle – Flip Forward.
15.1.2. Roll bucket or attachment forward and lower
to ground. Back loader away from bucket or
attachment.
NOTE: Over extension of tilt cylinders during this
operation could cause damage to Pin On Quick
Attach handle due to handle contacting bucket or
attachment.
15.1.3. Position pin assembly into the engaged
position by pulling up on handle and rotating pin
assembly so the spring pin is located in bushing slot.
Repeat for other side.
Pin Assembly – Rotate pin
assembly so that spring pin is
fully engaged in bushing slot.
