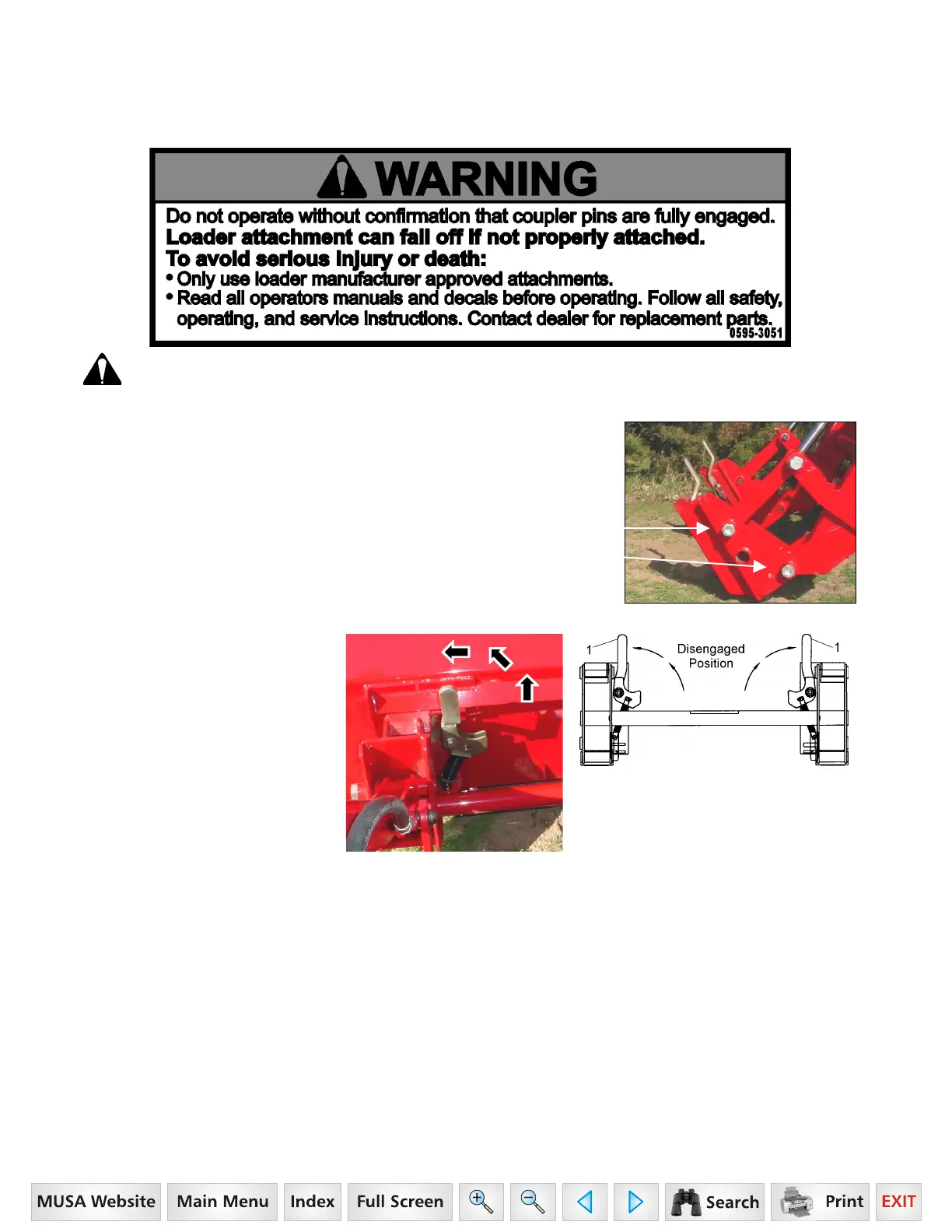

18. INSTALLATION & OPERATION OF
SKID STEER TOOL CARRIER SYSTEM
IMPORTANT: Read safety information in this section and on decal before operating attachment.
WARNING: Always read and follow operating instructions before operating Skid Steer Tool Carrier
System.
18.1. INSTALLATION INSTRUCTIONS
IMPORTANT: Do not extend bucket cylinders without Skid Steer Tool
Carrier installed on loader. Failure to follow these instructions could
cause loader damage and void warranty.
18.1.1. Install Skid Steer Tool Carrier to loader. Secure as shown.
Top Pin 1-1/8" x 7.01" and E-Clip, 1 place each side.
Bottom Pin 1-1/8" x 7.01" and E-Clip, 1 place each side.
18.2. SKID STEER TOOL CARRIER HANDLES IN DISENGAGED POSITION
18.2.1. To position handles into the
handle disengaged position, pull
skid steer tool carrier handle
upward.
Pull Handles
Upward
(1) Handles disengaged position.
