53

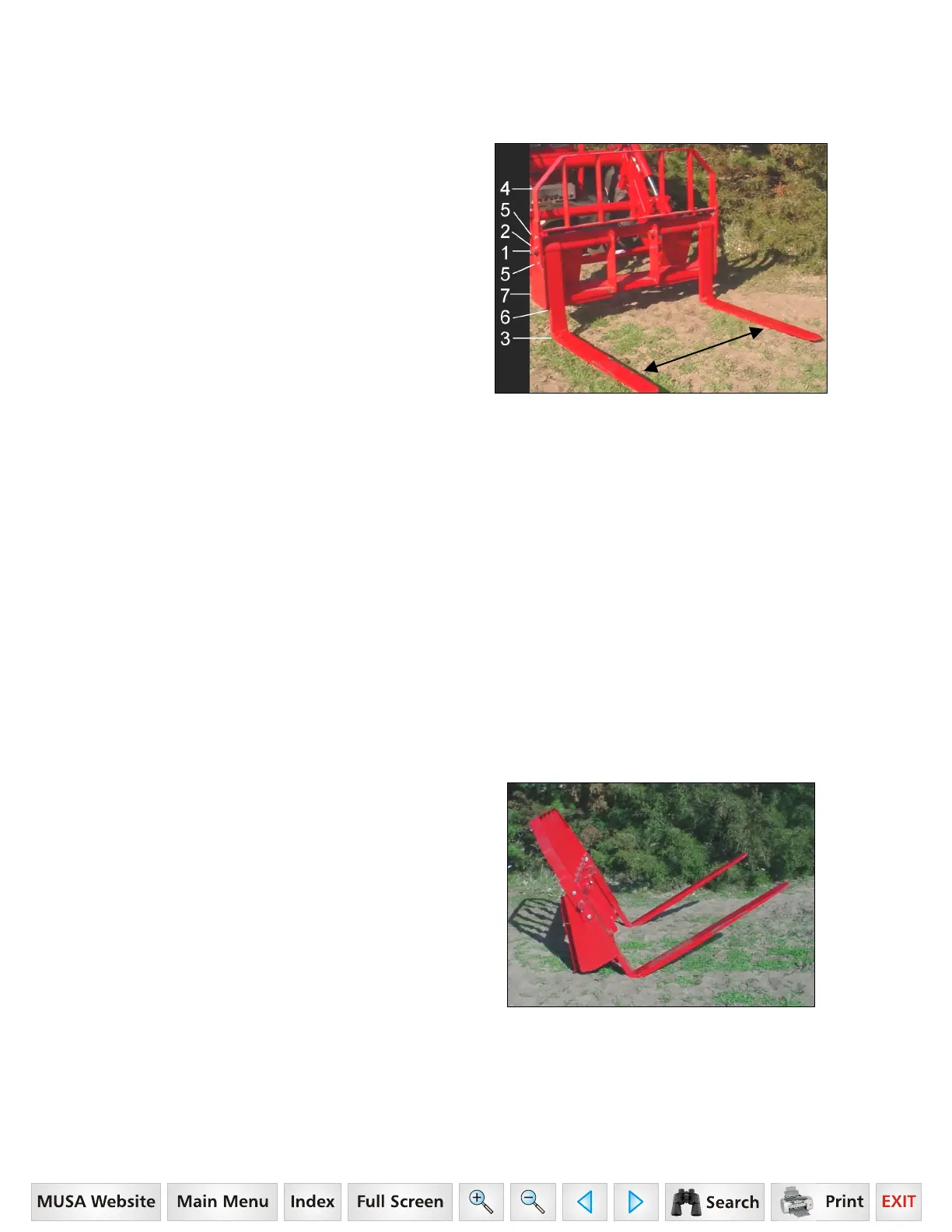

12.1. PIN ON PALLET FORK
12.1.1. The Pin On Pallet Fork has two tines each 1-1/2" x 4" x 42".
12.2. ASSEMBLY INSTRUCTIONS
12.2.1. Install (4) guard to (7) pallet fork frame using
(5) 1-2" x 1-1/2" bolt, lockwasher, flatwasher, and nut,
2 places each side.
12.2.2. Install (3) forks to (7) pallet fork frame using
(1) pins, 2 places secure using (2) 3/8" x 2-1/2" bolts,
lockwashers, and nuts, 4 places.
12.2.3. Locate (6) hooks on (3) forks on backside of
angle to prevent fork rotation.
12.3. INSTALLATION INSTRUCTIONS PIN ON QUICK ATTACH
IMPORTANT: Refer to Pages 55 to 57 for instructions concerning Installing Attachment to Pin On Quick
Attach.
IMPORTANT: Refer to Page 58 for instructions concerning Removing Attachment from Pin On Quick
Attach.
12.4. INSTALLATION INSTRUCTIONS DIRECT TO LOADER
12.4.1. Install pin on bale spear direct to loader. Secure using pins and e-clips.
Top Pin 1-1/8" x 7.01" and E-Clip, 1 place each side.
Bottom Pin 1-1/8" x 7.01" and E-Clip, 1 place each side.
12.5. OPERATING INSTRUCTIONS
The operator must keep the load centered and as far back on the forks as possible. Operator must always keep
load level. Carry the load low and at a slow speed.
12.6. PARKING INSTRUCTIONS
If parking loader from tractor with pallet fork attachment, move forks outward to widest position (see photo above).
NOTE: Move Forks outward to Widest Position
12.7. PARKING STABILITY
If parking pallet fork off of loader, store as shown at
right for stability.
