67

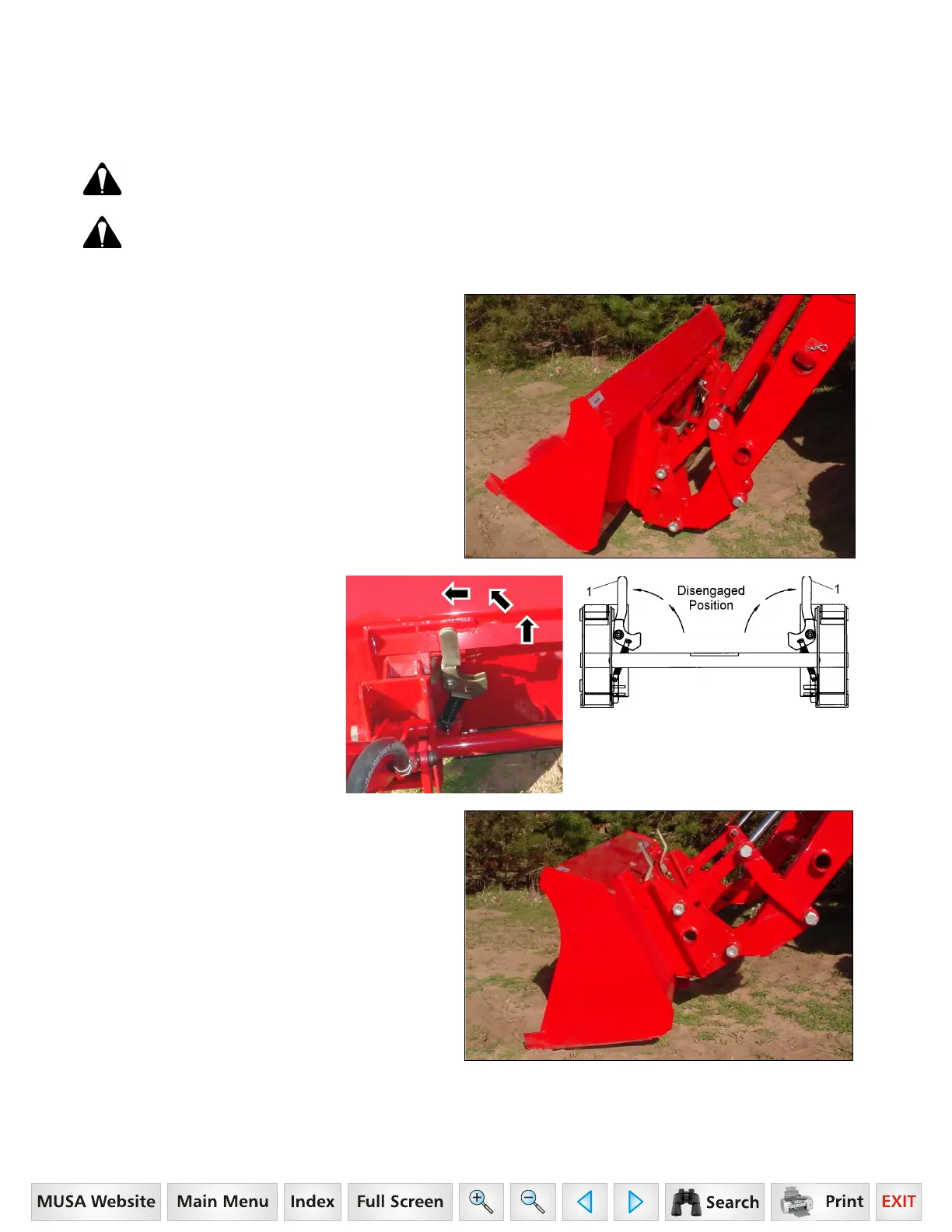

20. REMOVING BUCKET OR ATTACHMENT
FROM SKID STEER TOOL CARRIER
IMPORTANT: Refer to Pages 62 to 63 for instructions concerning Skid Steer Tool Carrier Handles
Disengaged and Engaged Positions.
CAUTION: Before leaving the tractor seat, stop the engine and lock brakes when installing or
removing bucket or attachment.
CAUTION: Do not stand, walk, or work under a raised loader or attachment unless it is securely
blocked or held in position. Accidental movement of valve handle/handles or leaks in the
hydraulic system could cause the loader to drop, or attachment to dump, causing severe injury.
20.1. OPERATING INSTRUCTIONS
20.1.1. To disconnect bucket or attachment from
loader, position bucket or attachment slightly rolled
back and approximately 1" off of ground.
20.1.2. To position handles into the
handle disengaged position, pull
skid steer tool carrier handle
upward.
Pull Handles
Upward
(1) Handles disengaged position.
20.1.3. Roll bucket or attachment forward and lower
to ground. Back loader away from bucket or
attachment.
NOTE: Over extension of tilt cylinders during this
operation could cause damage to Skid Steer Tool
Carrier handle due to handle contacting bucket or
attachment.
20.1.4. If removing an attachment utilizing a third cylinder hydraulic circuit, disconnect loader hose quick couplers
from attachment quick couplers. Secure and store loader hoses on loader frame.
To Next Page
