23.1. SKID STEER PALLET FORK
23.1.1. The Skid Steer Pallet Fork has two tines each 1-1/2" x 4" x 42".

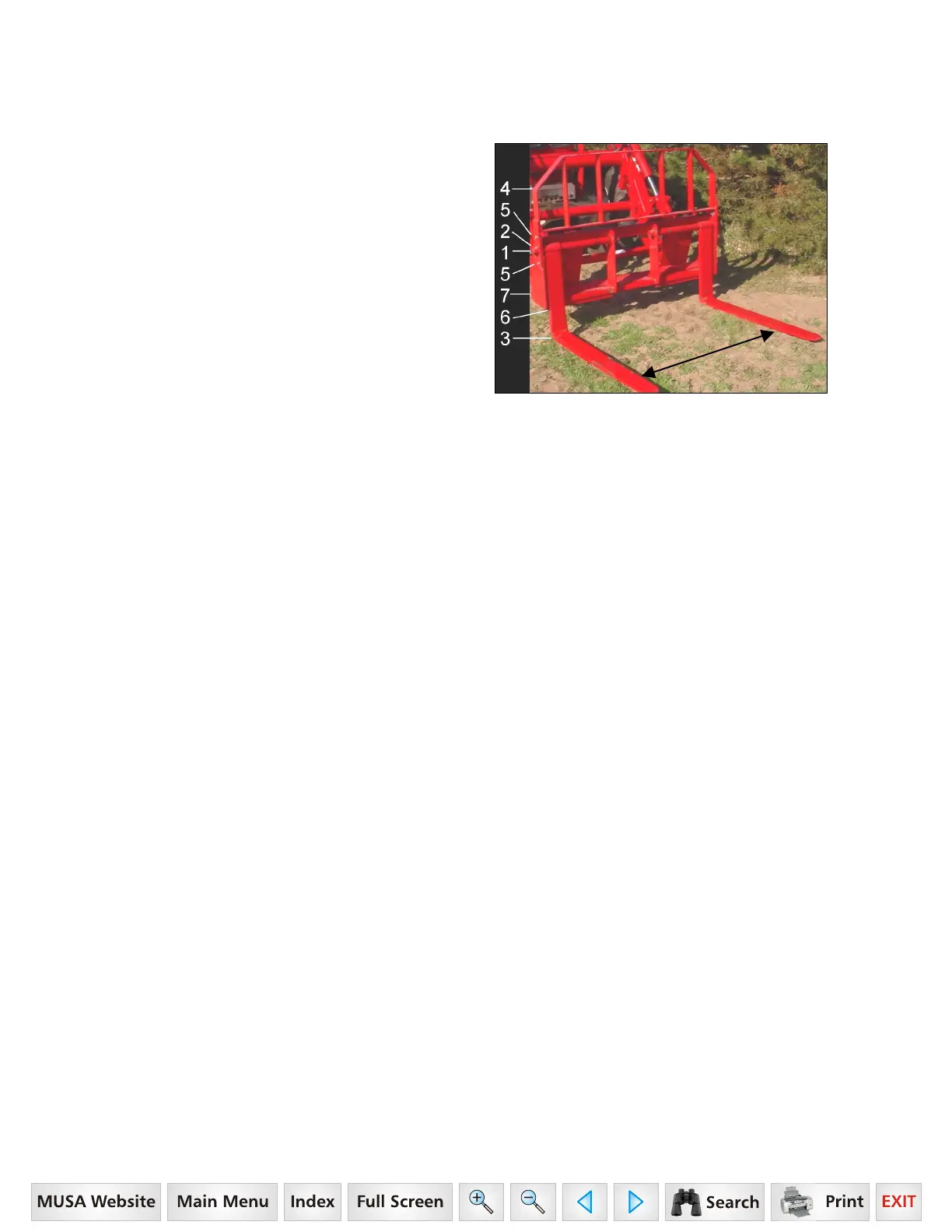

23.2. ASSEMBLY INSTRUCTIONS
23.2.1. Install (4) guard to (7) pallet fork frame using
(5) 1-2" x 1-1/2" bolt, lockwasher, flatwasher, and nut,
2 places each side.
23.2.2. Install (3) forks to (7) pallet fork frame using
(1) pins, 2 places secure using (2) 3/8" x 2-1/2" bolts,
lockwashers, and nuts, 4 places.
23.2.3. Locate (6) hooks on (3) forks on backside of
angle to prevent fork rotation.
23.3. INSTALLATION INSTRUCTIONS TO SKID STEER TOOL CARRIER
IMPORTANT: Refer to Pages 64 to 66 for instructions concerning Installing Attachment to Skid Steer Tool
Carrier.
IMPORTANT: Refer to Page 67 for instructions concerning Removing Attachment from Skid Steer Tool
Carrier.
23.4. OPERATING INSTRUCTIONS
The operator must keep the load centered and as far back on the forks as possible. Operator must always keep
load level. Carry the load low and at a slow speed.
23.5. PARKING INSTRUCTIONS
If parking loader from tractor with pallet fork attachment, move forks outward to widest position (see photo above).
NOTE: Move Forks outward to Widest Position
