10. PIN ON BUCKET
IMPORTANT: Read safety information in this section and on decals before operating attachments.
WARNING: To avoid serious injury or death from large round or square hay bale handling:
•
Use only Factory bale spear or bale retaining device handler attachment when handling round
bales.
•
Do not handle large square bales without a retaining device handler attachment
•
Do not use buckets, forks, or other attachments without bale retaining devices.
•
Do not use loader for handling large, heavy objects such as logs, tanks, etc.
WARNING: To avoid serious injury or death, realize handling large heavy objects can be extremely
dangerous due to:
•
Danger of rolling the tractor over.
•
Danger of upending the tractor.
•
Danger of the object rolling or sliding down the loader arms onto the operator.
WARNING: To avoid serious injury or death:
•
Do not lift or carry anyone on buckets, forks, probes, or any other portion of the loader or
loader attachments.
•
Avoid contact with electrical power lines by loader or attachment
WARNING: Inadvertent movement of the loader or attachment could result in serious injury or
death.
10.1. INSTALLATION INSTRUCTIONS TO PIN ON QUICK ATTACH
IMPORTANT: Refer to Pages 55 to 57 for instructions concerning Installing Attachment to Pin On Quick
Attach.
IMPORTANT: Refer to Page 58 for instructions concerning Removing Attachment from Pin On Quick
Attach.
10.2. INSTALLATION INSTRUCTIONS DIRECT TO LOADER

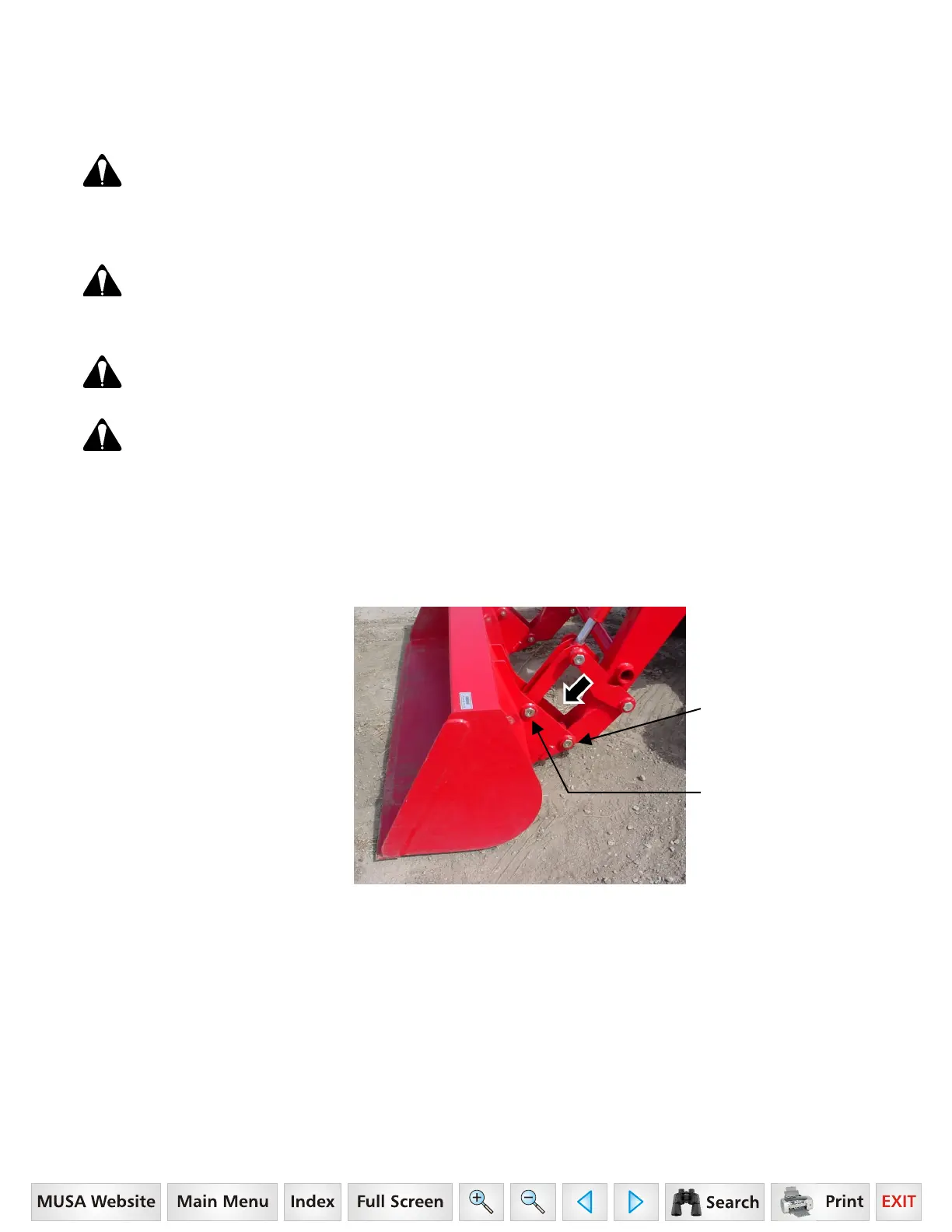

10.2.1. Install pin on bucket direct
to loader. Secure using pins and
e-clips.
NOTE: Clean arrow area
of all material if
build up occurs
during operation.
Bottom Pin
1-1/8" x 7.01"
and E-Clip,
1 place each side.
Top Pin
1-1/8" x 7.01"
and E-Clip,
1 place each side.
