66

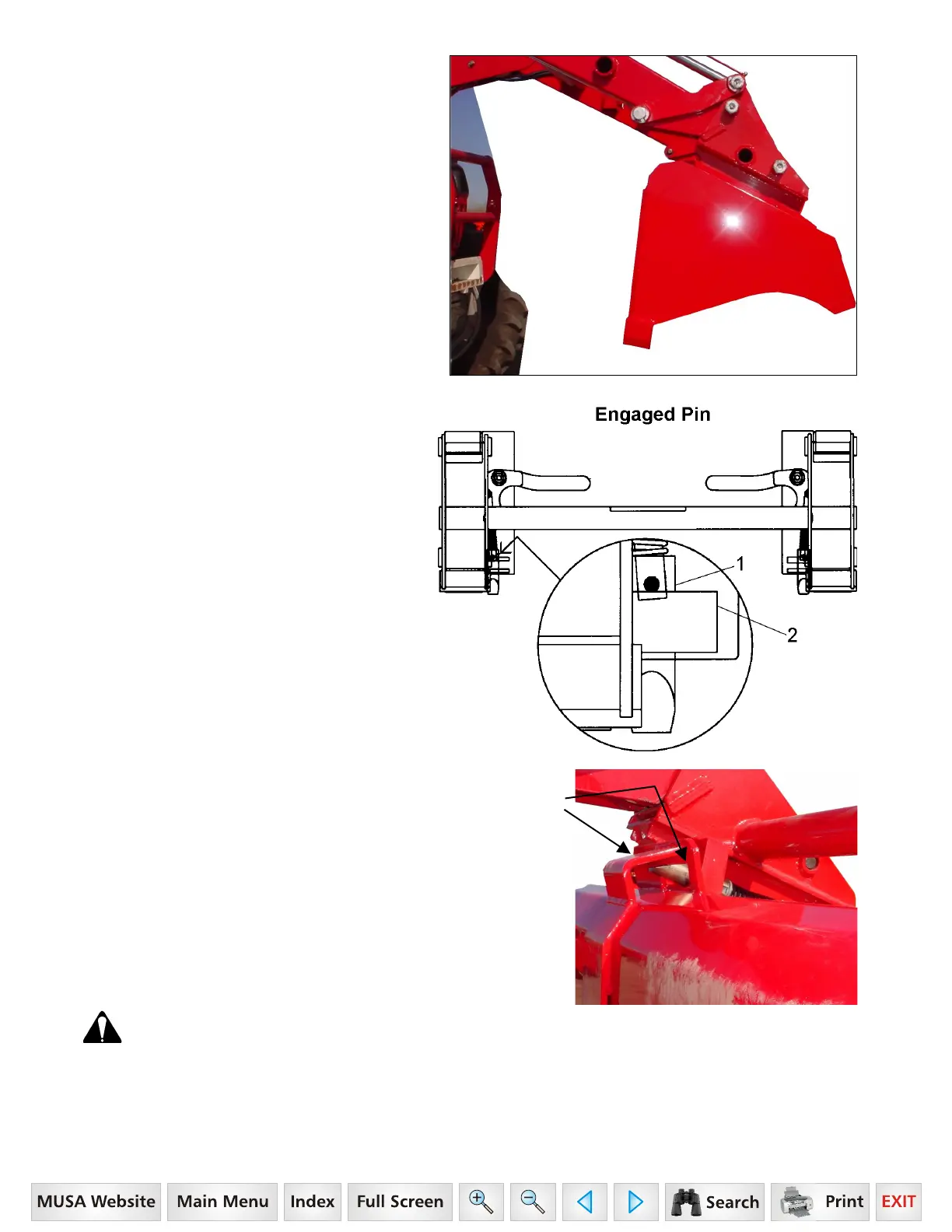

19.1.8. Check that bucket or attachment is
securely attached to Skid Steer Tool Carrier by
raising loader boom 3 to 4 feet, dumping bucket
or attachment against stops, and checking to be
sure bottom of bucket or attachment does not roll
forward away from Skid Steer Tool Carrier
Assembly.
19.1.9. Inspect Skid Steer Tool Carrier attaching
areas to verify that Skid Steer Tool Carrier pins
have engaged bucket or attachment fully.
19.1.10. Inspect Skid Steer Tool Carrier attaching
areas to verify that Skid Steer Tool Carrier pins
have engaged bucket or attachment fully.
19.1.11. Skid Steer Quick Attach (1) lower roll pin
should be contacting (2) Quick attach pin support
bar.
19.1.12. Skid Steer Quick Attach (3) pin should
be engaged into (4) bucket or attachment as
shown.
(3)
(4)
WARNING: A bucket or attachment that is not securely locked into Skid Steer Tool Carrier could
come off during loader operation causing serious injury or death.
19.1.13. If installing an attachment utilizing a third cylinder hydraulic circuit, connect loader hose quick couplers at
attachment quick couplers.
