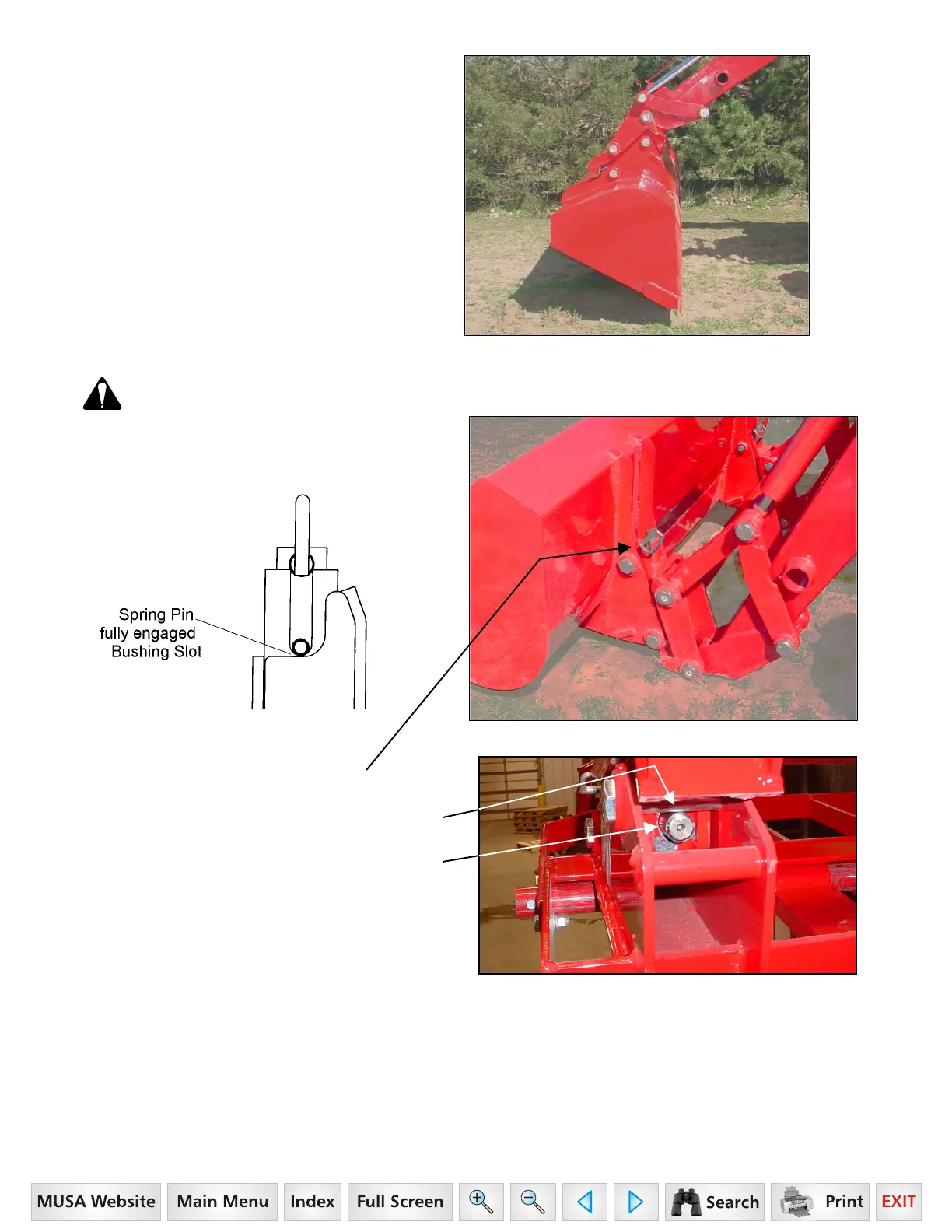

14.2.7. Check that bucket or attachment is securely
attached to pin on quick attach by raising loader
boom 3 to 4 feet, dumping bucket or attachment
against stops, and checking to be sure bottom of
bucket or attachment does not roll forward away from
pin on quick attach.
WARNING: A bucket or attachment that is not securely locked into Pin On Quick Attach could
come off during loader operation causing serious injury or death.
14.2.8. Inspect Pin On Quick Attach attaching
areas to verify that Pin On Quick Attach pins have
engaged bucket or attachment fully.
Spring Pin – fully engaged
in bushing slot.
Bucket or Attachment Lower Pin.
Pin On Quick Attach Pin Assembly
engaging bucket or attachment.
