56

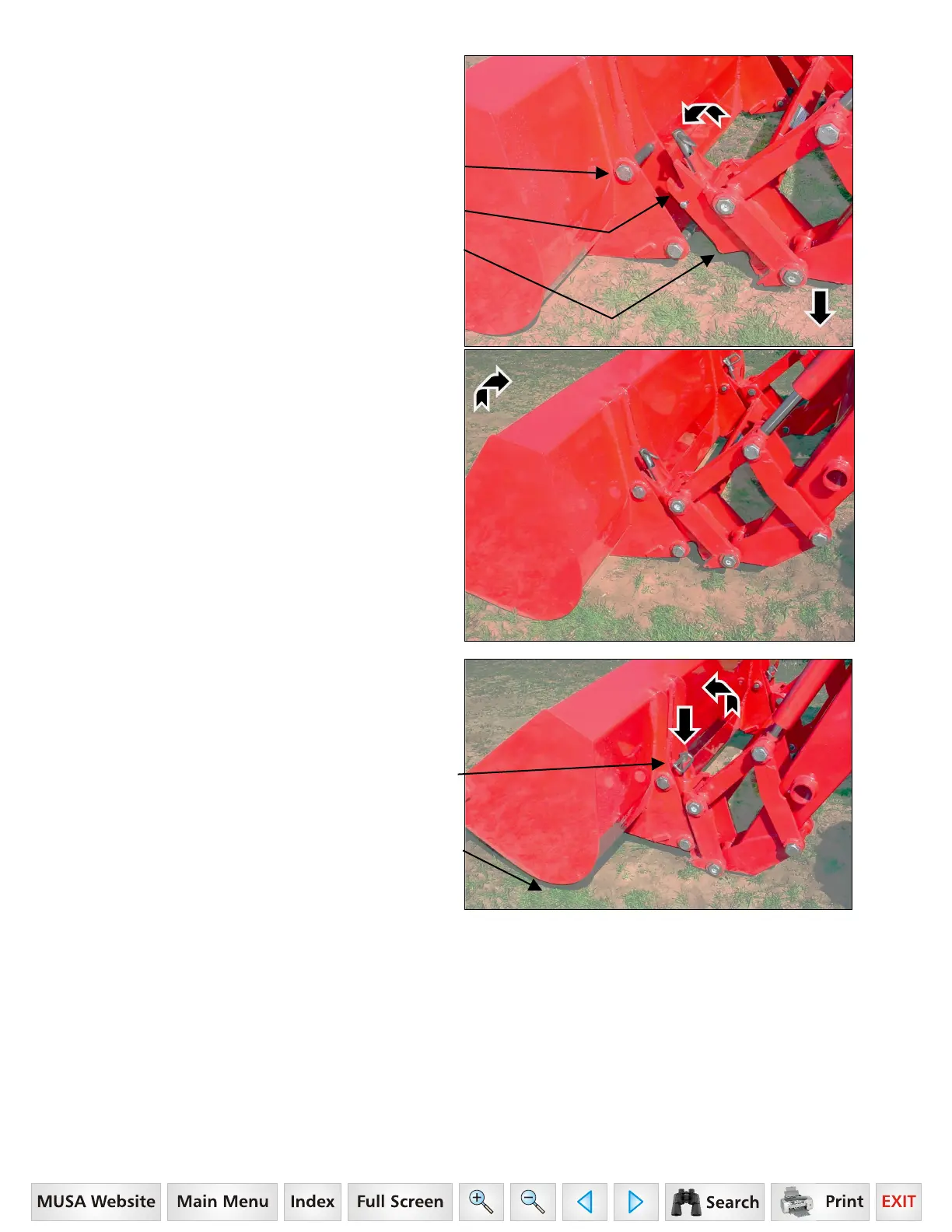

14.2.4. Roll quick attach forward by extending tilt
cylinders just enough to allow pin on quick attach
receiver to engage bucket or attachment upper pin.
Drive tractor forward, aligning quick attach with
bucket or attachment.
Bucket or Attachment Upper Pin
Quick Attach Receiver – align with
bucket or attachment upper pin.
Quick Attach - roll forward and lower.
NOTE: Over extension of tilt cylinders during this
operation could cause damage to Pin On Quick
Attach handles due to handles contacting bucket
or attachment. Make sure handles are flipped
forward.
14.2.5. When pin on quick attach is aligned with pin
on bucket or attachment, raise loader boom slowly
making sure pin on quick attach receivers engage
attachment. Then roll quick attach back slowly.
14.2.6. Position loader so attachment is
approximately 1" off ground. Position pin assembly
into the engaged position by pulling up on handle and
rotating pin assembly so the spring pin is located in
bushing slot. Repeat for other side.
Pin Assembly – rotate pin assembly
so that spring pin is fully
engaged in bushing slot.
Attachment – approximately
1" off of ground.
To Next Page
