Makita JR3051T Repair Manual

14 / 32

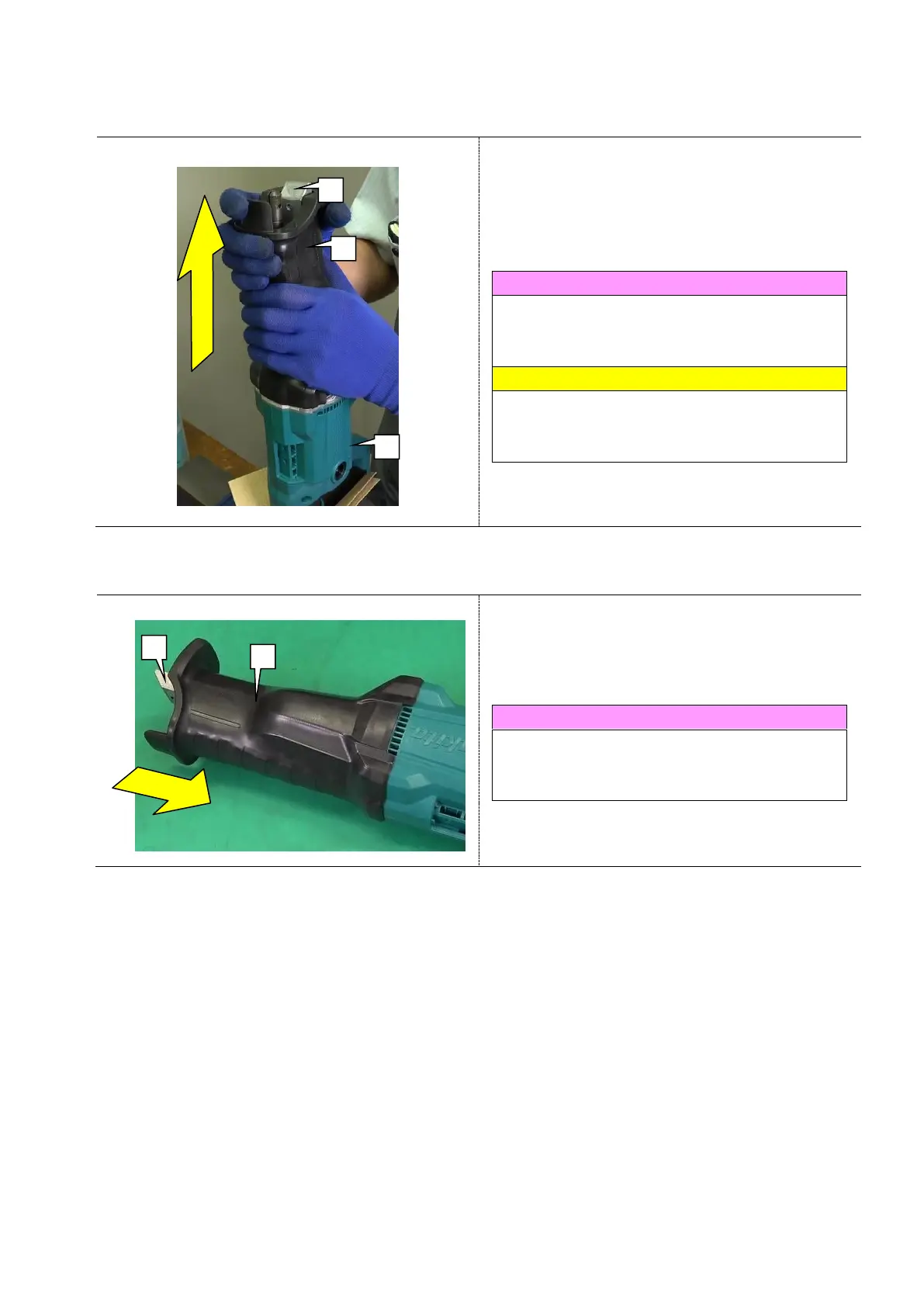

6-5 Insulation cover section
6-5-1 Disassembling
Fig.25
1 While protecting Handle section [1] with a waste
cloth, hold them in Vise.
2 Remove Insulation cover [3] from Gear housing
[2].
Tips
Insulation cover [3] can be easily removed by
spraying parts cleaner between Insulation cover [3]
and Gear housing [2].
Note
Do not spray Lubricant or silicone-spray when
disassembling Insulation cover [3] because the cover
can easily come off during use.
6-5-2 Assembling
Fig.26
1 Assemble Insulating cover [2] to Gear housing [1].
2 Fit the protrusions (4 positions) of Insulation cover
[2] into Gear housing [1].
Tips
If Parts cleaner is sprayed to the inside of Insulation
cover [2], Insulation cover [2] can easily cover Gear
housing [1].
[1]
[2]
[3]
[1]
[2]

Makita JR3051T Specifications

General

Power Source	Corded
Amperage	12 A
Strokes Per Minute	0-3, 000 SPM
Tool Weight	7.3 lbs
Voltage	120 V
Tool Length	17-3/4 inches
Max. Cutting Capacity in Wood	10 inches
Max. Cutting Capacity in Steel Pipe	5-1/8 inches
