Makita JR3051T Repair Manual

31 / 32
8 WIRING DIAGRAM

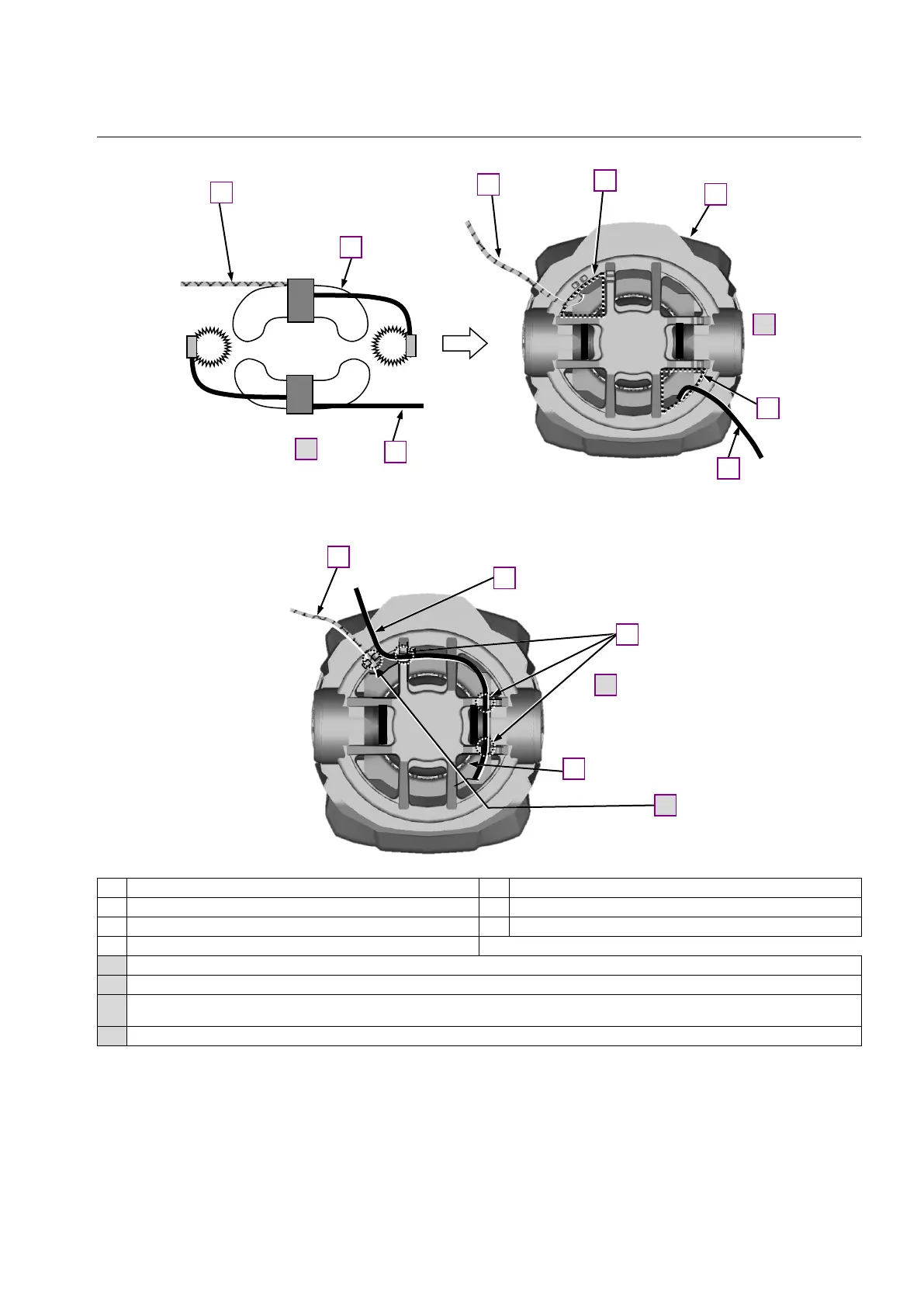

8-1 Field section
Fig.70
1
Field
5
Opening B
2
Lead wire of Field (White)
6
Motor housing
3
Lead wire of Field (Black)
7
Lead wire holder
4
Opening A
8
Assemble Field to Motor housing in the orientation as shown.
9
Pass Lead wire of Field (white) through Opening A and Lead wire of Field (black) through Opening B as shown.
10
Assemble Lead wire of Field (black) from Motor housing between Field and Lead wire holder and Lead wire holder and Lead wire
holder without slack.
11
Fix Lead wire of Field (white) in this Lead wire holder.
1
8
2
3
2
4
6
1
5
3
3
7
2
9
10
11

Makita JR3051T Specifications

General

Power Source	Corded
Amperage	12 A
Strokes Per Minute	0-3, 000 SPM
Tool Weight	7.3 lbs
Voltage	120 V
Tool Length	17-3/4 inches
Max. Cutting Capacity in Wood	10 inches
Max. Cutting Capacity in Steel Pipe	5-1/8 inches
