Makita JR3051T Repair Manual

26 / 32

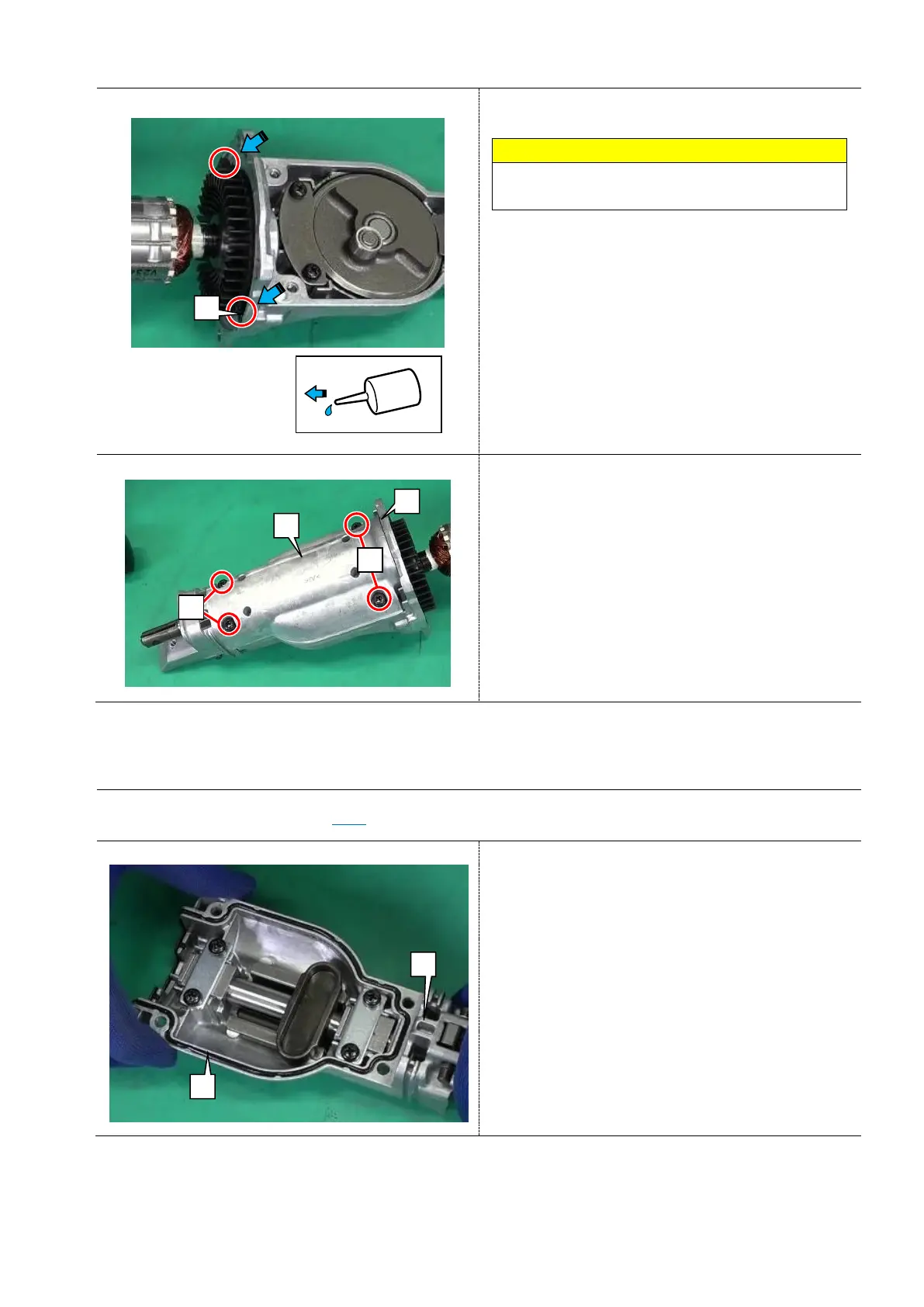

Fig.59
6 Tighten Hex. socket head bolts M4x12 [1] (2 pcs).
Note
Apply the specified adhesive to the thread of Hex.
socket head bolts M4x12 [1] (2 pcs).
Fig.60
7 Assemble Gear housing cover [2] to Gear housing
[1] with Pan head screws M5x25 [3] (2 pcs) and
Pan head screws M5x35 [4] (2 pcs).
6-8 Slider section
6-8-1 Disassembling
1 Remove Gear housing cover. (6-7-1)
Fig.61
2 Remove Seal ring [2] from Gear housing cover [1].
[2]
[1]
[2]
[4]
[3]
[1]
[1]
