Makita JR3051T Repair Manual

24 / 32

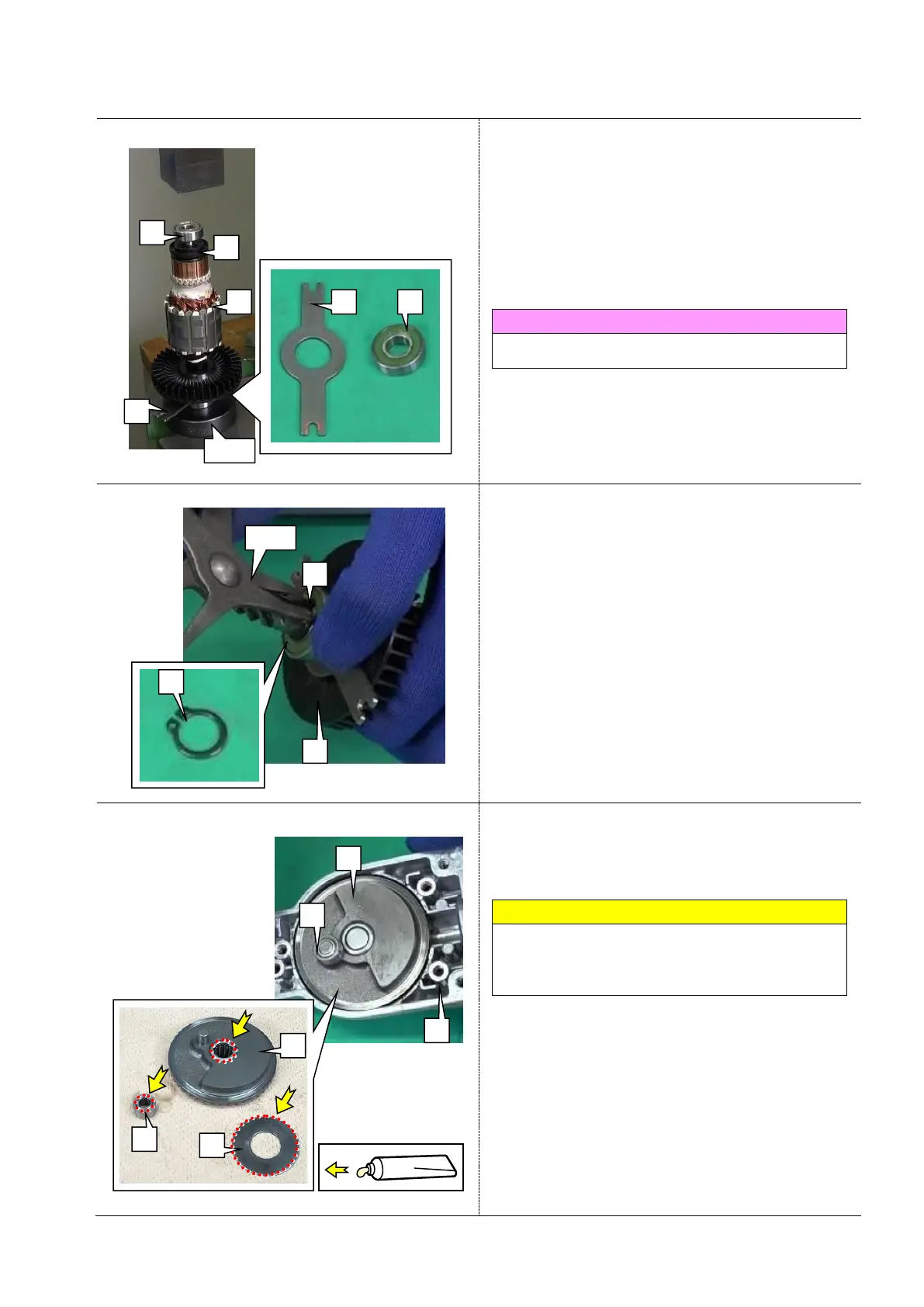

6-7-2 Assembling
Fig.54
1 Assemble the following parts to Armature [1], then
hold Armature [1] with 1R034, and then press-fit
them.
 Bearing retainer 80 [2]
 Ball bearing 6001LLU [3]
 Insulation washer [4]
 Ball bearing 608ZZ [5]
Tips
Press-fit Armature [1] while turning it.
Fig.55
2 Assemble Retaining ring S-12 [2] to Armature [1]
with 1R291.
Fig.56
3 Assemble Flat washer 18 [2] and Needle bearing
708 [3] to Gear complete [1], then assemble them
to Gear housing [4].
Note
Apply the specified grease to the inner ring of Gear
complete [1], Flat washer 18 [2] and the inner ring of
Needle bearing 708 [3].
[1]
[3]
[4]
[1]
[2]
[3]
[2]
[1]
[2]
1R291
[1]
[5]
[2]
1R034
[4]
[2]
[3]

Makita JR3051T Specifications

General

Power Source	Corded
Amperage	12 A
Strokes Per Minute	0-3, 000 SPM
Tool Weight	7.3 lbs
Voltage	120 V
Tool Length	17-3/4 inches
Max. Cutting Capacity in Wood	10 inches
Max. Cutting Capacity in Steel Pipe	5-1/8 inches
