Makita JR3051T Repair Manual

23 / 32

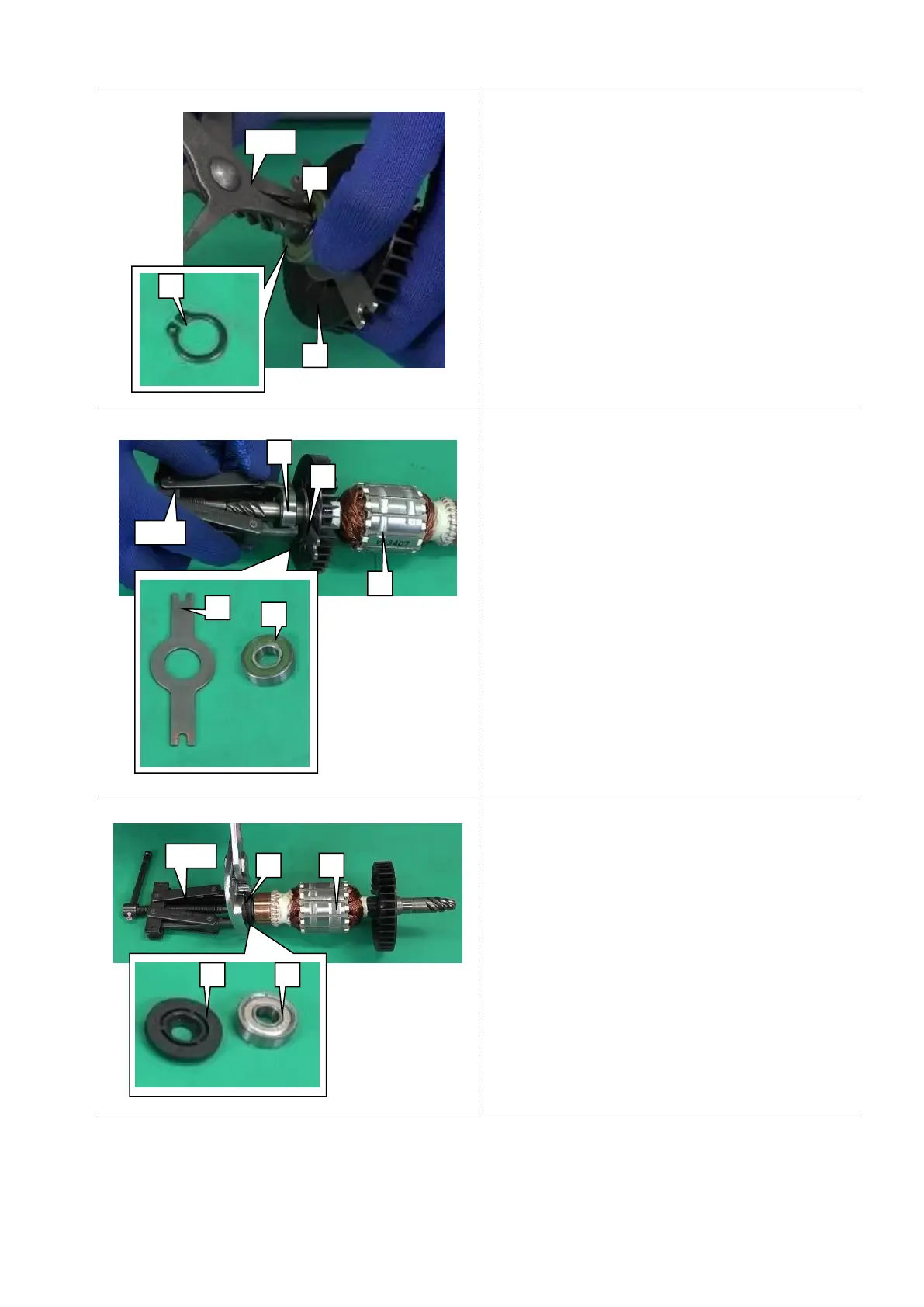

Fig.51
7 Remove Retaining ring S-12 [2] from Armature [1]
with 1R291.
Fig.52
8 Remove Ball bearing 6001LLU [2] from Armature
[1] with 1R269, then remove Bearing retainer 80
[3].
Fig.53
9 Remove Ball bearing 608ZZ [2] from Armature [1]
with 1R269 and Water pump pliers, then remove
Insulation washer [3].
[1]
[2]
[3]
[3]
1R269
1R269
[1]
[2]
[3]
[3]
[2]
[2]
[1]
[2]
1R291

Makita JR3051T Specifications

General

Power Source	Corded
Amperage	12 A
Strokes Per Minute	0-3, 000 SPM
Tool Weight	7.3 lbs
Voltage	120 V
Tool Length	17-3/4 inches
Max. Cutting Capacity in Wood	10 inches
Max. Cutting Capacity in Steel Pipe	5-1/8 inches
