Makita JR3051T Repair Manual

21 / 32

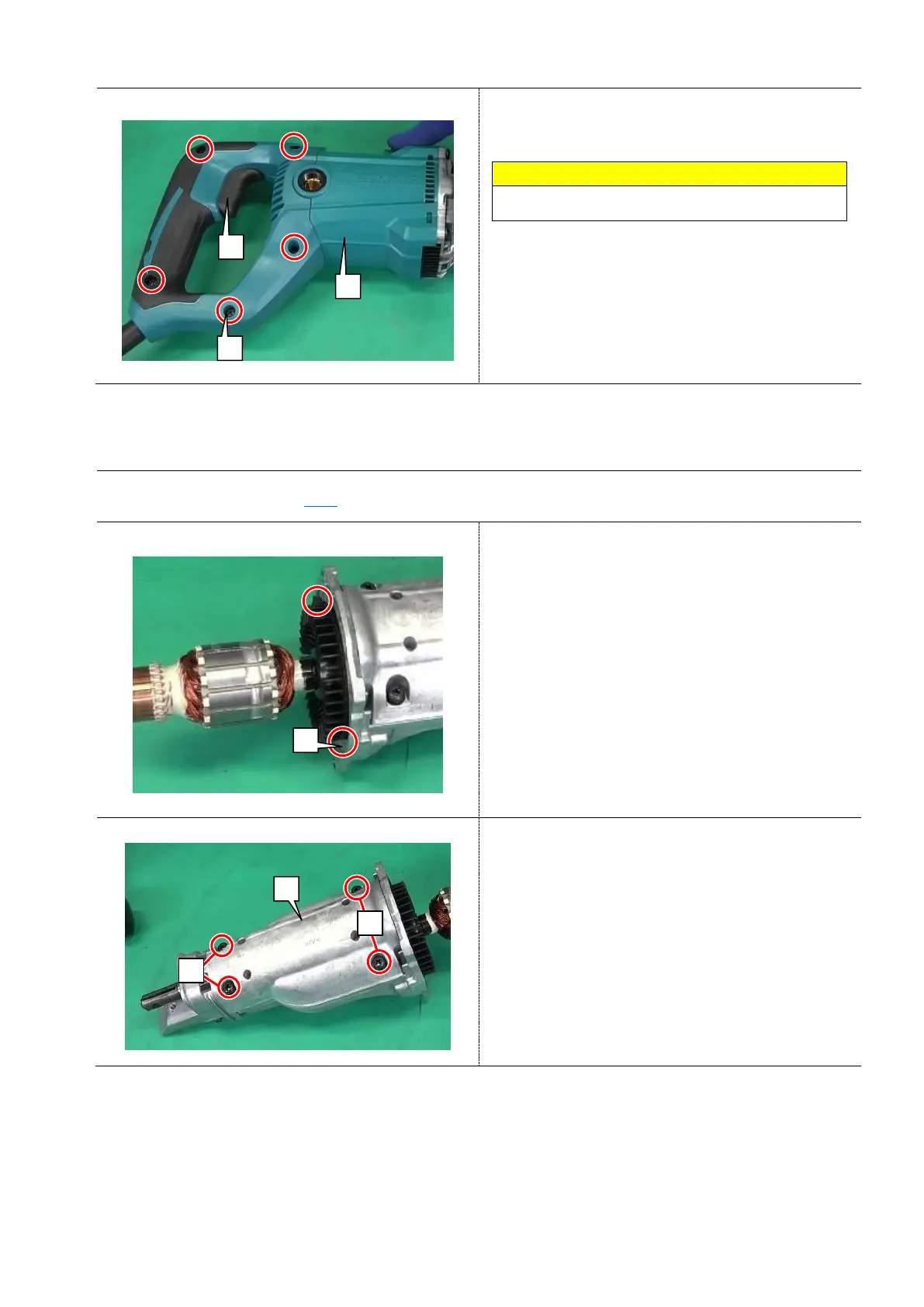

Fig.45
11 Assemble Handle R [1] with Tapping screws 4x18
[2] (5 pcs).
Note
Check the operation of Switch [3].
6-7 Armature/ Gear section
6-7-1 Disassembling
1 Remove Handle section. (6-6-1)
Fig.46
2 Remove Hex. socket head bolts M4x12 [1] (2 pcs).
Fig.47
3 Remove Pan head screws M5x35 [1] (2 pcs) and
Pan head screws M5x25 [2] (2 pcs), then remove
Gear housing cover [3].
[3]
[2]
[1]
[1]
[1]
[2]
[3]

Makita JR3051T Specifications

General

Power Source	Corded
Amperage	12 A
Strokes Per Minute	0-3, 000 SPM
Tool Weight	7.3 lbs
Voltage	120 V
Tool Length	17-3/4 inches
Max. Cutting Capacity in Wood	10 inches
Max. Cutting Capacity in Steel Pipe	5-1/8 inches
