Makita JR3051T Repair Manual

13 / 32
6-4 Carbon brush section
6-4-1 Disassembling
1 Remove Blade clamp section. (6-3-1)

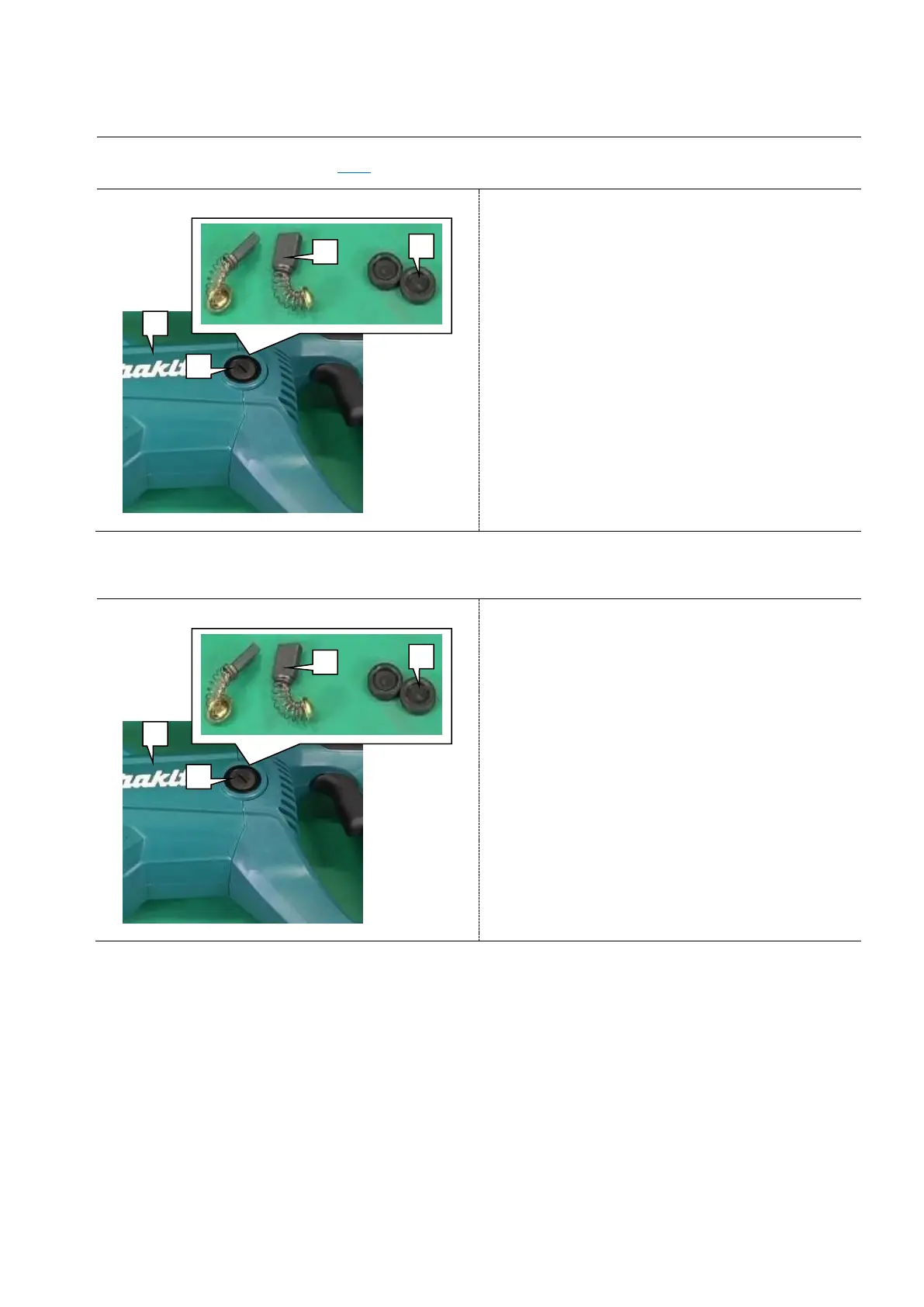

Fig.23
2 Remove Holder caps [2] (2 pcs) and Carbon
brushes [3] (2 pcs) from each side of Motor
housing [1].
6-4-2 Assembling
Fig.24
1 Assemble Carbon brushes [2] (2 pcs) and Holder
caps [3] (2 pcs) to each side of Motor housing [1].
[2]
[3]
[1]
[3]
[3]
[2]
[1]
[2]

Makita JR3051T Specifications

General

Power Source	Corded
Amperage	12 A
Strokes Per Minute	0-3, 000 SPM
Tool Weight	7.3 lbs
Voltage	120 V
Tool Length	17-3/4 inches
Max. Cutting Capacity in Wood	10 inches
Max. Cutting Capacity in Steel Pipe	5-1/8 inches
