Makita JR3051T Repair Manual

9 / 32

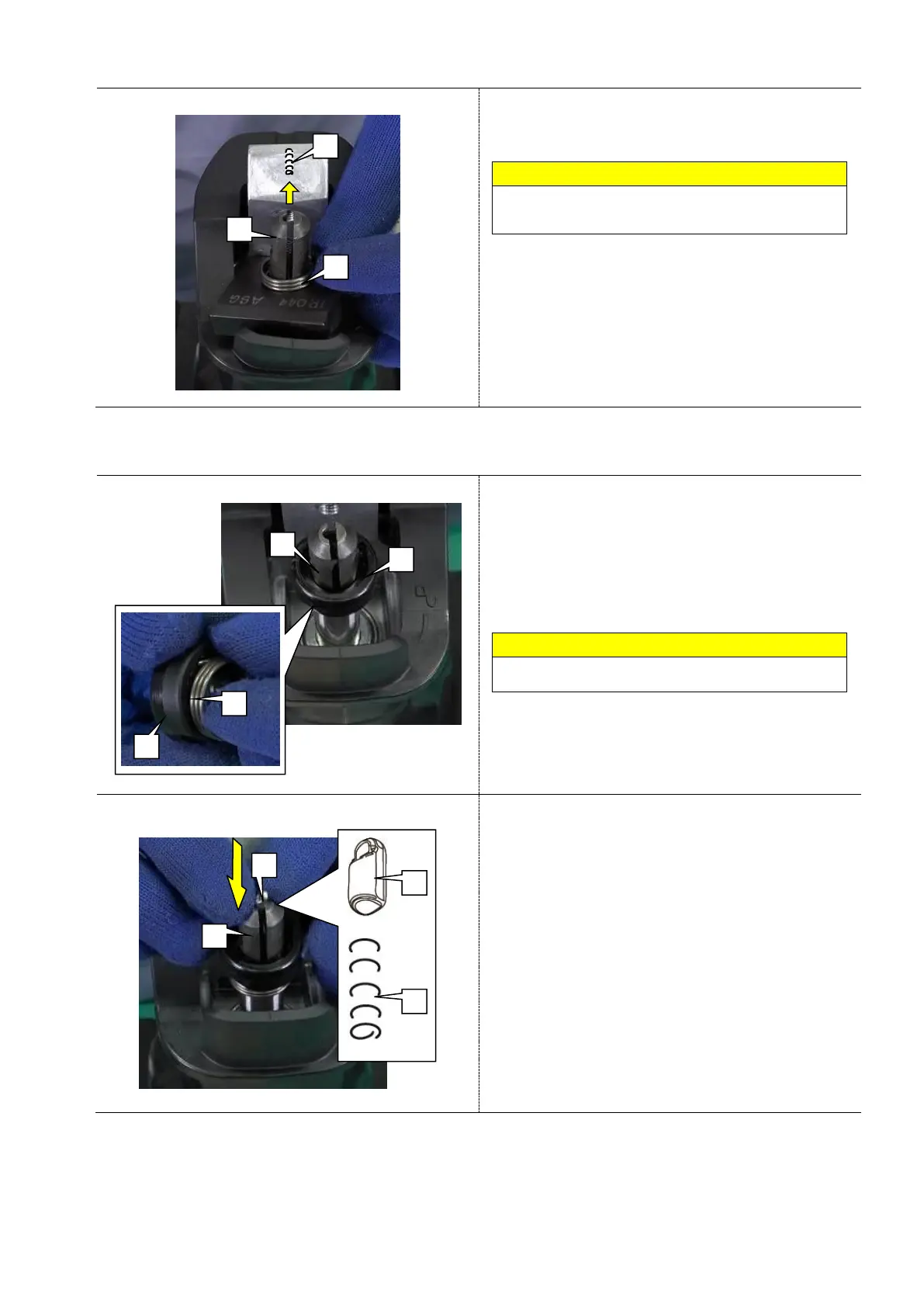

Fig.12
9 When removing Torsion spring 17 [2] from Slider
[1], Compression spring 2 [3] is also come off.
Note
Be careful not to drop or lose Compression spring 2
[3].
6-3-2 Assembling
Fig.13
1 Hold the machine with 1R312 with the tip faced
upward.
2 Fit the short leg of Torsion spring 17 [1] into the
hole in Connecting sleeve [2], then assemble them
to Slider [3].
Note
Note the orientation of Torsion spring 17 [1].
Fig.14
3 Assemble Compression spring 2 [2] and Push pin
[3] to Slider [1].
[2]
[1]
[2]
[3]
[3]
[2]
[3]
[1]
[1]
[2]
[3]

Makita JR3051T Specifications

General

Power Source	Corded
Amperage	12 A
Strokes Per Minute	0-3, 000 SPM
Tool Weight	7.3 lbs
Voltage	120 V
Tool Length	17-3/4 inches
Max. Cutting Capacity in Wood	10 inches
Max. Cutting Capacity in Steel Pipe	5-1/8 inches
