Makita JR3051T Repair Manual

10 / 32

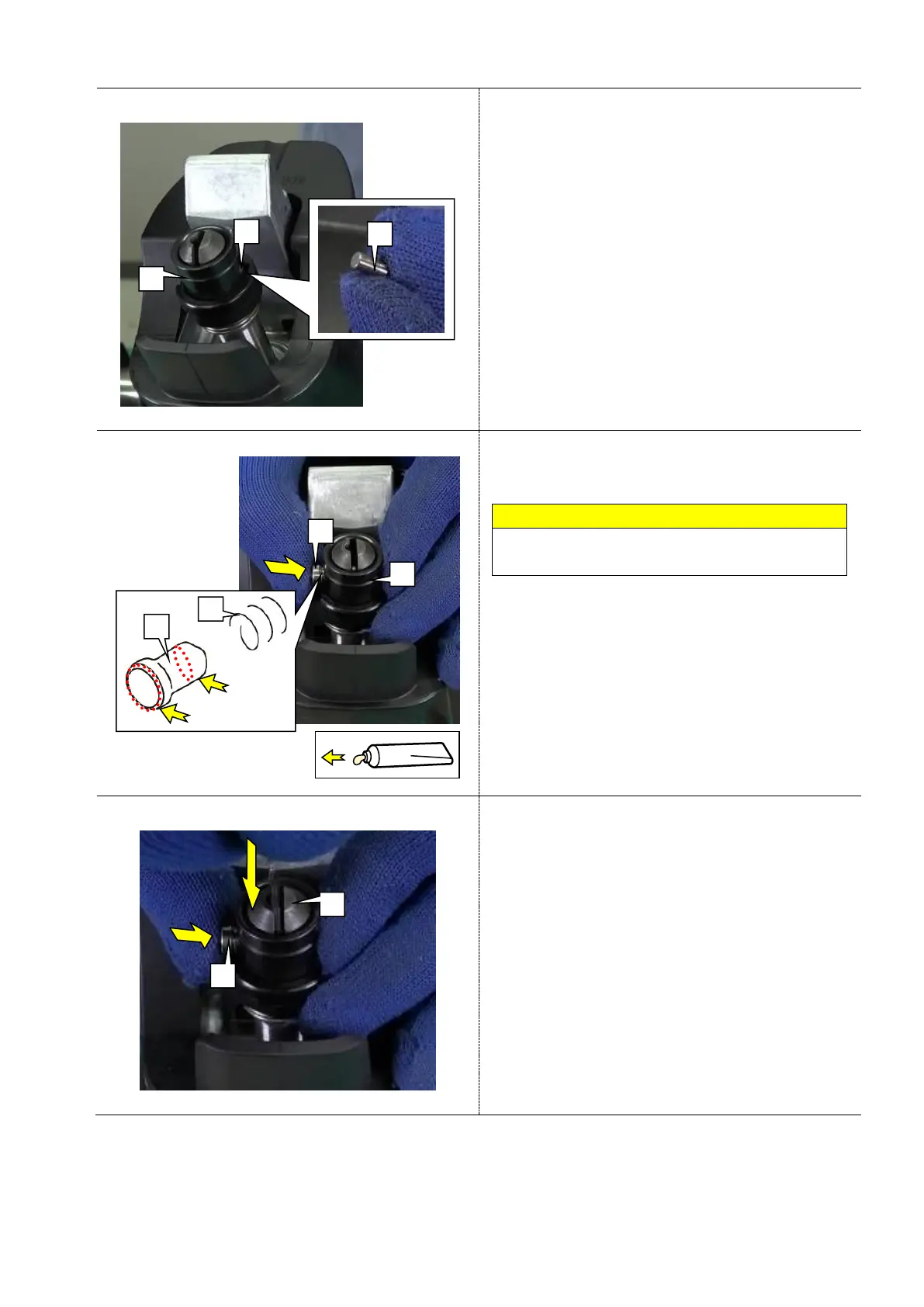

Fig.15
4 Assemble Guide sleeve [1], then align the holes,
and then insert Pin 3 [2].
Fig.16
5 Assemble Compression spring 6 [2] to Shoulder
pin 5 [1], then insert them into Guide sleeve [3].
Note
Apply the specified grease to the outer surface and the
head of Shoulder pin 5 [1].
Fig.17
6 Insert the blade into Slider [1], then push Shoulder
pin 5 [2] until it stops.
[1]
[2]
[1]
[3]
[1]
[2]
[1]
[2]
[2]

Makita JR3051T Specifications

General

Power Source	Corded
Amperage	12 A
Strokes Per Minute	0-3, 000 SPM
Tool Weight	7.3 lbs
Voltage	120 V
Tool Length	17-3/4 inches
Max. Cutting Capacity in Wood	10 inches
Max. Cutting Capacity in Steel Pipe	5-1/8 inches
