Makita JR3051T - Functional Description; Switch Action; Hook

5 / 32
6 REPAIR
6-1 Hook section
6-1-1 Disassembling

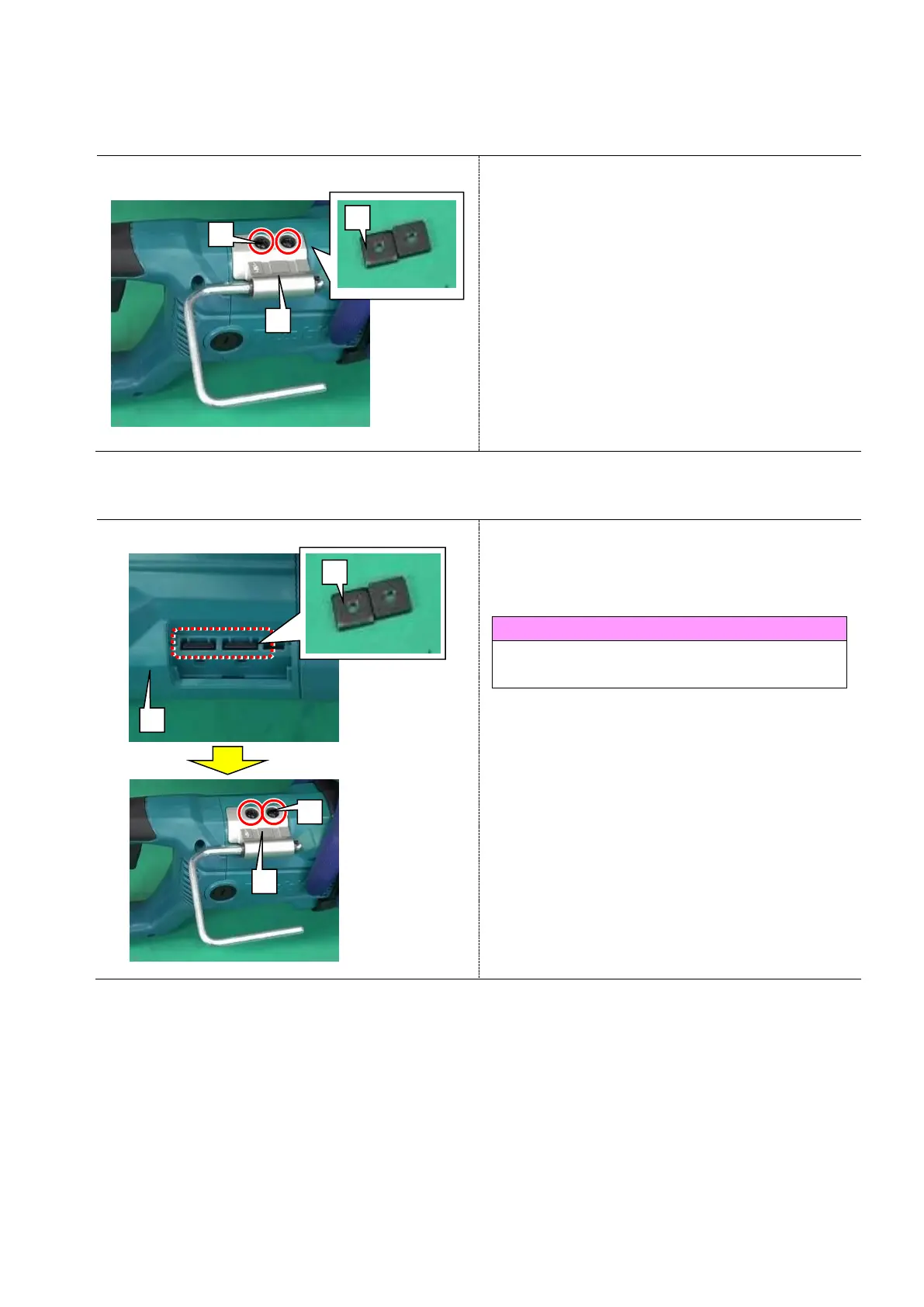

Fig.2
1 Remove Pan head screws M5x10 [1] (2 pcs), then
remove Hook [2] and Square nuts [3] (2 pcs).
6-1-2 Assembling
Fig.3
1 Assemble Square nuts M5 [2] (2 pcs) and Hook [3]
to Motor housing [1] with Pan head screws M5x10
[4] (2 pcs).
Tips
Square nuts M5 [2] (2 pcs) is easy to come off. Tilt
the nut in the direction that does not come off.
[2]
[1]
[3]
[4]
[1]
[3]
[2]
