Makita JR3051T Repair Manual

7 / 32

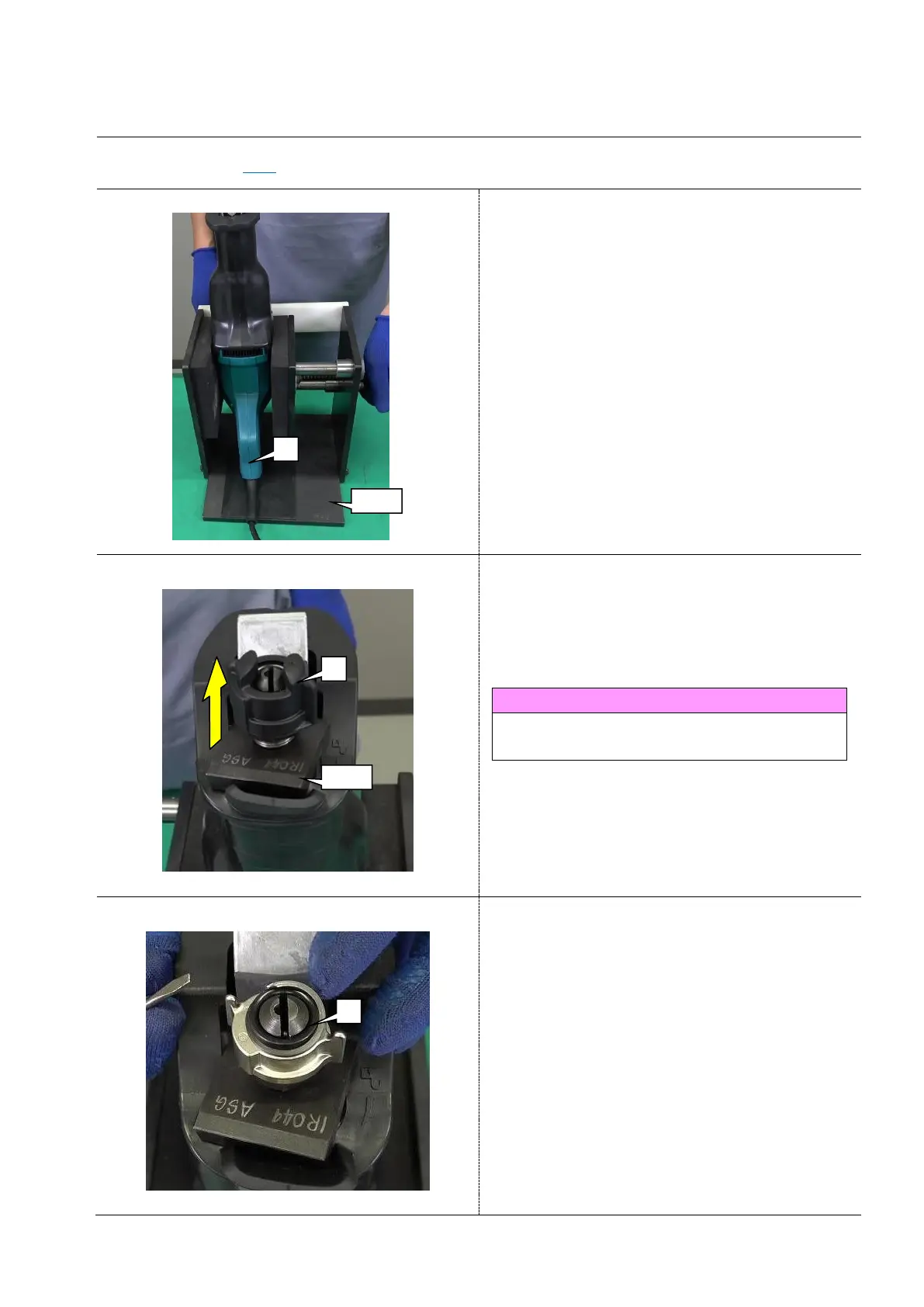

6-3 Blade clamp section
6-3-1 Disassembling
1 Remove Shoe. (6-2-1)
Fig.6
2 It is easy to disassemble by holding the machine [1]
with the tip faced upward with 1R312.
Fig.7
3 Plug the cord in the outlet and move Blade clamp
section to the most forward position by pulling
Switch slightly. Then unplug the machine.
4 Remove Protector [1].
Tips
It is easy to disassemble by putting 1R049 under
Blade clamp section to prevent it from falling down.
Fig.8
5 Remove Retaining ring (EXT) 18 [1] from the end
with a slotted screwdriver, then slide the blade
along the ring while rotating.
[1]
[1]
1R049
[1]
1R312

Makita JR3051T Specifications

General

Power Source	Corded
Amperage	12 A
Strokes Per Minute	0-3, 000 SPM
Tool Weight	7.3 lbs
Voltage	120 V
Tool Length	17-3/4 inches
Max. Cutting Capacity in Wood	10 inches
Max. Cutting Capacity in Steel Pipe	5-1/8 inches
