Makita JR3051T Repair Manual

8 / 32

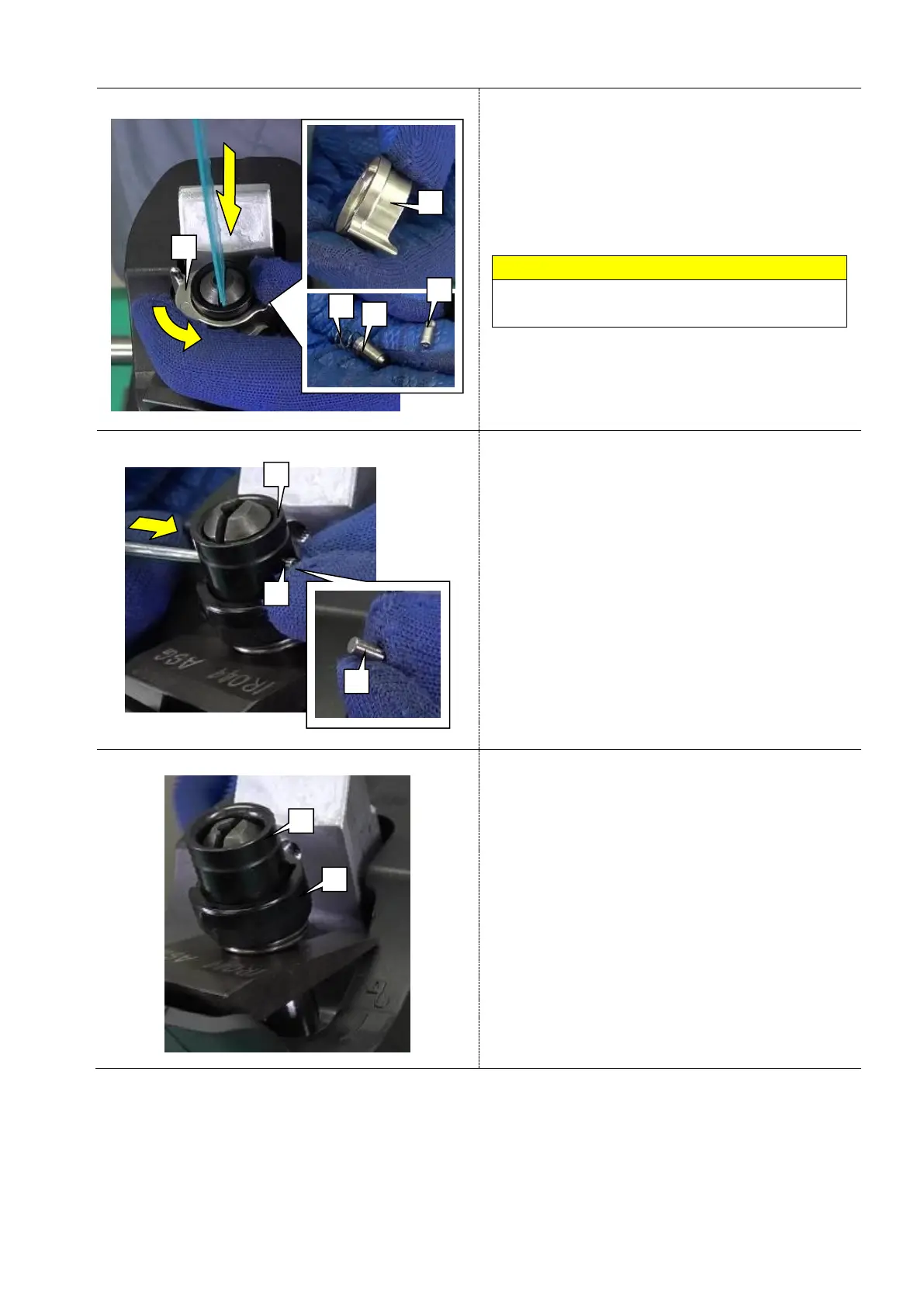

Fig.9
6 Insert the blade, then turn Driving sleeve [1] to lock
it, and then remove the following parts:
 Driving sleeve [1]
 Shoulder pin 5 [2]
 Compression spring 6 [3]
 Push pin [4]
Note
Be careful not to drop or lose Shoulder pin 5 [2] and
Compression spring 6 [3].
Fig.10
7 Remove Pin 3 [2] from Guide sleeve [1].
Fig.11
8 Remove Guide sleeve [1] and Connecting sleeve
[2].
[1]
[2]
[1]
[2]
[2]
[1]
[3]
[2]
[4]
[1]

Makita JR3051T Specifications

General

Power Source	Corded
Amperage	12 A
Strokes Per Minute	0-3, 000 SPM
Tool Weight	7.3 lbs
Voltage	120 V
Tool Length	17-3/4 inches
Max. Cutting Capacity in Wood	10 inches
Max. Cutting Capacity in Steel Pipe	5-1/8 inches
