Makita JR3051T Repair Manual

6 / 32
6-2 Shoe section
6-2-1 Disassembling

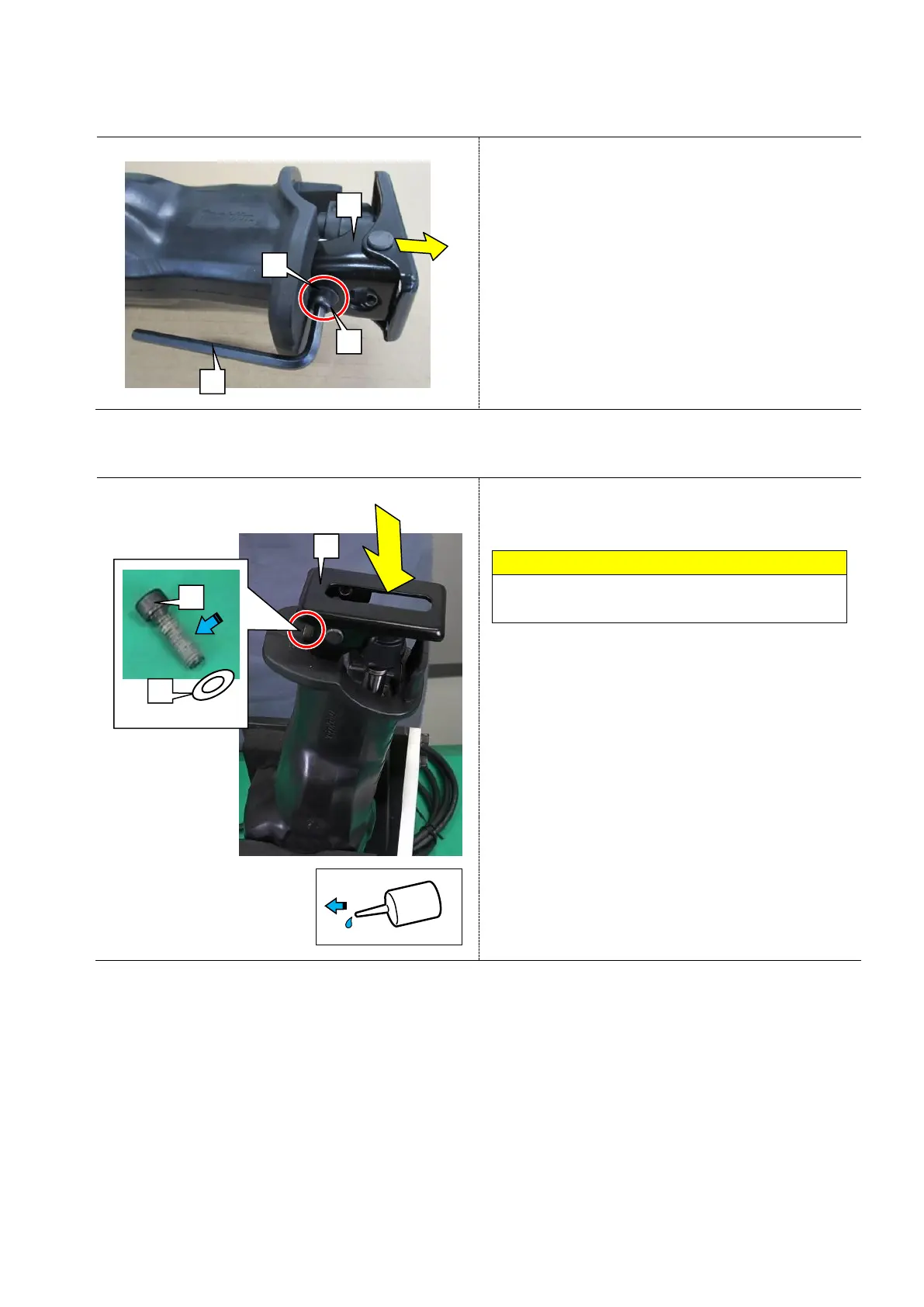

Fig.4
1 Remove Hex. socket head bolt M6x20 [2] and Flat
washer 6 [3] with Hex. wrench 5 [1], then remove
Shoe [4].
6-2-2 Assembling
Fig.5
1 Assemble Shoe [1] with Flat washer 6 [2] and Hex.
socket head bolt M6x20 [3].
Note
Apply the specified adhesive to the thread of Hex.
socket head bolt M6x20 [3].
[3]
[1]
[2]
[4]
[2]
[1]
[3]

Makita JR3051T Specifications

General

Power Source	Corded
Amperage	12 A
Strokes Per Minute	0-3, 000 SPM
Tool Weight	7.3 lbs
Voltage	120 V
Tool Length	17-3/4 inches
Max. Cutting Capacity in Wood	10 inches
Max. Cutting Capacity in Steel Pipe	5-1/8 inches
