Makita JR3051T Repair Manual

28 / 32
6-8-2 Assembling

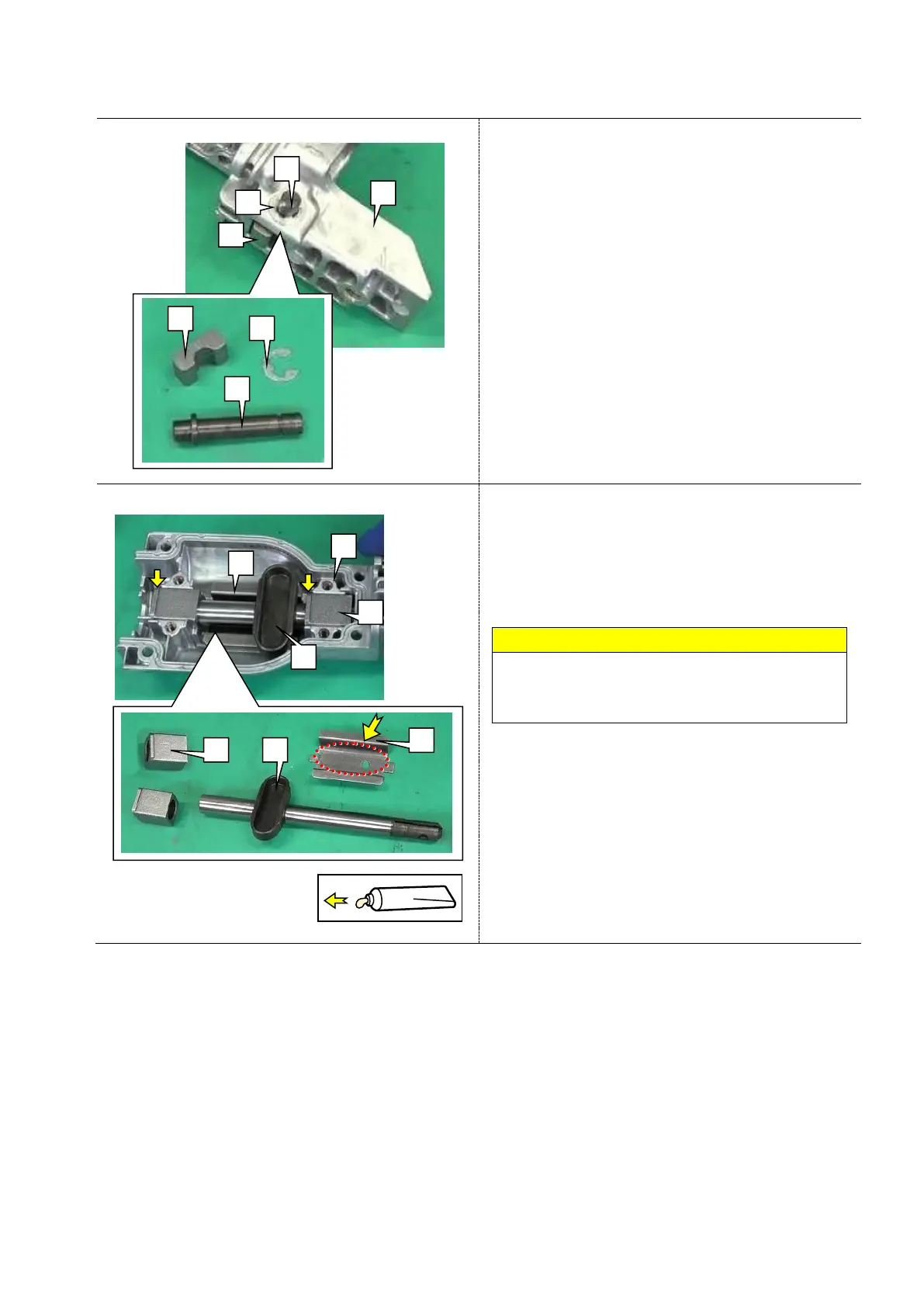

Fig.65
1 Assemble the following parts to Gear housing
cover [1]:
 Block [2]
 Collared pin 6 [3]
 Stop ring E-5 [4]
Fig.66
2 Assemble the following parts to Gear housing
cover [1]:
 Slide plate [2]
 Plane bearings 14 [3] (2 pcs)
 Slider [4]
Note
 Apply the specified grease to Slide plate [2].
 Align the flange of Plane bearing 14 [3] with the
groove (arrow position) of Gear housing cover.
[1]
[3]
[2]
[4]
[3]
[4]
[2]
[2]
[4]
[3]
[3]
[4]
[2]
[1]

Makita JR3051T Specifications

General

Power Source	Corded
Amperage	12 A
Strokes Per Minute	0-3, 000 SPM
Tool Weight	7.3 lbs
Voltage	120 V
Tool Length	17-3/4 inches
Max. Cutting Capacity in Wood	10 inches
Max. Cutting Capacity in Steel Pipe	5-1/8 inches
