Makita JR3051T - Assembling

18 / 32
6-6-2 Assembling

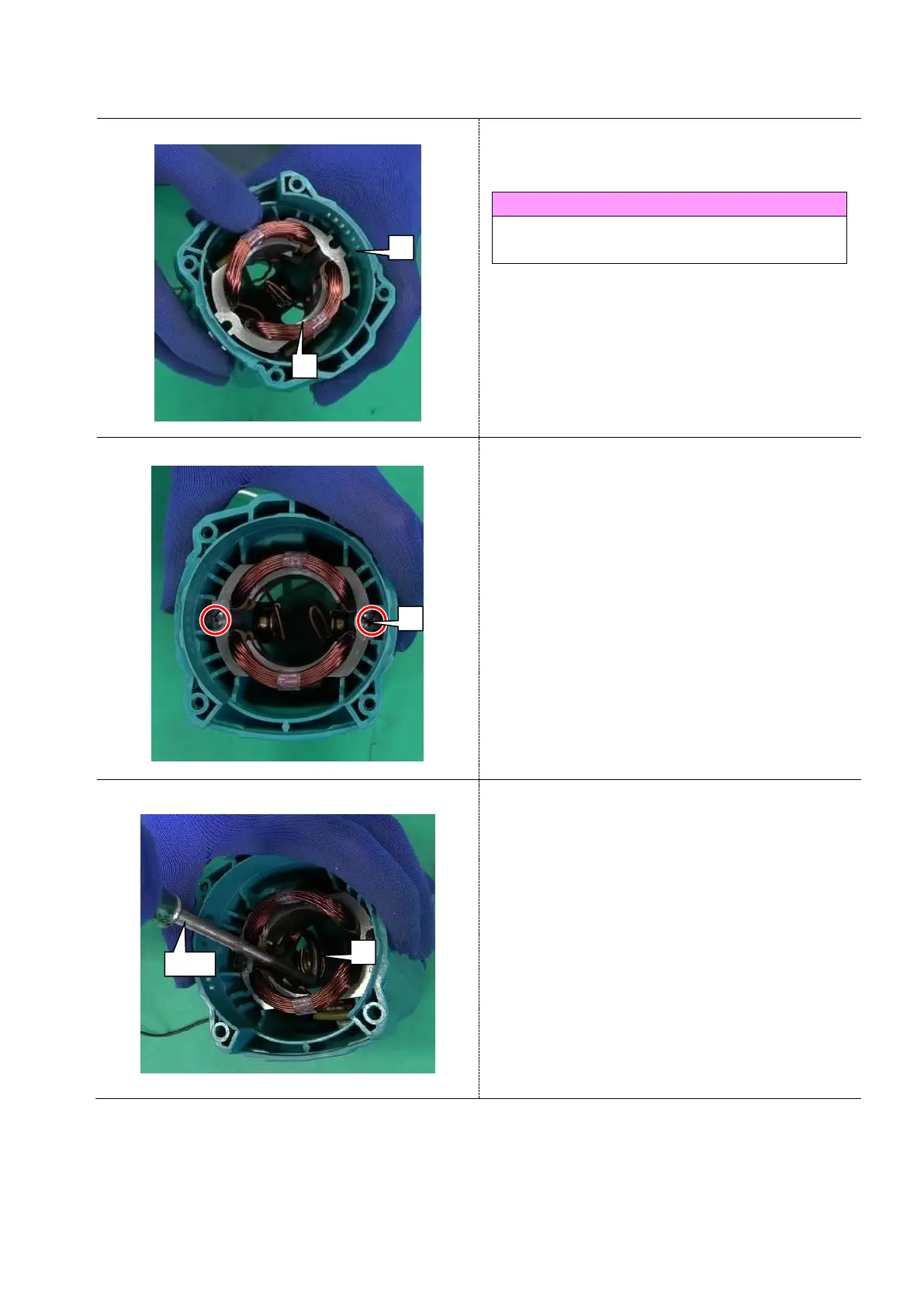

Fig.36
1 Insert Field [2] straight down into Motor housing
[1].
Tips
If it is hard and does not fit into the bottom, tap the
back of Motor housing [1] with a plastic hammer.
Fig.37
2 Tighten Tapping screws 5x45 [1] (2 pcs).
Fig.38
3 Set Ring terminals [1] (2 pcs) in place with 1R370.
[1]
1R370
[1]
[1]
[2]
