Makita JR3051T Repair Manual

15 / 32
6-6 Switch/ Motor section
6-6-1 Disassembling
1 Remove Hook, Shoe, Carbon brushes and Insulation cover. (6-1-1, 6-2-1, 6-4-1, 6-5-1)
Tips
The above disassembly is not necessary if only Switch and Power supply cord are replaced.

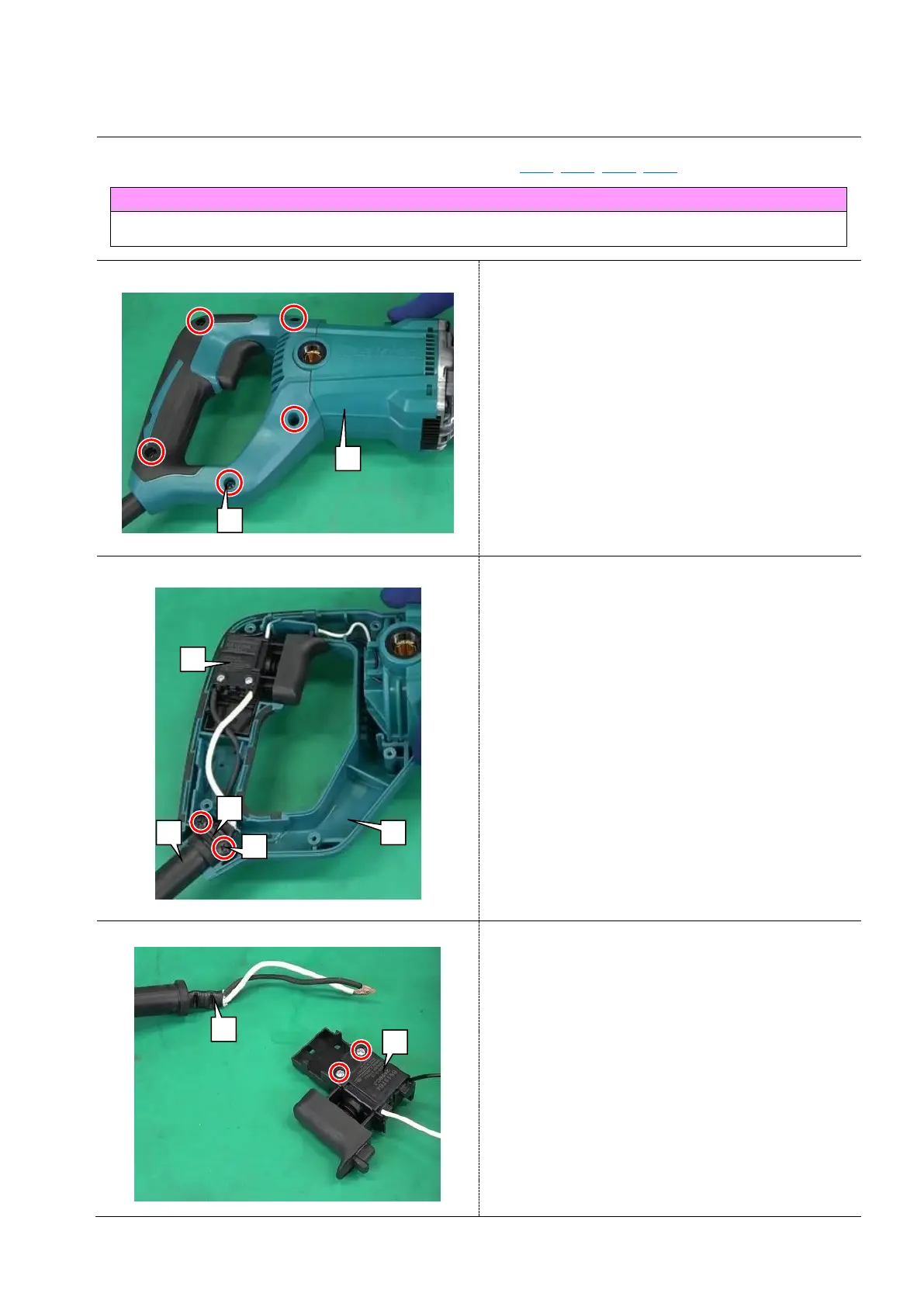

Fig.27
2 Remove Tapping screws 4x18 [1] (5 pcs), then
remove Handle R [2].
Fig.28
3 Remove Tapping screws 4x18 [2] (2 pcs) from
Handle L [1], then remove the following parts:
 Strain relief [3]
 Cord guard 10-90 [4]
 Switch [5]
Fig.29
4 Loosen the screws on Switch [1], then remove
Power supply cord [2] from Switch [1].
[1]
[2]
[3]
[2]
[5]
[4]
[1]
[2]
[1]

Makita JR3051T Specifications

General

Power Source	Corded
Amperage	12 A
Strokes Per Minute	0-3, 000 SPM
Tool Weight	7.3 lbs
Voltage	120 V
Tool Length	17-3/4 inches
Max. Cutting Capacity in Wood	10 inches
Max. Cutting Capacity in Steel Pipe	5-1/8 inches
