Makita JR3051T Repair Manual

16 / 32

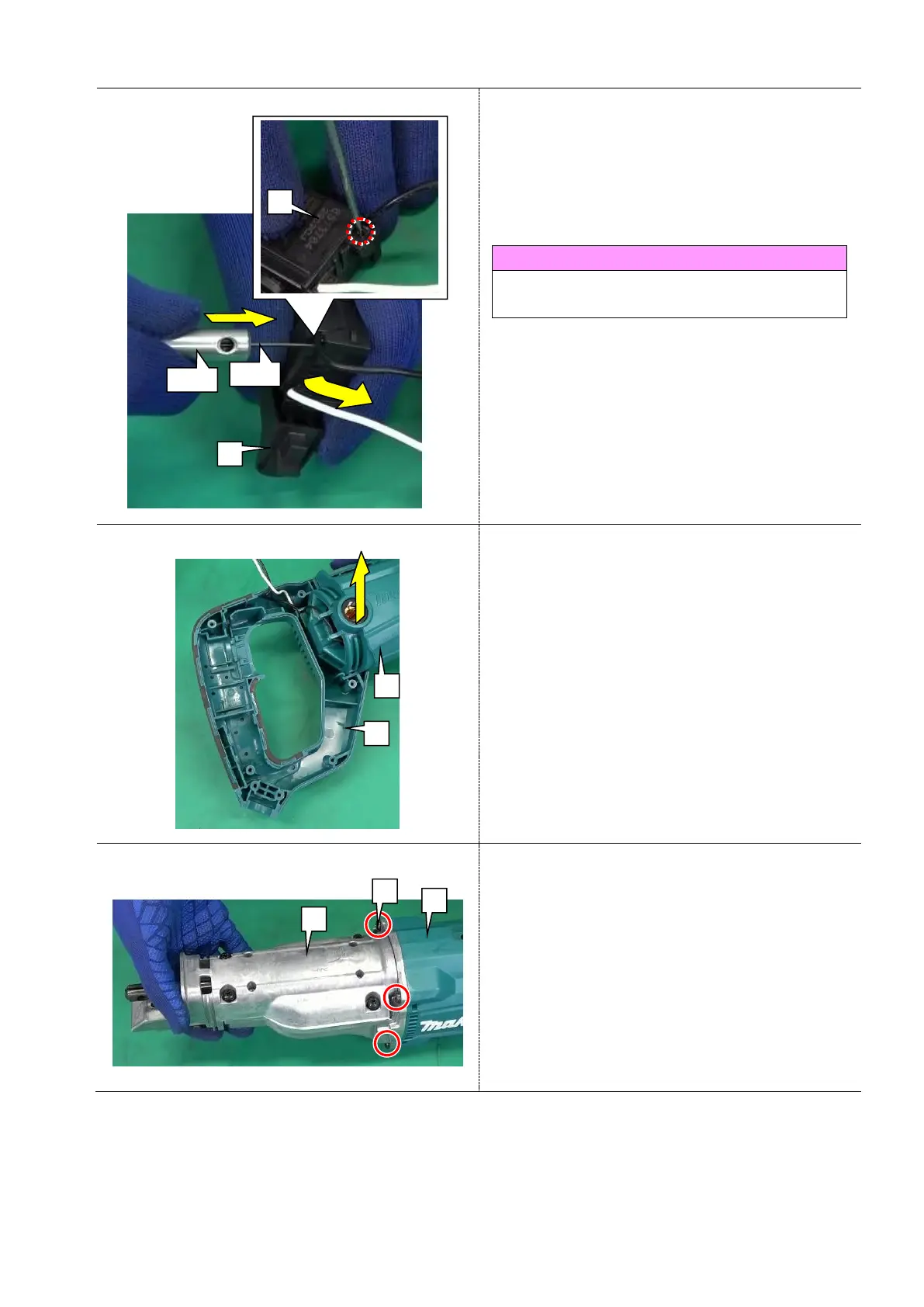

Fig.30
5 When removing Lead wires from Switch [1], insert
a thin pin through the hole near Switch lead wire
insertion port.
6 Attach 1R296 to 1R461, then pull out Lead wire
while inserting 1R296 into the hole.
Tips
If it is hard to insert 1R296 into the bottom, tap
1R461 with a plastic hammer to pierce the hole.
Fig.31
7 Remove Handle L [2] from Motor housing [1].
Fig.32
8 Remove Tapping screws 5x25 [1] (4 pcs), then
remove Motor housing [3] from Gear housing [2].
[1]
[3]
[2]
[1]
[2]
[1]
[1]
1R461
1R296

Makita JR3051T Specifications

General

Power Source	Corded
Amperage	12 A
Strokes Per Minute	0-3, 000 SPM
Tool Weight	7.3 lbs
Voltage	120 V
Tool Length	17-3/4 inches
Max. Cutting Capacity in Wood	10 inches
Max. Cutting Capacity in Steel Pipe	5-1/8 inches
