Makita JR3051T Repair Manual

27 / 32

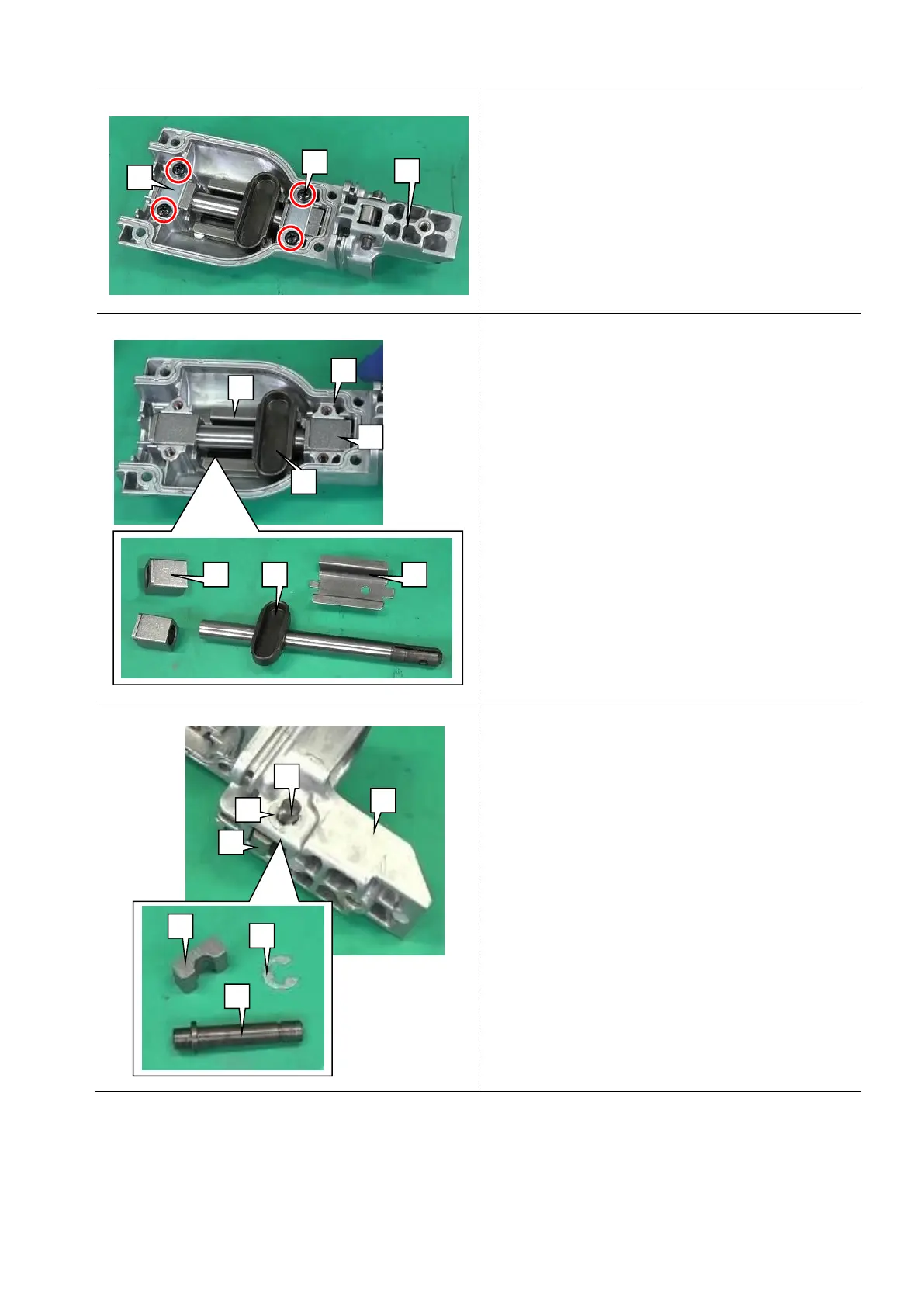

Fig.62
3 Remove Pan head screws M5x16 [2] (4 pcs) from
Gear housing cover [1], then remove Plates [3] (2
pcs).
Fig.63
4 Remove the following parts from Gear housing
cover [1]:
 Plane bearings 14 [2] (2 pcs)
 Slider [3]
 Slide plate [4]
Fig.64
5 Remove the following parts from Gear housing
cover [1]:
 Stop ring E-5 [2]
 Collared pin 6 [3]
 Block [4]
[4]
[2]
[3]
[3]
[2]
[4]
[1]
[1]
[2]
[4]
[3]
[2]
[4]
[3]
[1]
[2]
[3]

Makita JR3051T Specifications

General

Power Source	Corded
Amperage	12 A
Strokes Per Minute	0-3, 000 SPM
Tool Weight	7.3 lbs
Voltage	120 V
Tool Length	17-3/4 inches
Max. Cutting Capacity in Wood	10 inches
Max. Cutting Capacity in Steel Pipe	5-1/8 inches
