Makita JR3051T Repair Manual

12 / 32

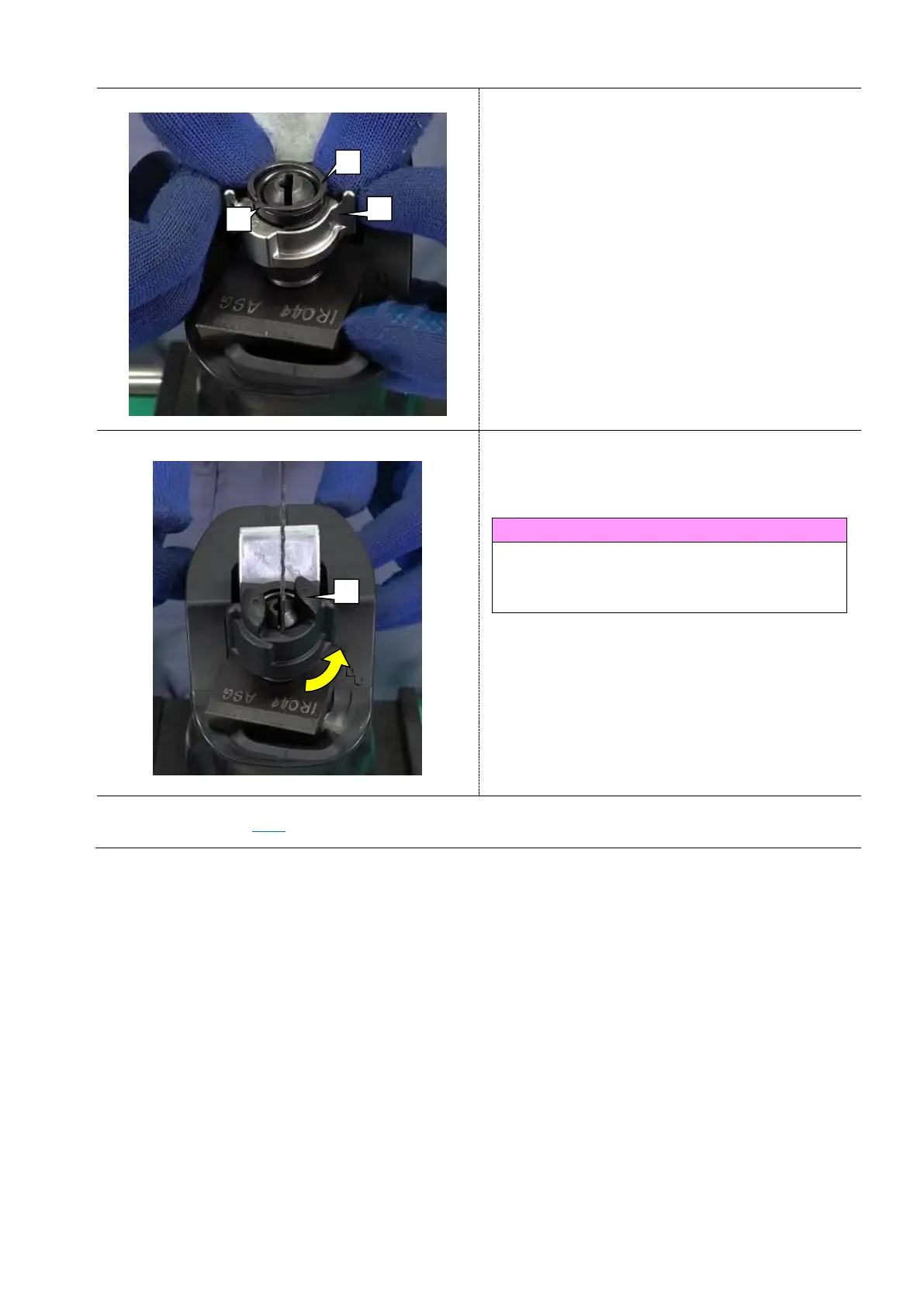

Fig.21
12 Remove the blade from Slider [1].
13 Fit Retaining ring (EXT) 18 [2] into the groove of
Guide sleeve [3] while rotating it from the end in
order.
Fig.22
14 Assemble Protector [1].
15 Remove 1R049 from Blade clamp section.
Tips
Check that Driving sleeve is locked by inserting the
blade, then check that the blade is pushed out by
turning Protector [1] counterclockwise.
16 Assemble Shoe. (6-2-1)
[1]
[1]
[2]
[3]

Makita JR3051T Specifications

General

Power Source	Corded
Amperage	12 A
Strokes Per Minute	0-3, 000 SPM
Tool Weight	7.3 lbs
Voltage	120 V
Tool Length	17-3/4 inches
Max. Cutting Capacity in Wood	10 inches
Max. Cutting Capacity in Steel Pipe	5-1/8 inches
