Makita JR3051T Repair Manual

25 / 32

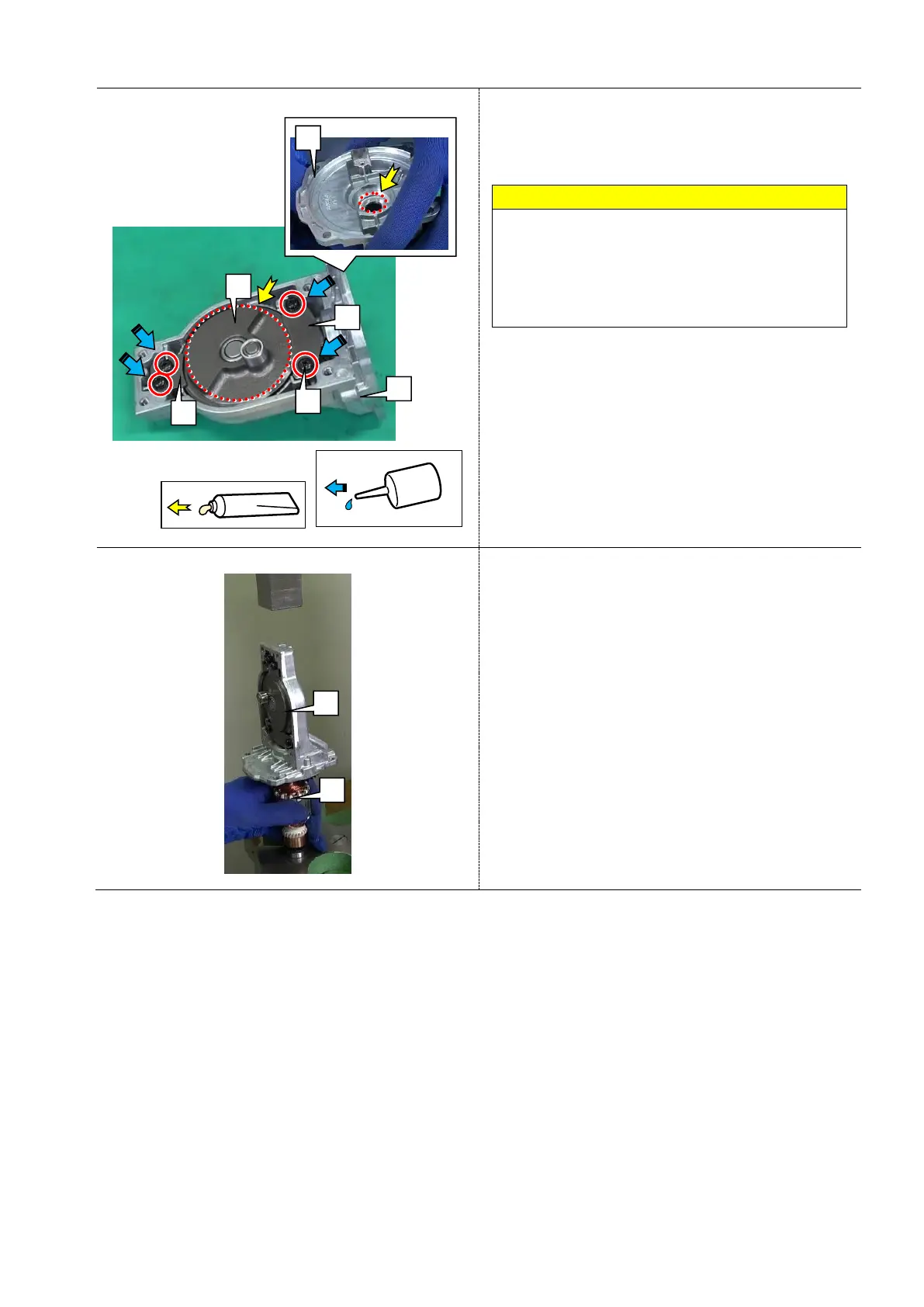

Fig.57
4 Assemble Gear plate [2] and Gear plate A [3] to
Gear housing [1] with Pan head screws M5x16 [4]
(4 pcs).
Note
 Apply the specified adhesive to the thread of Pan
head screws M5x16 [4] (4 pcs).
 Apply the specified grease to the sliding portion of
Gear housing [1] and Gear complete [5].
 Check the operation of Gear complete [5].
Fig.58
5 Press-fit Armature [2] into Gear housing [1].
[2]
[1]
[1]
[1]
[2]
[4]
[3]
[5]
