Makita LS1017L Technical Information

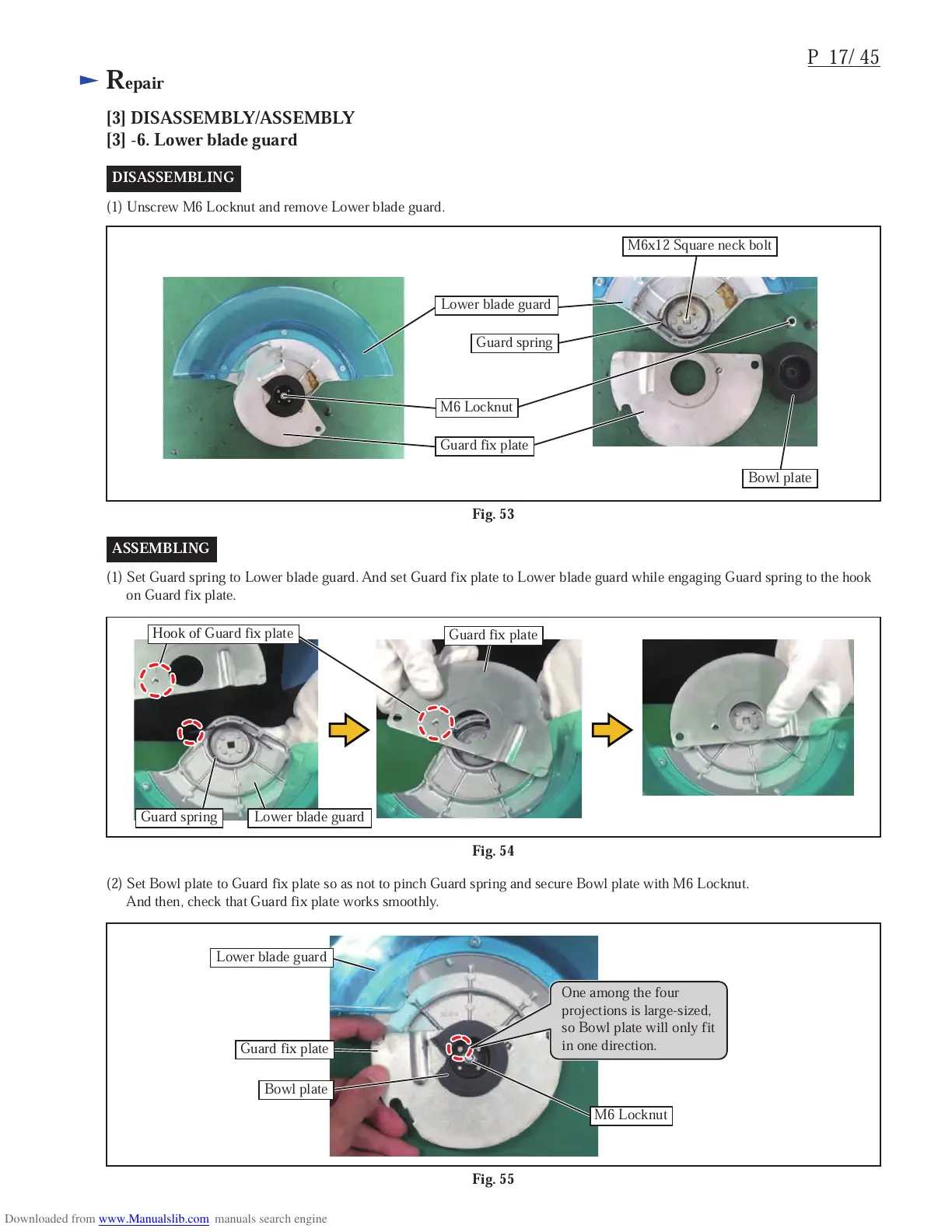

P 17/ 45
Repair
[3] DISASSEMBLY/ASSEMBLY
[3] -6. Lower blade guard
Fig. 53
(1) Unscrew M6 Locknut and remove Lower blade guard.
DISASSEMBLING
Fig. 54
ASSEMBLING
Fig. 55
(1) Set Guard spring to Lower blade guard. And set Guard fix plate to Lower blade guard while engaging Guard spring to the hook
on Guard fix plate.
(2) Set Bowl plate to Guard fix plate so as not to pinch Guard spring and secure Bowl plate with M6 Locknut.
And then, check that Guard fix plate works smoothly.
M6 Locknut
Lower blade guard
Guard spring
Guard fix plate
Bowl plate
Guard spring
M6x12 Square neck bolt
Lower blade guard
Guard fix plate
Lower blade guard
Bowl plate
Guard fix plate
Hook of Guard fix plate
M6 Locknut
One among the four
projections is large-sized,
so Bowl plate will only fit
in one direction.

Makita LS1017L Specifications

General

Blade Diameter	260 mm
Laser Guide	Yes
Voltage	240 V
Length	825 mm
Width	536 mm
Height	633 mm
Mitre Capacity	0° - 52°
No Load Speed	4300 rpm
Max. Cutting Capacity at 45°	68 x 197 mm
Input Wattage	1, 430 W
Power Input	1, 430 W
