Makita LS1017L Technical Information

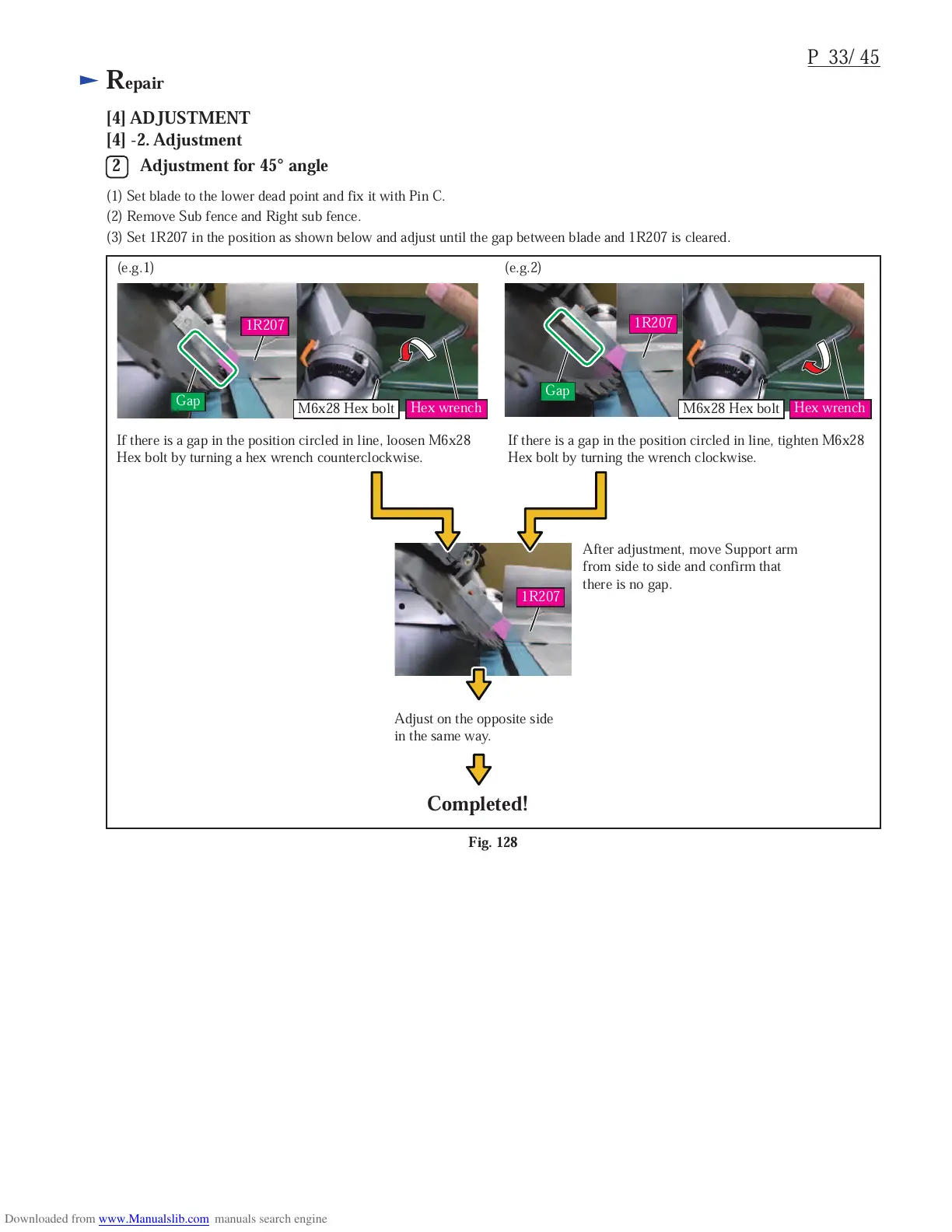

P 33/ 45
Repair
[4] ADJUSTMENT
[4] -2. Adjustment
If there is a gap in the position circled in line, loosen M6x28
Hex bolt by turning a hex wrench counterclockwise.
If there is a gap in the position circled in line, tighten M6x28
Hex bolt by turning the wrench clockwise.
After adjustment, move Support arm
from side to side and confirm that
there is no gap.
Adjust on the opposite side
in the same way.
(1) Set blade to the lower dead point and fix it with Pin C.
(2) Remove Sub fence and Right sub fence.
(3) Set 1R207 in the position as shown below and adjust until the gap between blade and 1R207 is cleared.
(e.g.1) (e.g.2)
Fig. 128
Adjustment for 45° angle
2
Completed!
M6x28 Hex bolt M6x28 Hex bolt
Hex wrench Hex wrench
Gap
Gap
1R207
1R207
1R207

Makita LS1017L Specifications

General

Blade Diameter	260 mm
Laser Guide	Yes
Voltage	240 V
Length	825 mm
Width	536 mm
Height	633 mm
Mitre Capacity	0° - 52°
No Load Speed	4300 rpm
Max. Cutting Capacity at 45°	68 x 197 mm
Input Wattage	1, 430 W
Power Input	1, 430 W
