Makita LS1017L - Circuit Diagram, Wiring Diagram; 0-240 V Area Where Radio Interference Suppression Is Required; Circuit Diagram

Stator Assembly
<View from the Carbon brush side>
Fig. 137
P 37/ 45
Repair

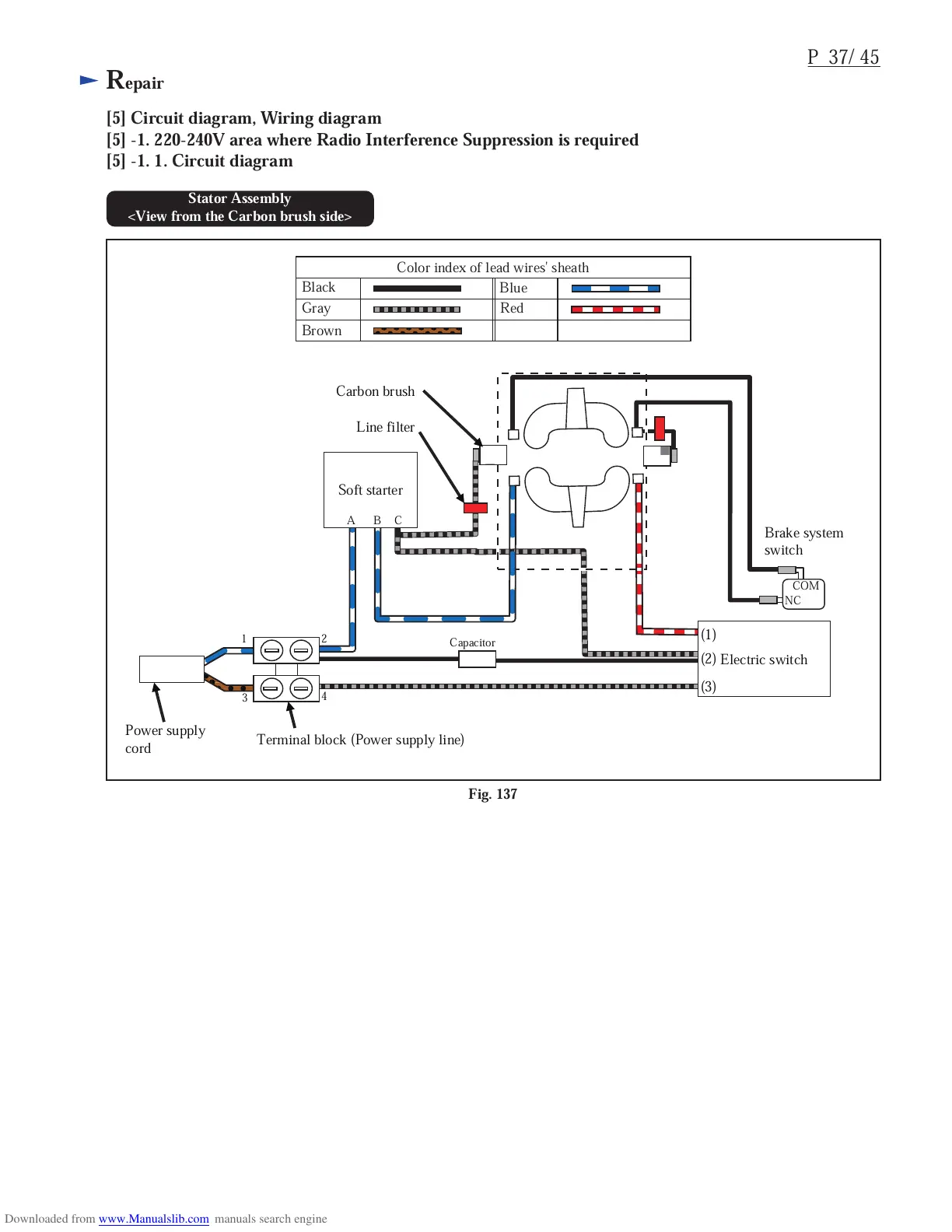

[5] Circuit diagram, Wiring diagram
[5] -1. 220-240V area where Radio Interference Suppression is required
[5] -1. 1. Circuit diagram
Brake system
switch
NC
COM
1 2
3
4
Power supply
cord
Carbon brush
Capacitor
Terminal block (Power supply line)
Line filter
A C
B
Soft starter
Electric switch
(3)
(1)
(2)
Brown
Blue
Gray
Color index of lead wires' sheath
Black
Red
