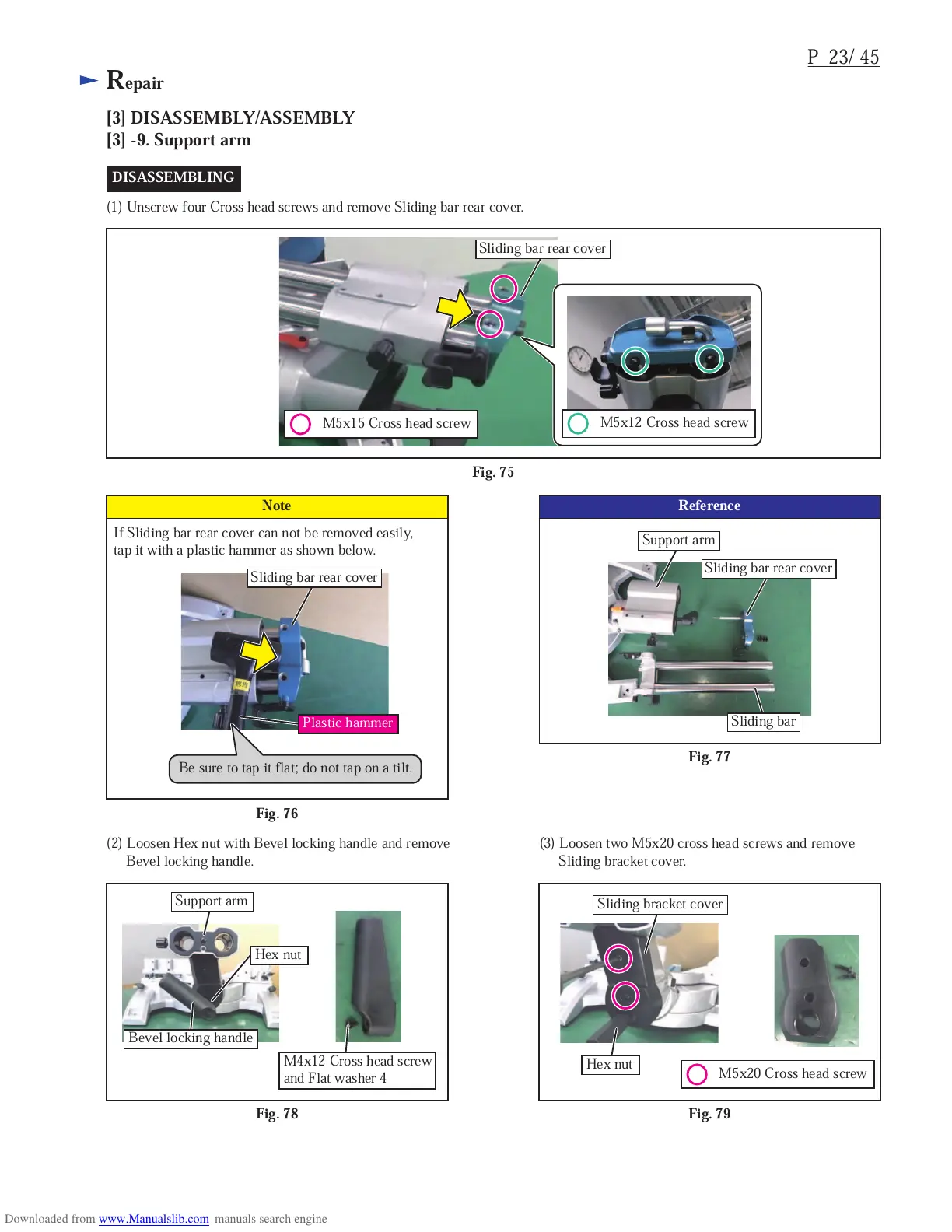

P 23/ 45
Repair
[3] DISASSEMBLY/ASSEMBLY
[3] -9. Support arm
If Sliding bar rear cover can not be removed easily,
tap it with a plastic hammer as shown below.
Note
Fig. 76
Fig. 77
Reference
DISASSEMBLING
Fig. 75
(2) Loosen Hex nut with Bevel locking handle and remove
Bevel locking handle.
(3) Loosen two M5x20 cross head screws and remove
Sliding bracket cover.
Fig. 79
Fig. 78
(1) Unscrew four Cross head screws and remove Sliding bar rear cover.
Bevel locking handle
Hex nut
Sliding bracket cover
Hex nut
Sliding bar rear cover
Sliding bar rear cover
Support arm
Support arm
Sliding bar rear cover
Be sure to tap it flat; do not tap on a tilt.
Sliding bar
Plastic hammer
M5x15 Cross head screw
M5x20 Cross head screw
M5x12 Cross head screw
M4x12 Cross head screw
and Flat washer 4
