Makita LS1017L Technical Information

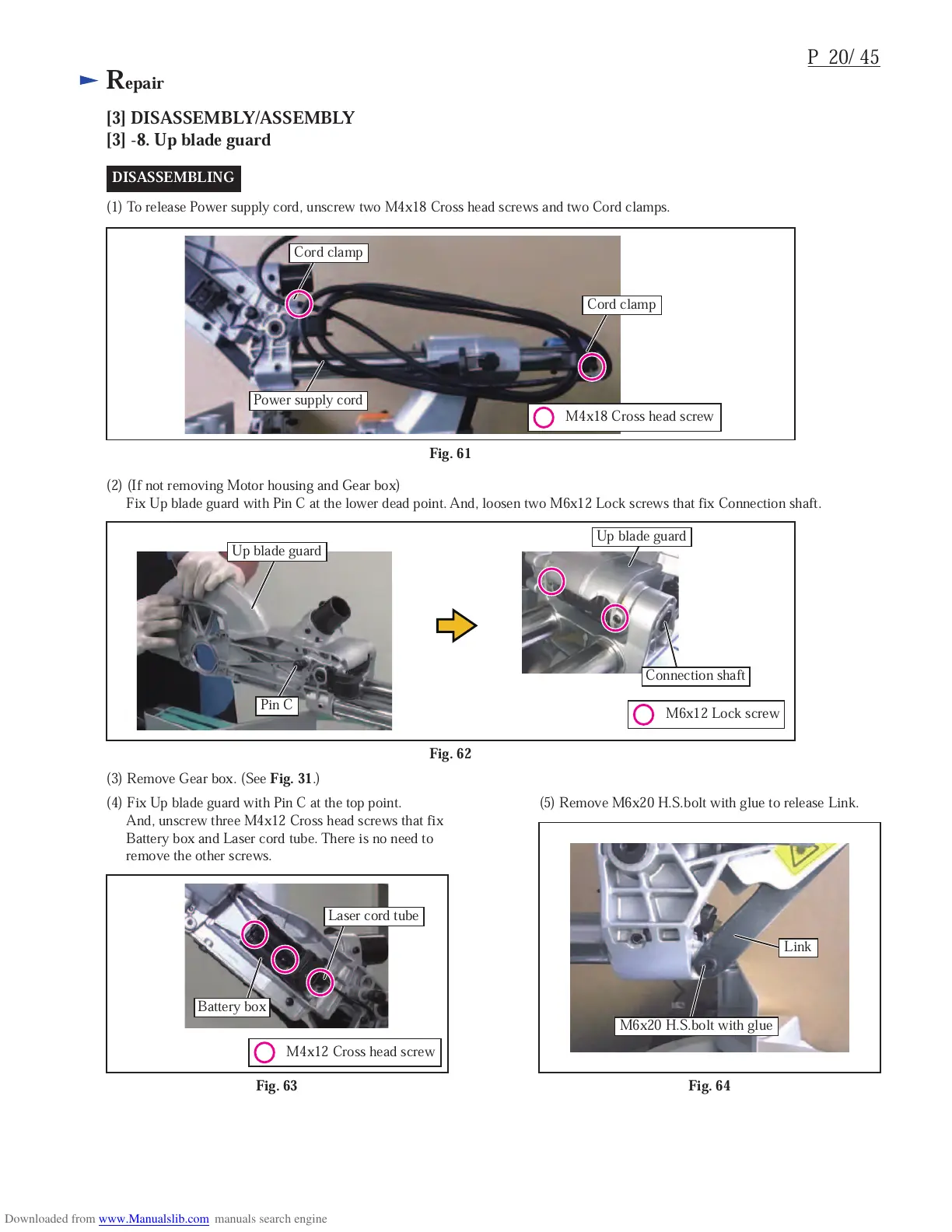

P 20/ 45
Repair
[3] DISASSEMBLY/ASSEMBLY
[3] -8. Up blade guard
Fig. 61
(1) To release Power supply cord, unscrew two M4x18 Cross head screws and two Cord clamps.
M4x18 Cross head screw
Power supply cord
Cord clamp
Cord clamp
M6x12 Lock screw
M4x12 Cross head screw
Fig. 62
(2) (If not removing Motor housing and Gear box)
Fix Up blade guard with Pin C at the lower dead point. And, loosen two M6x12 Lock screws that fix Connection shaft.
(3) Remove Gear box. (See Fig. 31 .)
Up blade guard
Up blade guard
Pin C
Connection shaft
(4) Fix Up blade guard with Pin C at the top point.
And, unscrew three M4x12 Cross head screws that fix
Battery box and Laser cord tube. There is no need to
remove the other screws.
(5) Remove M6x20 H.S.bolt with glue to release Link.
Fig. 64Fig. 63
Battery box
M6x20 H.S.bolt with glue
Link
Laser cord tube
DISASSEMBLING

Makita LS1017L Specifications

General

Blade Diameter	260 mm
Laser Guide	Yes
Voltage	240 V
Length	825 mm
Width	536 mm
Height	633 mm
Mitre Capacity	0° - 52°
No Load Speed	4300 rpm
Max. Cutting Capacity at 45°	68 x 197 mm
Input Wattage	1, 430 W
Power Input	1, 430 W
