Makita LS1017L Technical Information

Stator Assembly
<View from the Carbon brush side>
Fig. 146
P 40/ 45
Repair

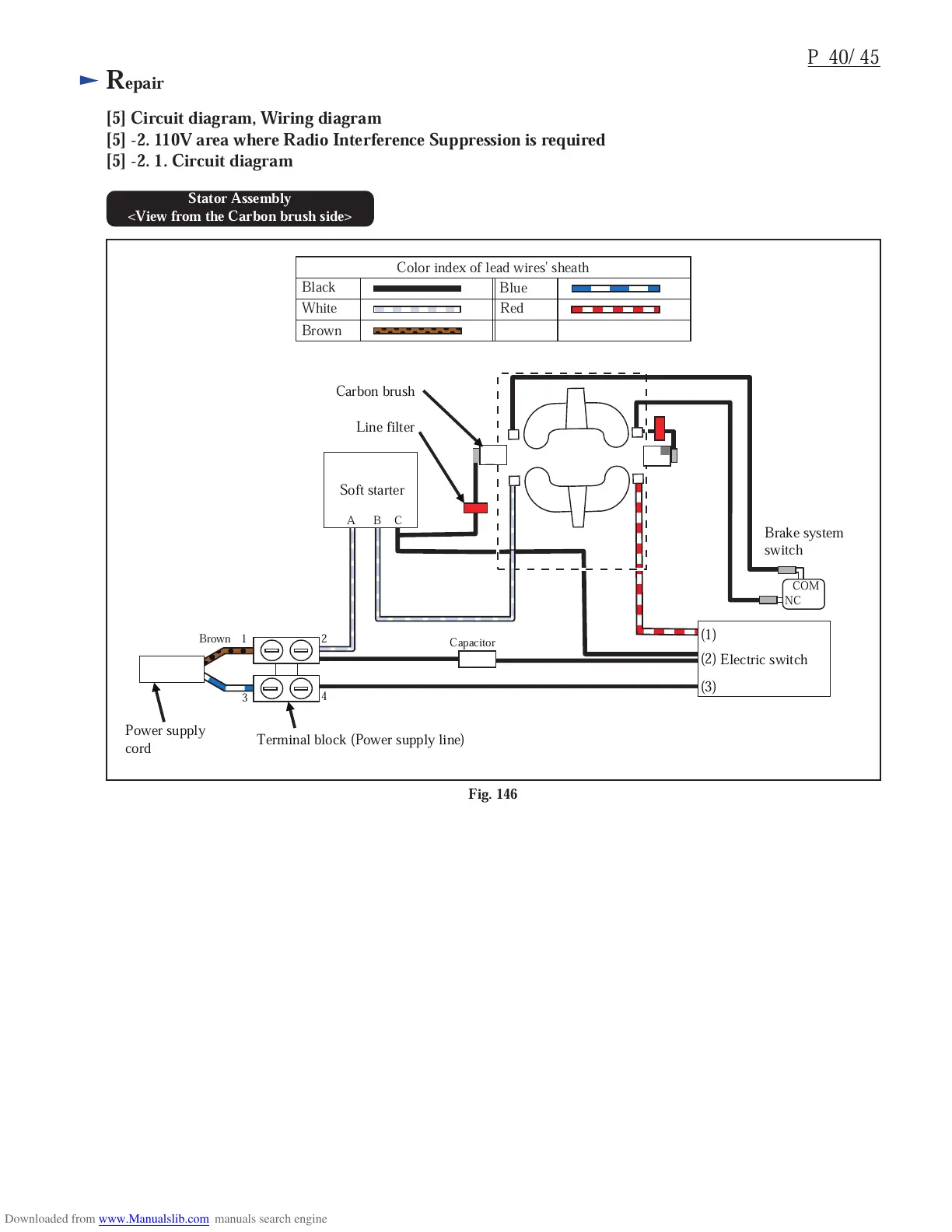

[5] Circuit diagram, Wiring diagram
[5] -2. 110V area where Radio Interference Suppression is required
[5] -2. 1. Circuit diagram
Brown
Blue
White
Color index of lead wires' sheath
Black
Red
Brake system
switch
Brown
NC
COM
1 2
3
4
Power supply
cord
Carbon brush
Capacitor
Terminal block (Power supply line)
Line filter
A C
B
Soft starter
(3)
(1)
(2)
Electric switch

Makita LS1017L Specifications

General

Blade Diameter	260 mm
Laser Guide	Yes
Voltage	240 V
Length	825 mm
Width	536 mm
Height	633 mm
Mitre Capacity	0° - 52°
No Load Speed	4300 rpm
Max. Cutting Capacity at 45°	68 x 197 mm
Input Wattage	1, 430 W
Power Input	1, 430 W
