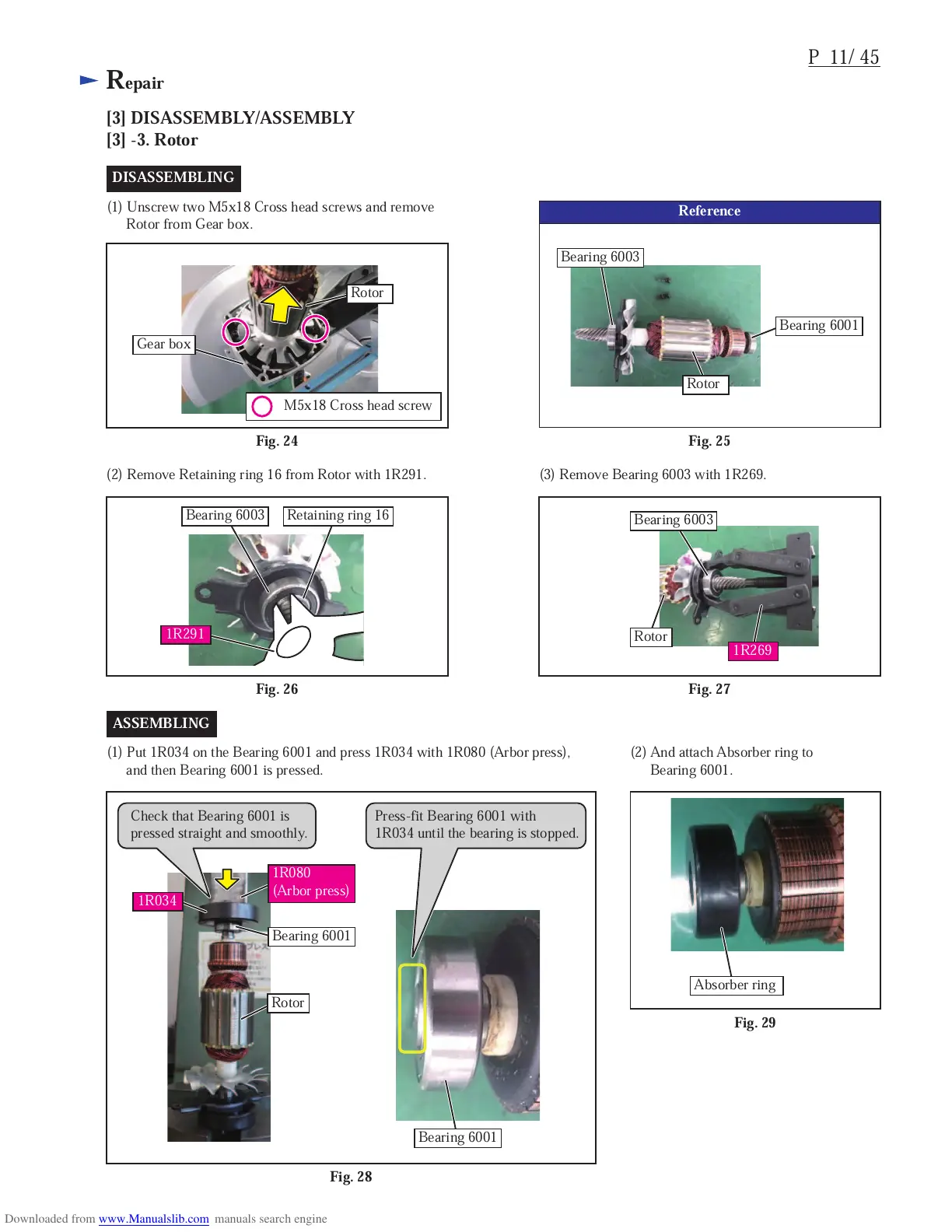

Makita LS1017L Technical Information

P 11/ 45
Repair
[3] DISASSEMBLY/ASSEMBLY
[3] -3. Rotor
DISASSEMBLING
Fig. 28
ASSEMBLING
Check that Bearing 6001 is
pressed straight and smoothly.
Press-fit Bearing 6001 with
1R034 until the bearing is stopped.
(1) Put 1R034 on the Bearing 6001 and press 1R034 with 1R080 (Arbor press),
and then Bearing 6001 is pressed.
(1) Unscrew two M5x18 Cross head screws and remove
Rotor from Gear box.
(2) And attach Absorber ring to
Bearing 6001.
M5x18 Cross head screw
Gear box
Retaining ring 16
Rotor
Bearing 6003
Bearing 6003
Rotor
Bearing 6001
Bearing 6003
Rotor
1R269
Rotor
Bearing 6001
Bearing 6001
Absorber ring
1R080
(Arbor press)
1R034
Reference
Fig. 26
(2) Remove Retaining ring 16 from Rotor with 1R291.
Fig. 27
(3) Remove Bearing 6003 with 1R269.
Fig. 29
Fig. 24 Fig. 25
1R291

Makita LS1017L Specifications

General

Blade Diameter	260 mm
Laser Guide	Yes
Voltage	240 V
Length	825 mm
Width	536 mm
Height	633 mm
Mitre Capacity	0° - 52°
No Load Speed	4300 rpm
Max. Cutting Capacity at 45°	68 x 197 mm
Input Wattage	1, 430 W
Power Input	1, 430 W
