Makita LS1017L Technical Information

P 10/ 45
Repair
[3] DISASSEMBLY/ASSEMBLY
[3] -2. Starter (cont.)

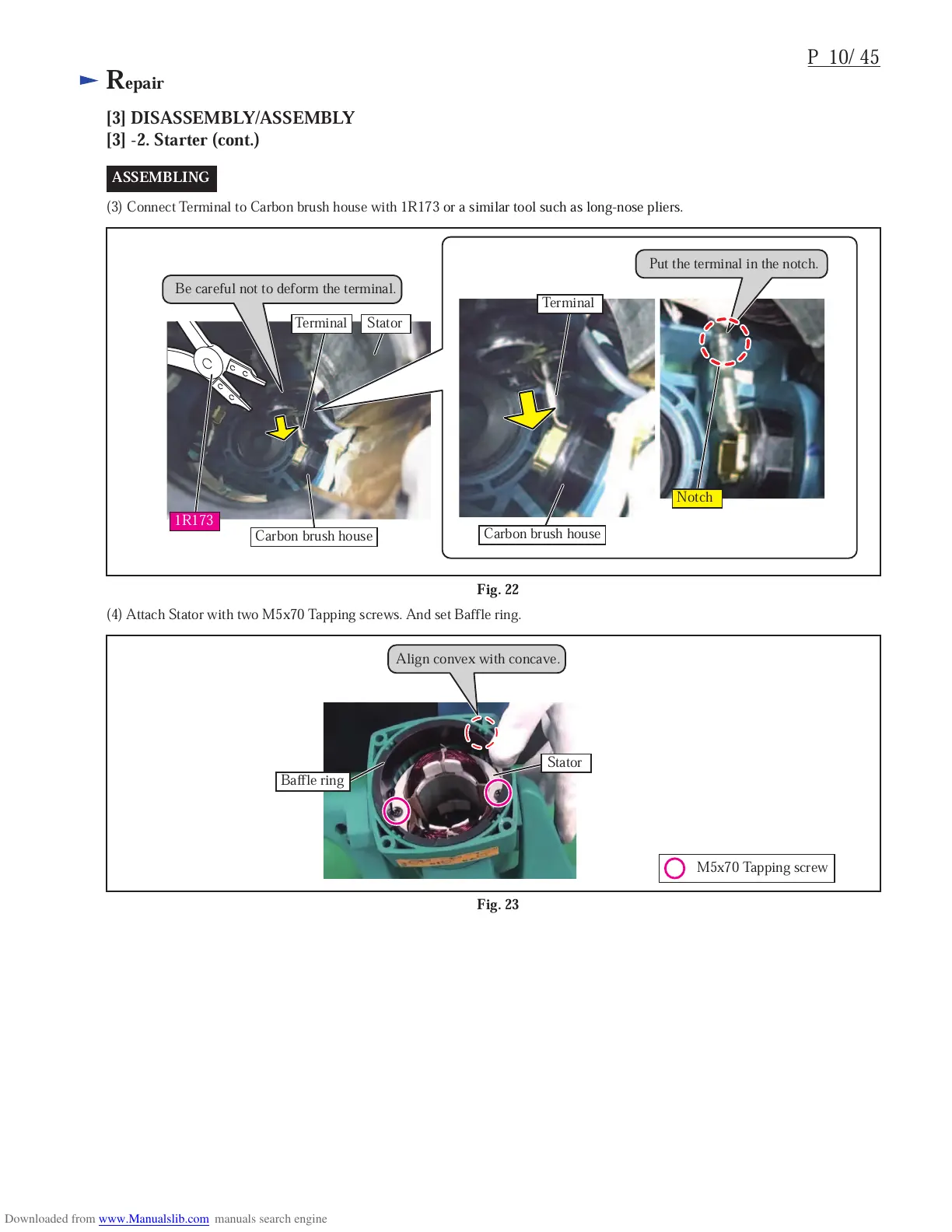

Fig. 22
(3) Connect Terminal to Carbon brush house with 1R173 or a similar tool such as long-nose pliers.
Fig. 23
(4) Attach Stator with two M5x70 Tapping screws. And set Baffle ring.
StatorTerminal
Be careful not to deform the terminal.
Align convex with concave.
ASSEMBLING
Carbon brush house
Carbon brush house
Stator
Baffle ring
Terminal
Put the terminal in the notch.
M5x70 Tapping screw
1R173
Notch

Makita LS1017L Specifications

General

Blade Diameter	260 mm
Laser Guide	Yes
Voltage	240 V
Length	825 mm
Width	536 mm
Height	633 mm
Mitre Capacity	0° - 52°
No Load Speed	4300 rpm
Max. Cutting Capacity at 45°	68 x 197 mm
Input Wattage	1, 430 W
Power Input	1, 430 W
