Makita LS1017L Technical Information

Gear box

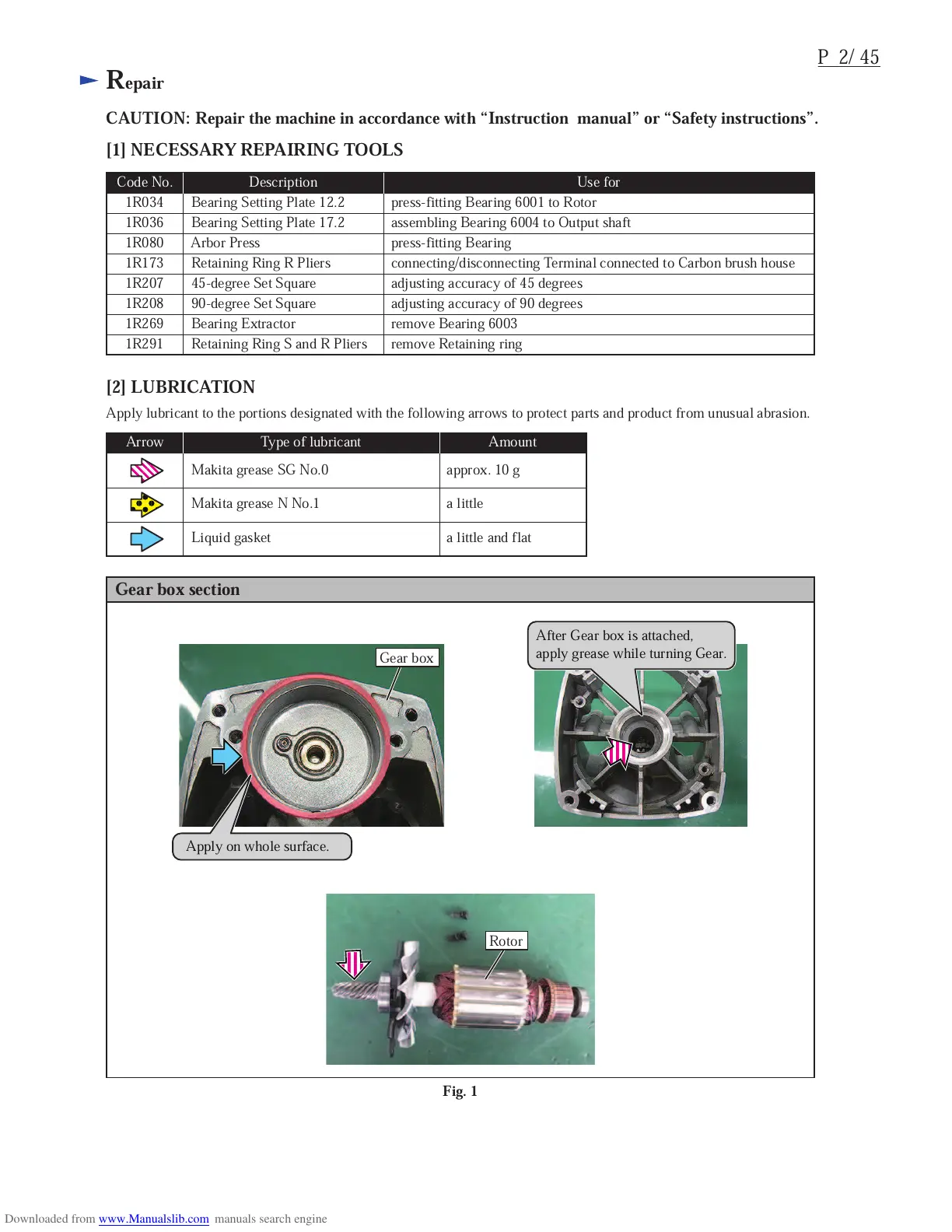

P 2/ 45
Repair
[1] NECESSARY REPAIRING TOOLS
CAUTION: Repair the machine in accordance with “Instruction manual” or “Safety instructions”.
[2] LUBRICATION
Apply lubricant to the portions designated with the following arrows to protect parts and product from unusual abrasion.
Code No. Description Use for
1R034
1R036
1R080
Bearing Setting Plate 12.2 press-fitting Bearing 6001 to Rotor
assembling Bearing 6004 to Output shaft
1R173 Retaining Ring R Pliers connecting/disconnecting Terminal connected to Carbon brush house
press-fitting Bearing
Bearing Setting Plate 17.2
Arbor Press
Fig. 1
Gear box section
1R207 45-degree Set Square adjusting accuracy of 45 degrees
1R208 90-degree Set Square adjusting accuracy of 90 degrees
1R269 Bearing Extractor remove Bearing 6003
1R291 Retaining Ring S and R Pliers remove Retaining ring
Arrow Type of lubricant Amount
Makita grease SG No.0 approx. 10 g
Makita grease N No.1 a little
Liquid gasket a little and flat
Rotor
After Gear box is attached,
apply grease while turning Gear.
Apply on whole surface.

Makita LS1017L Specifications

General

Blade Diameter	260 mm
Laser Guide	Yes
Voltage	240 V
Length	825 mm
Width	536 mm
Height	633 mm
Mitre Capacity	0° - 52°
No Load Speed	4300 rpm
Max. Cutting Capacity at 45°	68 x 197 mm
Input Wattage	1, 430 W
Power Input	1, 430 W
