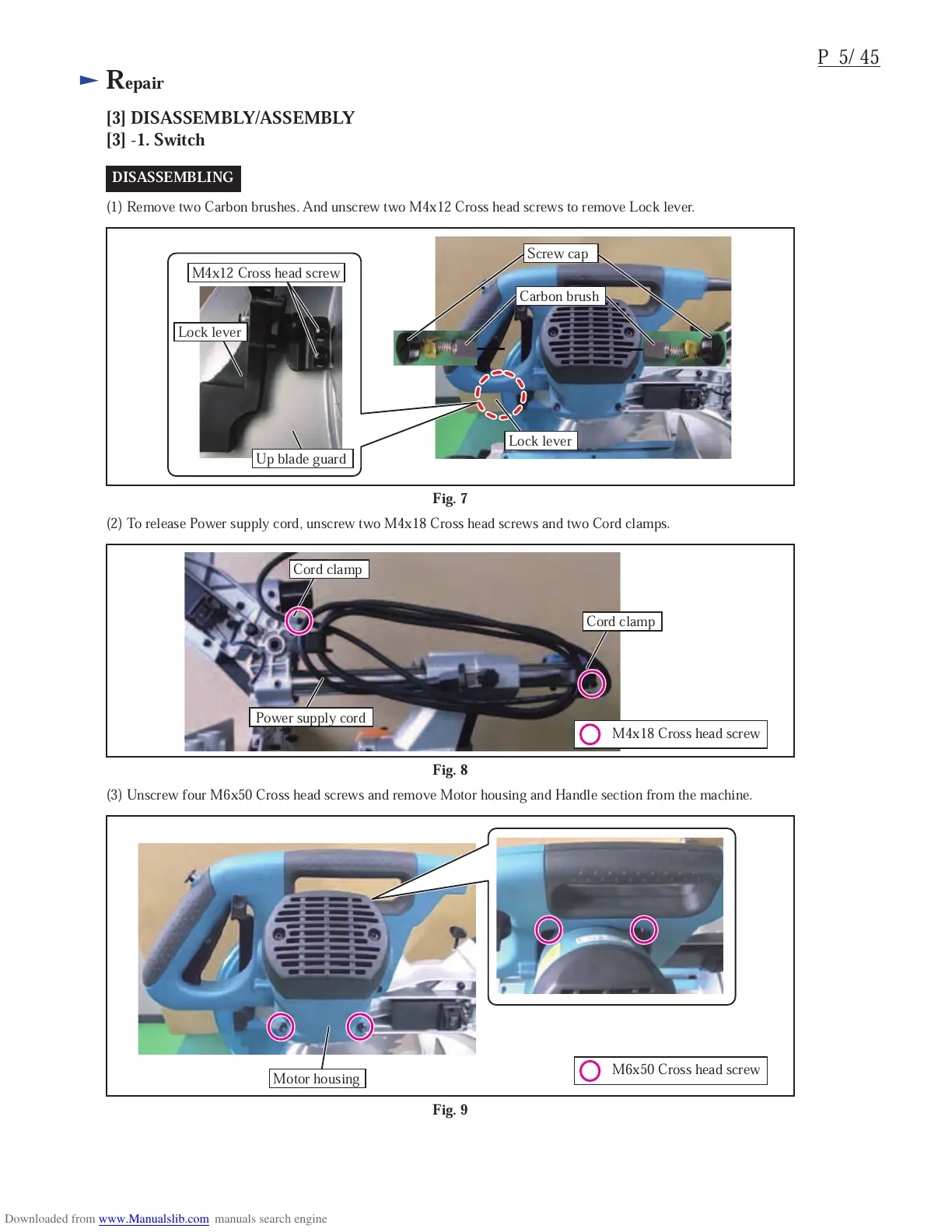

Makita LS1017L Technical Information

P 5/ 45
Repair
Fig. 7
[3] DISASSEMBLY/ASSEMBLY
[3] -1. Switch
DISASSEMBLING
(1) Remove two Carbon brushes. And unscrew two M4x12 Cross head screws to remove Lock lever.
Fig. 8
(2) To release Power supply cord, unscrew two M4x18 Cross head screws and two Cord clamps.
M4
Lock lever
Up blade guard
M4x12 Cross head screw
Screw cap
Carbon brush
Lock lever
Fig. 9
(3) Unscrew four M6x50 Cross head screws and remove Motor housing and Handle section from the machine.
Motor housing
M4x18 Cross head screw
Power supply cord
Cord clamp
Cord clamp
M6x50 Cross head screw

Makita LS1017L Specifications

General

Blade Diameter	260 mm
Laser Guide	Yes
Voltage	240 V
Length	825 mm
Width	536 mm
Height	633 mm
Mitre Capacity	0° - 52°
No Load Speed	4300 rpm
Max. Cutting Capacity at 45°	68 x 197 mm
Input Wattage	1, 430 W
Power Input	1, 430 W
